S-Klima CompTrol - Connection Diagram and Digital Inputs

CompTrol Interface V4.0.x | Issue 21-05-2021 | 1000932 37
Program 2 – temperature setpoint denition with window contact function
13
12
1 2 3
4
98765
11
10
1415
16
17

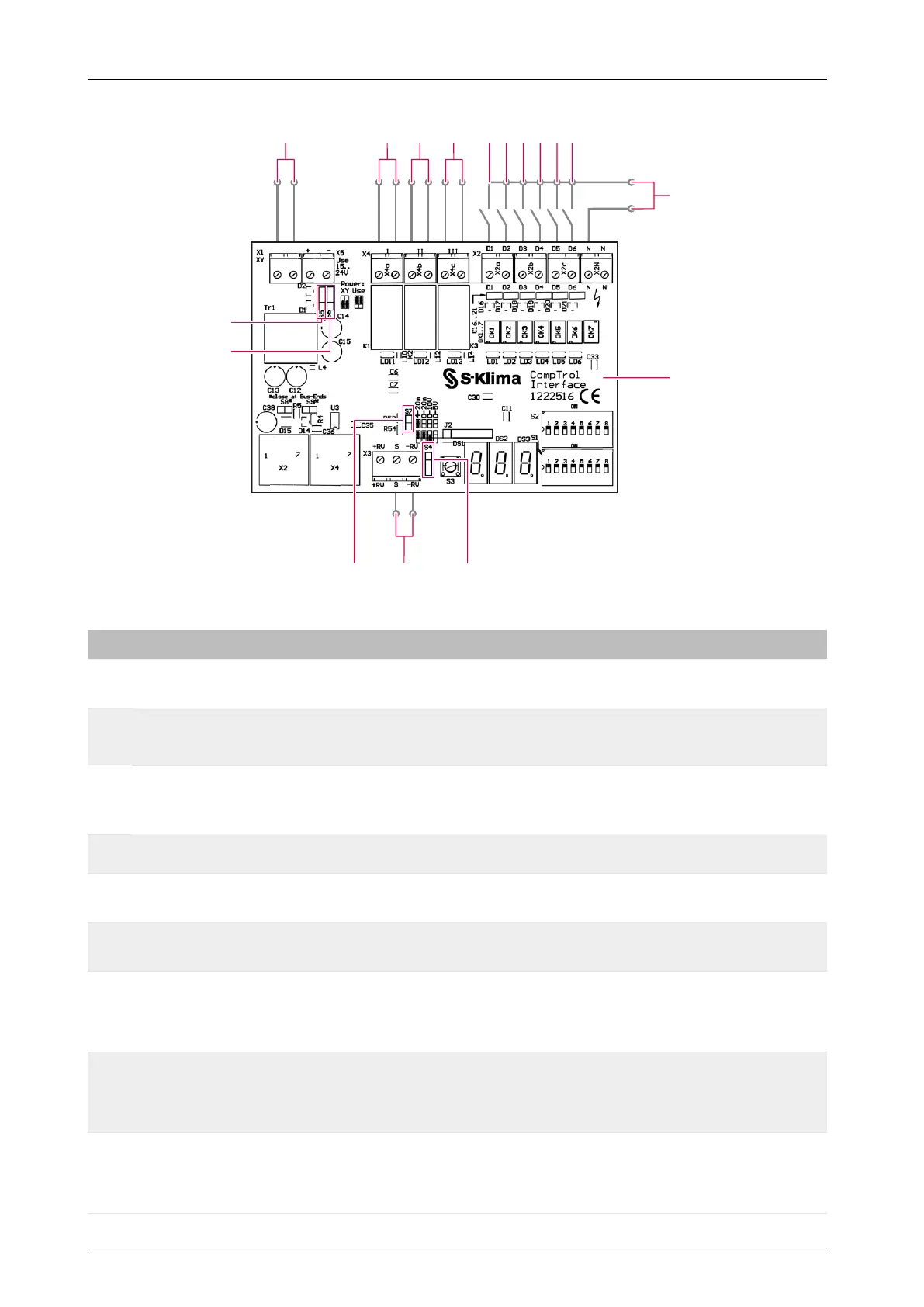

Figure 8: Connection diagram for program 2
No. Name No. Name
1 X/Y remote control bus 2
Digital outputs X4a-I
Alarm signal
3
Digital outputs X4b-II
(see “Table 22: Digital outputs in program 2”
on page 41)
4
Digital outputs X4c-III
Window contact signal
5
Digital input X2a-D1
Window contact signal
6
Digital input X2a-D2
Cooling mode; D2+D3 Fan mode
7
Digital input X2b-D3
Heating mode; D2+D3 Fan mode
8
Digital input X2b-D4
Evaluate analog input
9
Digital input X2c-D5
Fan speed F1; D5+D6 Fan speed F3
10
Digital input X2c-D6
Fan speed F2; D5+D6 Fan speed F3
11 Input voltage 24-230 V AC / 20-130 V DC 12 CompTrol Interface expansion module
13 Analog input X3-S, X3-(-RV) 14
Pin header S4 for setting the analog signal
type (analog input X3)
(see “Table 6: Analog signal type” on
page 19)
15
Pin header S7 for setting the analog signal
type (analog input X3)
(see “Table 6: Analog signal type” on
page 19)
16
Pin header S6 for setting the electrical
supply
(see “Table 5: Type of electrical supply” on
page 18)
17
Pin header S5 for setting the electrical
supply
(see “Table 5: Type of electrical supply” on
page 18)
- -
