7. Electrical installation
Installer reference guide / Mono tank integrated type 87

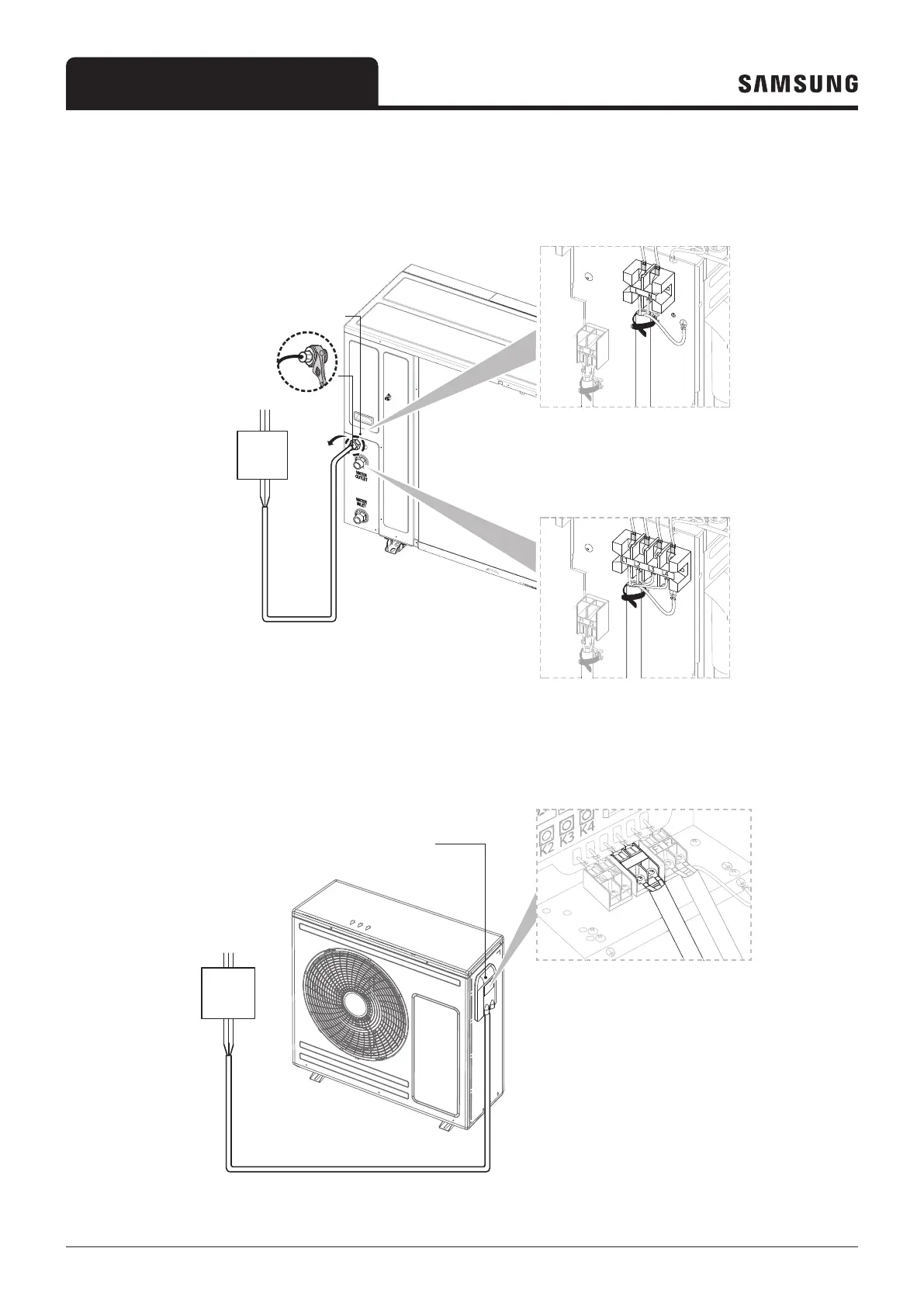

Route the cable through the frame
• Connect the wires to the terminal block and fix the cable with the cable tie.
※
AE080/120/140BXYD**
(R)
(S)
(T)
(N)
• 1 phase
• 3 phase
Cable
tie
Cable
tie
Main power cable
Main power cable
Power Supply
MCB+ELB
or
RCBO(ELCB)
Electrical component box
※
AE050RXYDEG
F1
F2
L
N
1(L)
2(N)
• 1 phase
Main power cable
Electrical component box
Power Supply
MCB+ELB
or
RCBO(ELCB)
