7. Electrical installation
Installer reference guide / Mono tank integrated type 88
※

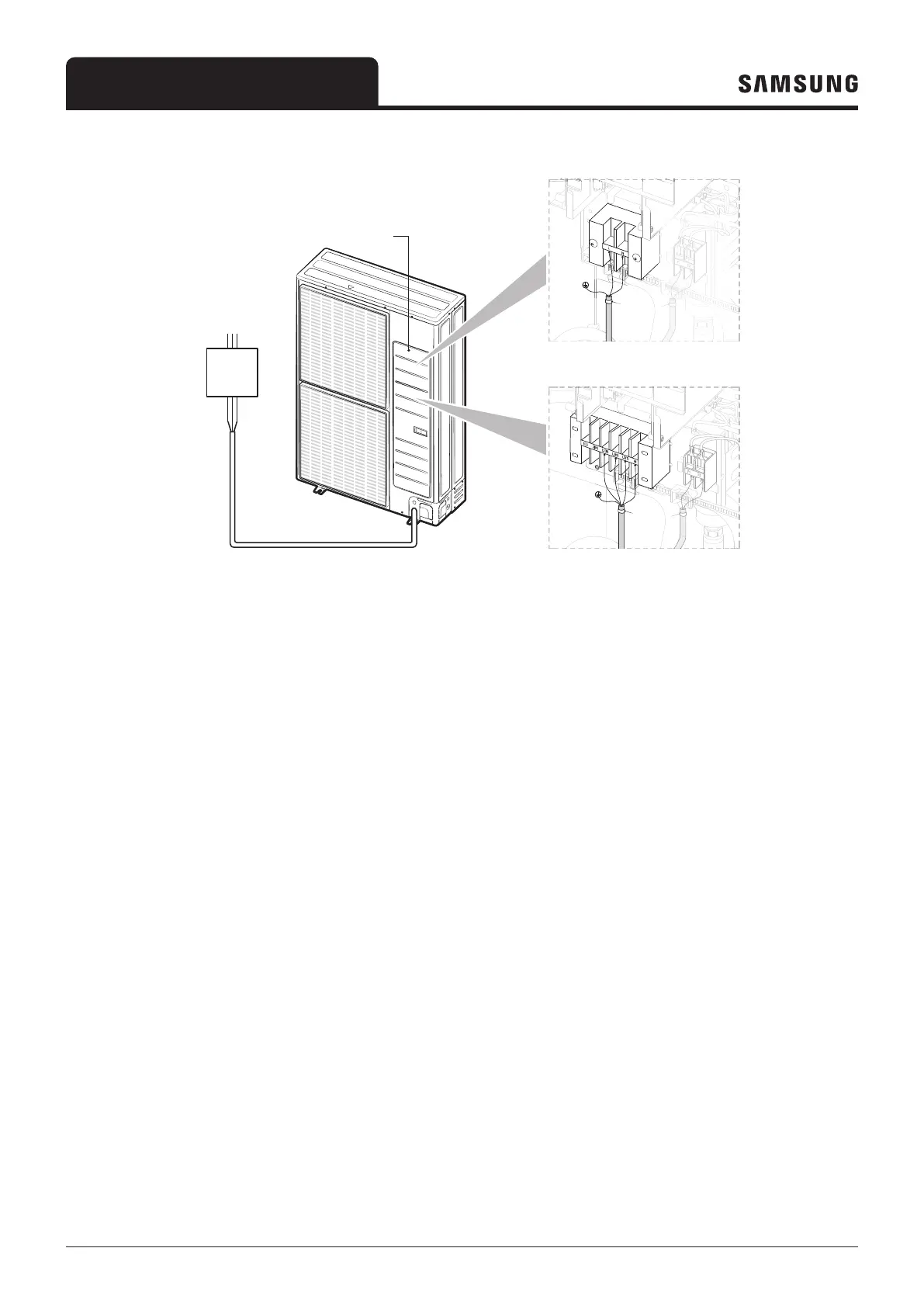

AE80/120/160RXYD**
• 1 phase
• 3 phase
Cable
tie
Cable
tie
Main power cable
Main power cable
Power Supply
MCB+ELB
or
RCBO(ELCB)
Electrical component box
The appearance of the unit may be different from the picture depending on the model.
• When installing electrical wiring: tension on the cable(s) must be avoided.
• Earth wire for the indoor unit and outdoor unit cables must be clamped to a suitable ring terminal clamp (not supplied)
• For the power cable, use the grade H07RN-F or H05RN-F materials.
• Power supply cords of parts of appliances for outdoor unit use shall not be thinner than polychloroprene sheathed
flexible cord. (Code designation IEC:60245 IEC 57 / CENELEC: H05RN-F or IEC:60245 IEC 66 / CENELEC: H07RN-F)
