7. Electrical installation
Installer reference guide / Mono tank integrated type 95

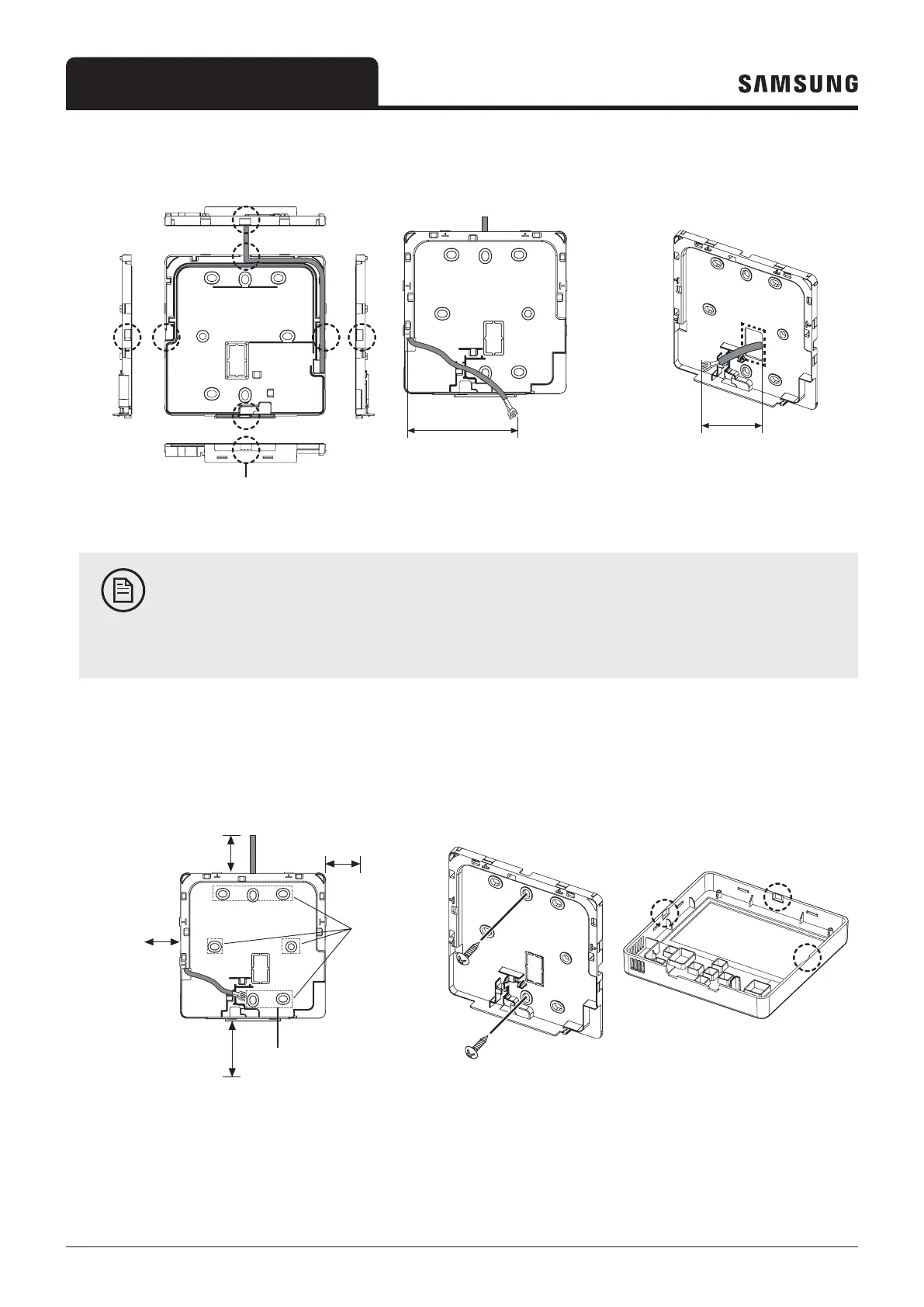

2 Arrange the power cable and the communication cable so that they fit in the housing along the edges of the rear
cover.
Area A
<When the cable is not concealed> <When the cable is concealed>
8 cm
8 cm
NOTE
• When connecting the communication cable to the bottom of the Wired Remote Controller, first cut off
the area A.
3 Using two or more screws, firmly affix the rear cover of the remote controller to the wall, and then cut off the grooves
of the front covers for communication and power cables, making sure these cables have reasonable length.
space of upper side, left side, right side, and 50 mm
space of bottom side.
10 mm or more
10 mm or more
50 mm or more
Screw hole
Rear cover
10 mm or more
To Next Page
