2.
Product
Specications
2.2.4.5.
Drive
Unit
ProXpress
M332x/M382x/M402x
series
has
2
drive
units
that
is
assembled
to
the
right
side
of
the
machine.
The
main
drive
unit
consists
of
a
BLDC
motor
,
a
clutch,
various
gears
for
OPC,
fuser
,
exit,
feed
etc.
The
feed
drive
unit
consists
of
2
gears
for
MP
,
feed.

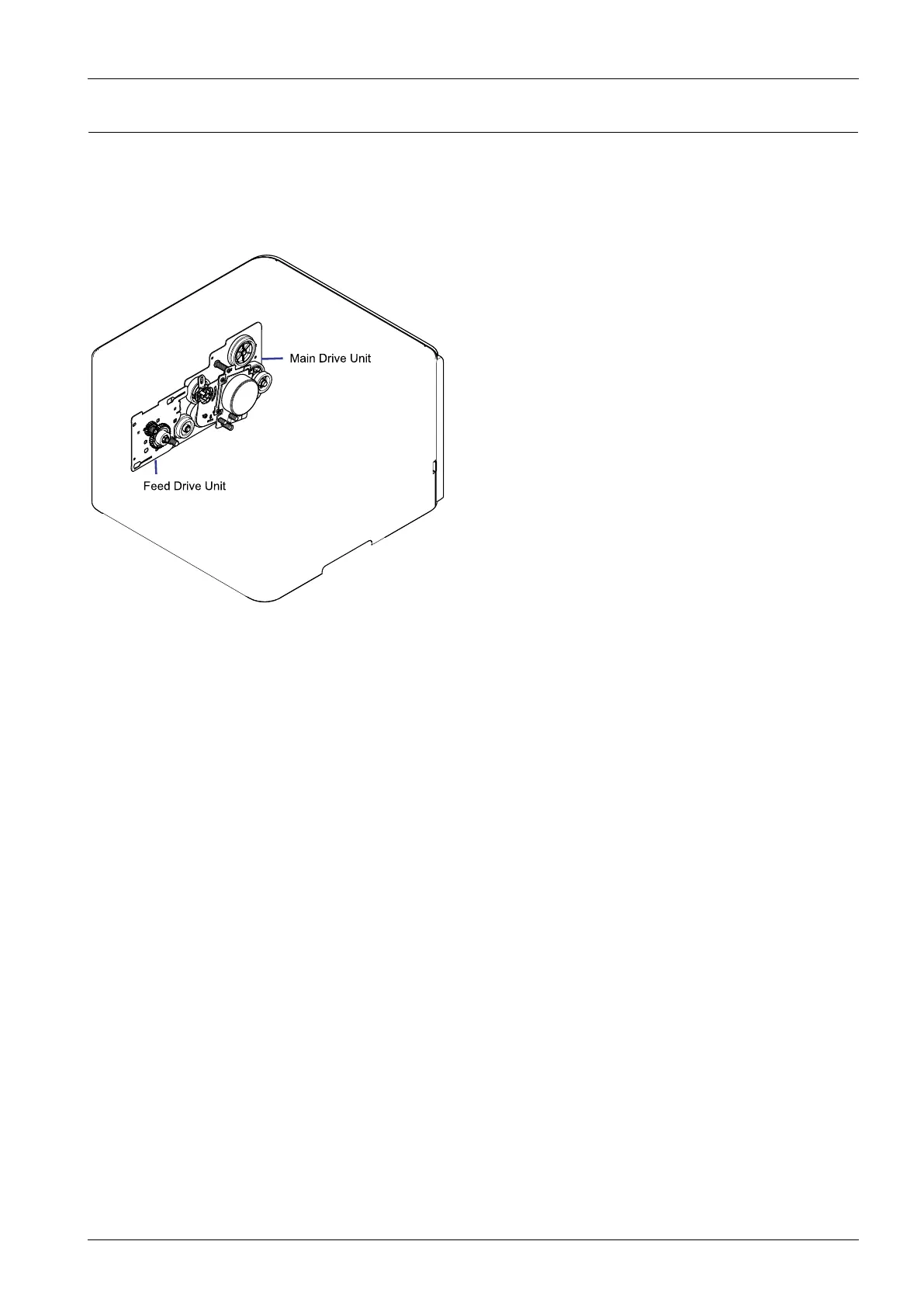

Main Drive Unit
Feed Drive Unit
