2.ProductSpecications

2.2.5.1.MainController(M332x_M382x_M402xND)

ProXpressM332x/M382x/M402xNDseriesmaincontrolleriscomposedwithbelowcomponents.

•A1500:Togeneratetheprintablevideodataandcontrolengine/EmbeddedUSB2.0device

•DDR3SODIMM:systemmemory

-M332xseries/M382xseries:128MB

-M402xND:256MB

•ExternalDDR3SODIMM:512MB(NotsupplyforM3820D/3825D)

•EthernetPHY:Networkprinting

•NANDFlash:Programmemory(128MB)

TheMainControllermanagesanElectro-photographysystem,controlstheVideoDataofprintingimagesfromMainBoard

toLSU,provideshigh-voltagesandPWMs,adjuststemperatureinthefusingsystem,readssensorsignalsandcontrols

SCFoption.

TheMaincontrolleralsocontrolsOPEandN/WPHY ,USBDevice,WirelessModule.

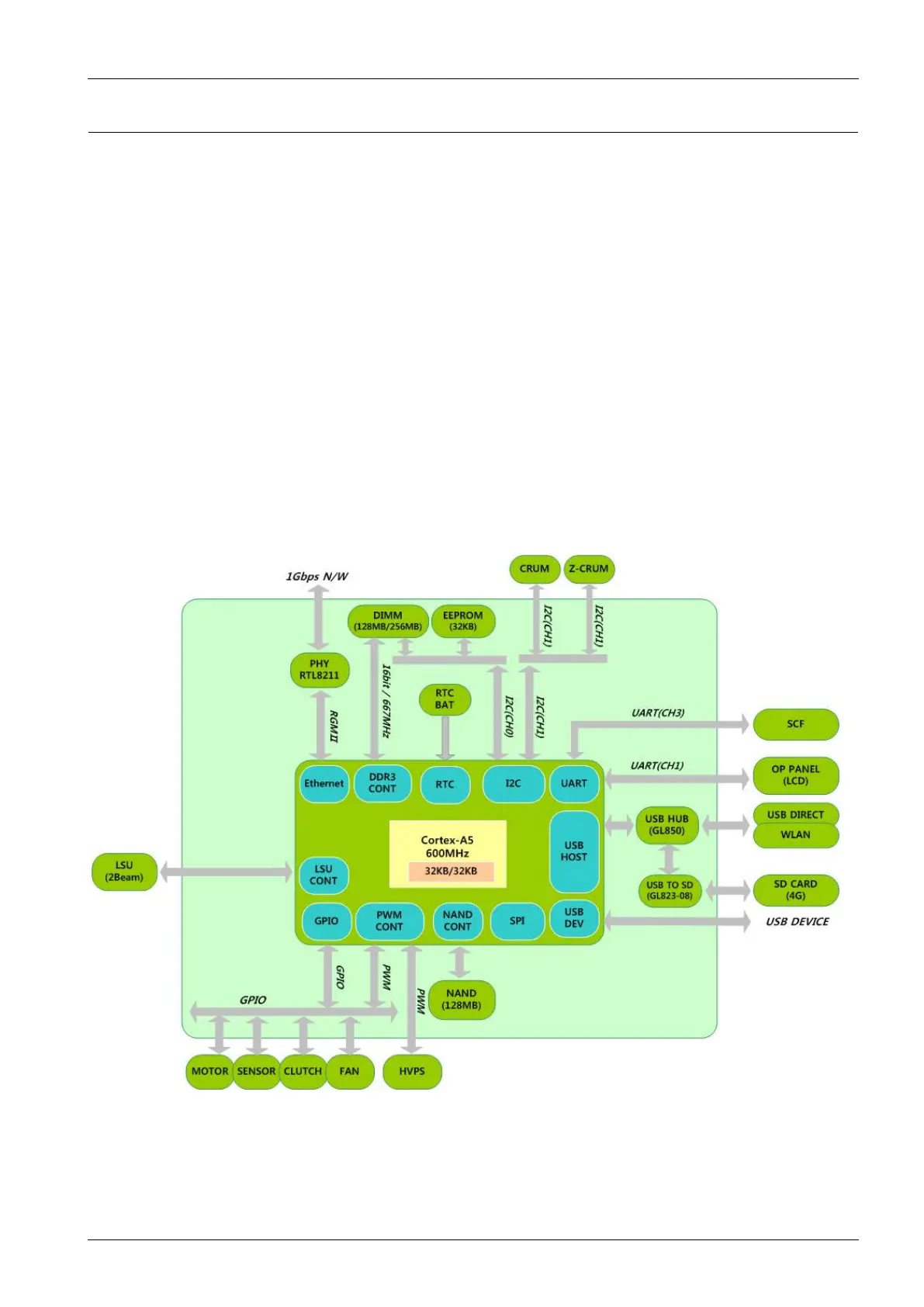

MainControllerDiagram
