3.
Disassembly
and
Reassembly
3.3.
Replacing
the
Main
SVC
parts

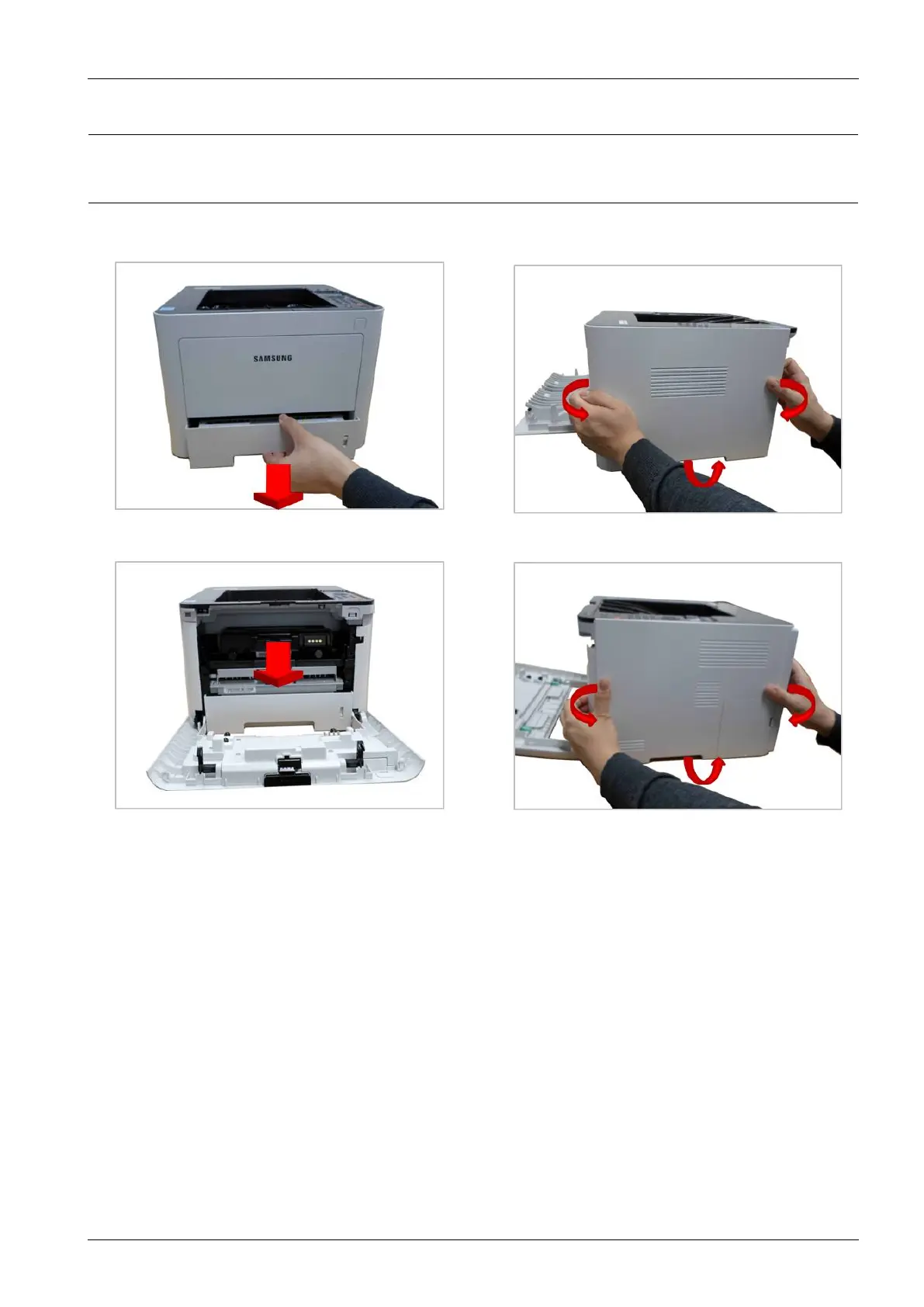

3.3.1.
Left
and
Right
Cover
1.
Remove
the
cassette.
2.
Open
the
front
cover
.
Remove
the
toner
cartridge.
3.
Remove
the
left
cover
by
releasing
hooks.
4.
Remove
the
right
cover
by
releasing
hooks.
Copyright©
1995-2016
SAMSUNG.
All
rights
reserved.
3-4
