2.ProductSpecications
2.2.5.2.MainController(M402xNX)
ProXpressM402xNXmaincontrolleriscomposedwithbelowcomponents.
•C4N:Togeneratetheprintablevideodataandcontrolengine/EmbeddedUSB2.0device.
•A1500:ZCRUMI/F
•DDR3SODIMM:1GBsystemmemory
•EthernetPHY:Networkprinting
•NANDFlash:Programmemory(512MB)
•MicroSDMemory:4GB
ThemaincontrollermanagesanElectro-photographysystem,controlstheVideoDataofprintingimagesfromMainBoard
toLSU,provideshigh-voltagesandPWMs,adjuststemperatureinthefusingsystem,readssensorsignalsandcontrols
SCFoption.
ThemaincontrolleralsocontrolsOPEandN/WPHY ,USBDevice.

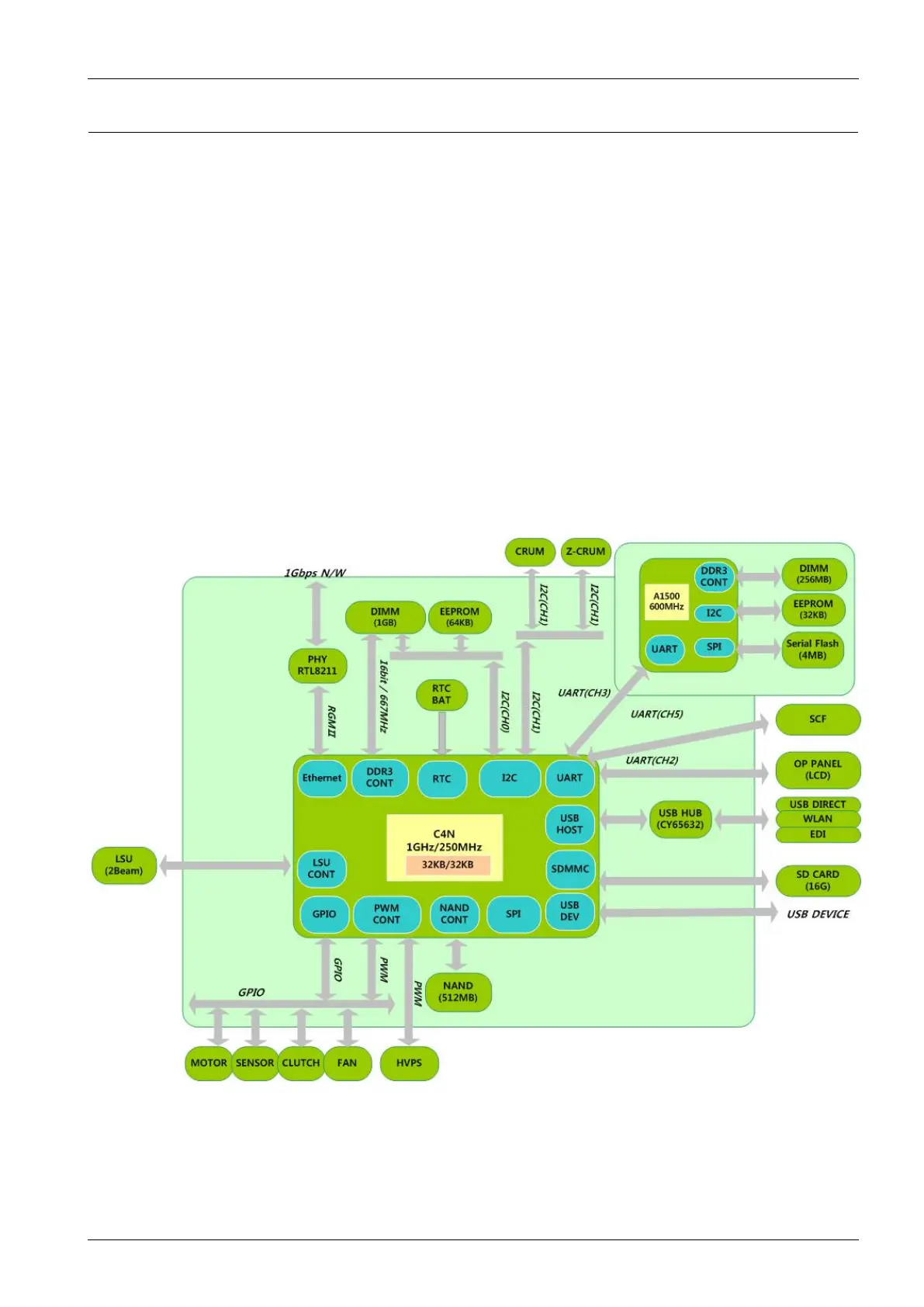

MainControllerDiagram
