3.
Disassembly
and
Reassembly

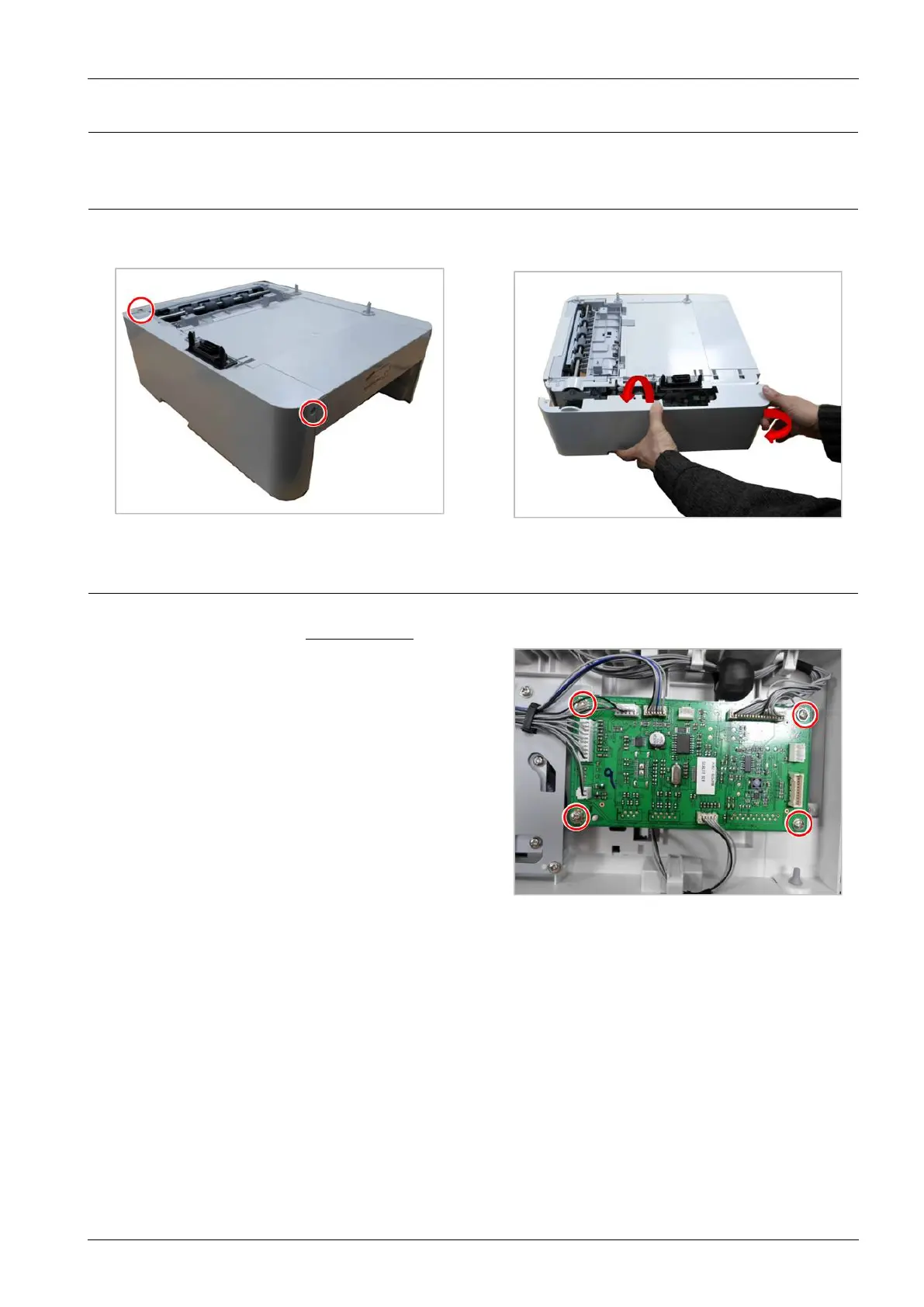

3.3.19.
SCF(Second
Cassette
Feeder)
Unit
3.3.19.1.
SCF
Right
Cover
1.
Remove
2
screws.
2.
Release
the
SCF
right
cover
.
3.3.19.2.
SCF
Main
Board
1.
Remove
the
SCF
right
cover
.
(
Refer
to
3.3.19.1
)
2.
Unplug
all
connectors
on
SCF
main
board.
3.
Remove
4
screws.
4.
Release
the
SCF
main
board.
Copyright©
1995-2016
SAMSUNG.
All
rights
reserved.
3-20
