3.DisassemblyandReassembly
3.3.8.FuserUnit
CAUTION
Thetemperaturegetshighinthevicinityofthefuserunit.
Whenreplacingit,youmaygetburned.Beforereplacing
it,makesurethatfuserunithascooled.

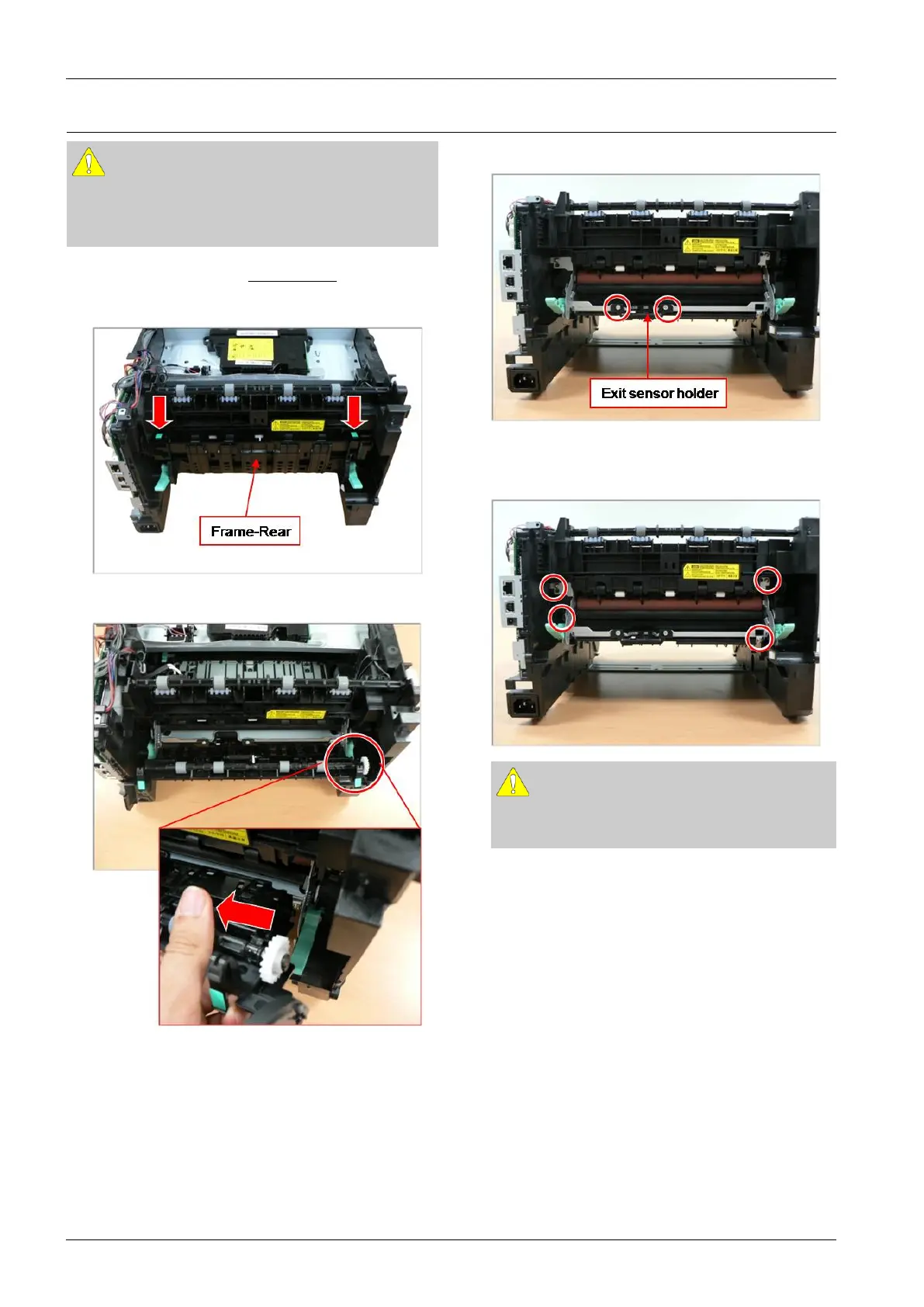

1.Removetherearcover.(Referto3.3.3)
2.OpentheFrame-Rearbypushingbothgreenpoints.
3.RemovetheFrame-Rearbyreleasingbothhooks.
4.Removetheexitsensorholderafterremoving2screws.
5.Remove4screws.
6.Releasethefuserunit.
CAUTION
Whenreassemblingthefuserunit,donotforgetto
tightenthesescrews.
