3.
Disassembly
and
Reassembly

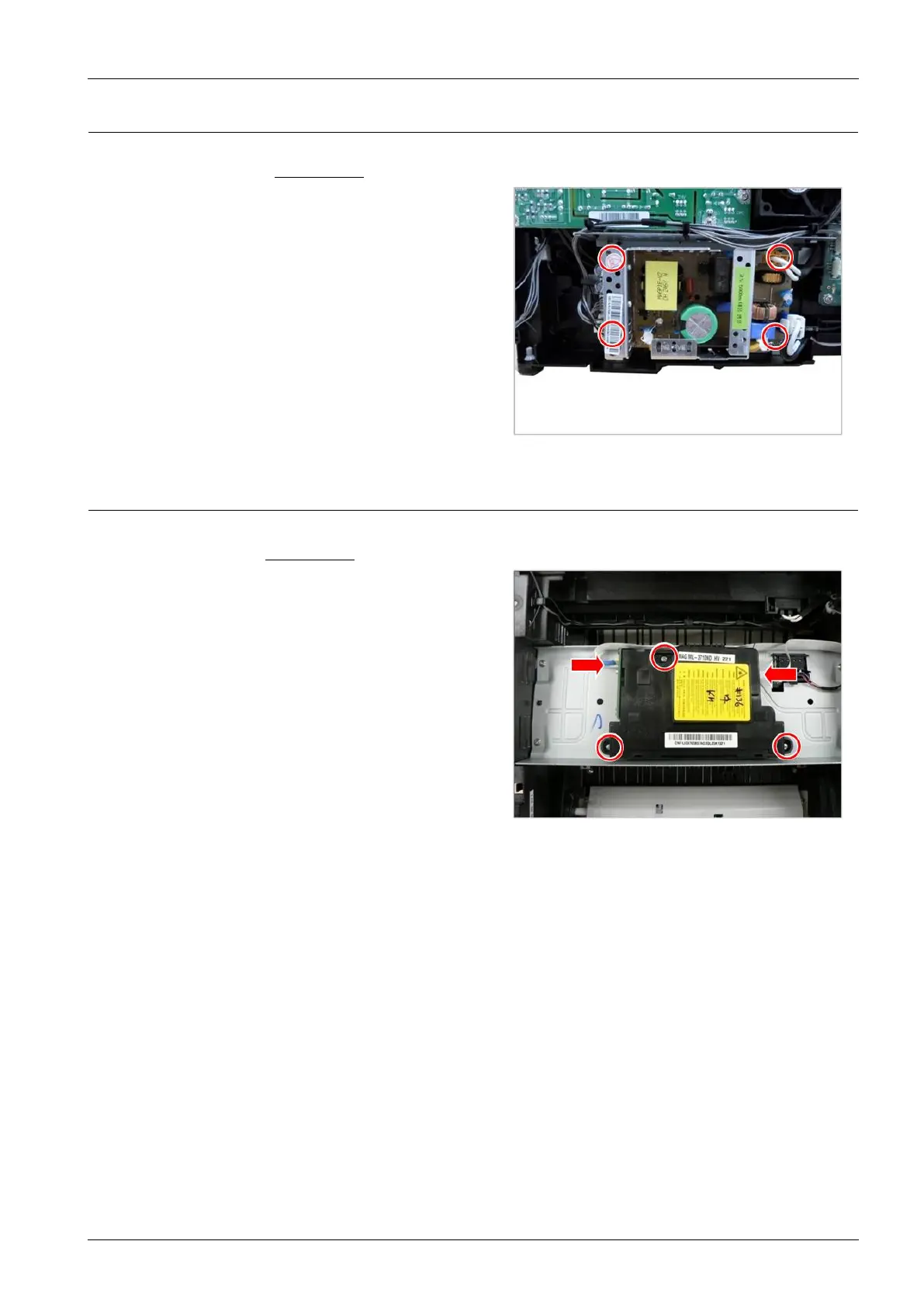

3.3.6.
SMPS
Board
1.
Remove
the
right
cover
.
(
Refer
to
3.3.1
)
2.
Unplug
all
connectors
on
the
SMPS
board.
3.
Remove
4
screws.
4.
Release
the
SMPS
board.
3.3.7.
Laser
Scanning
Unit
(LSU)
1.
Remove
the
top
cover
.
(
Refer
to
3.3.3
)
2.
Unplug
2
at
cables
from
the
LSU.
3.
Remove
3
screws.
4.
Release
the
LSU.
Copyright©
1995-2016
SAMSUNG.
All
rights
reserved.
3-10
