3.
Disassembly
and
Reassembly

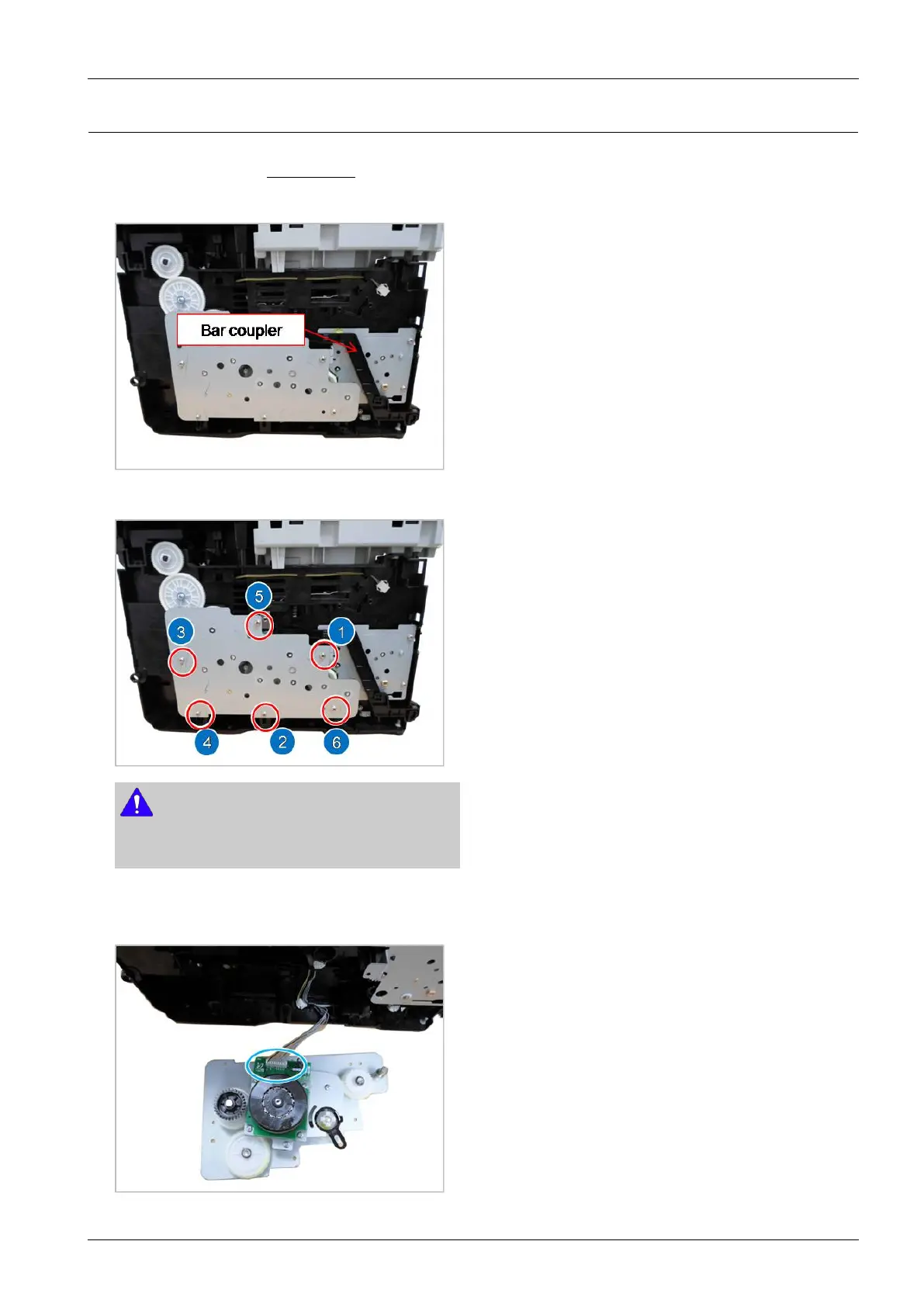

3.3.9.
Main
Drive
Unit
1.
Remove
the
left
cover
.
(
Refer
to
3.3.1
)
2.
Remove
the
Bar
coupler
.
3.
Remove
the
main
drive
unit
after
removing
6
screws.
NOTE
When
reassembling
the
main
drive
unit,
tighten
6
screws
in
order
as
shown
above.
4.
Unplug
the
connector
form
the
main
motor
.
5.
Release
the
main
drive
unit.
Copyright©
1995-2016
SAMSUNG.
All
rights
reserved.
3-12
