3.
Disassembly
and
Reassembly

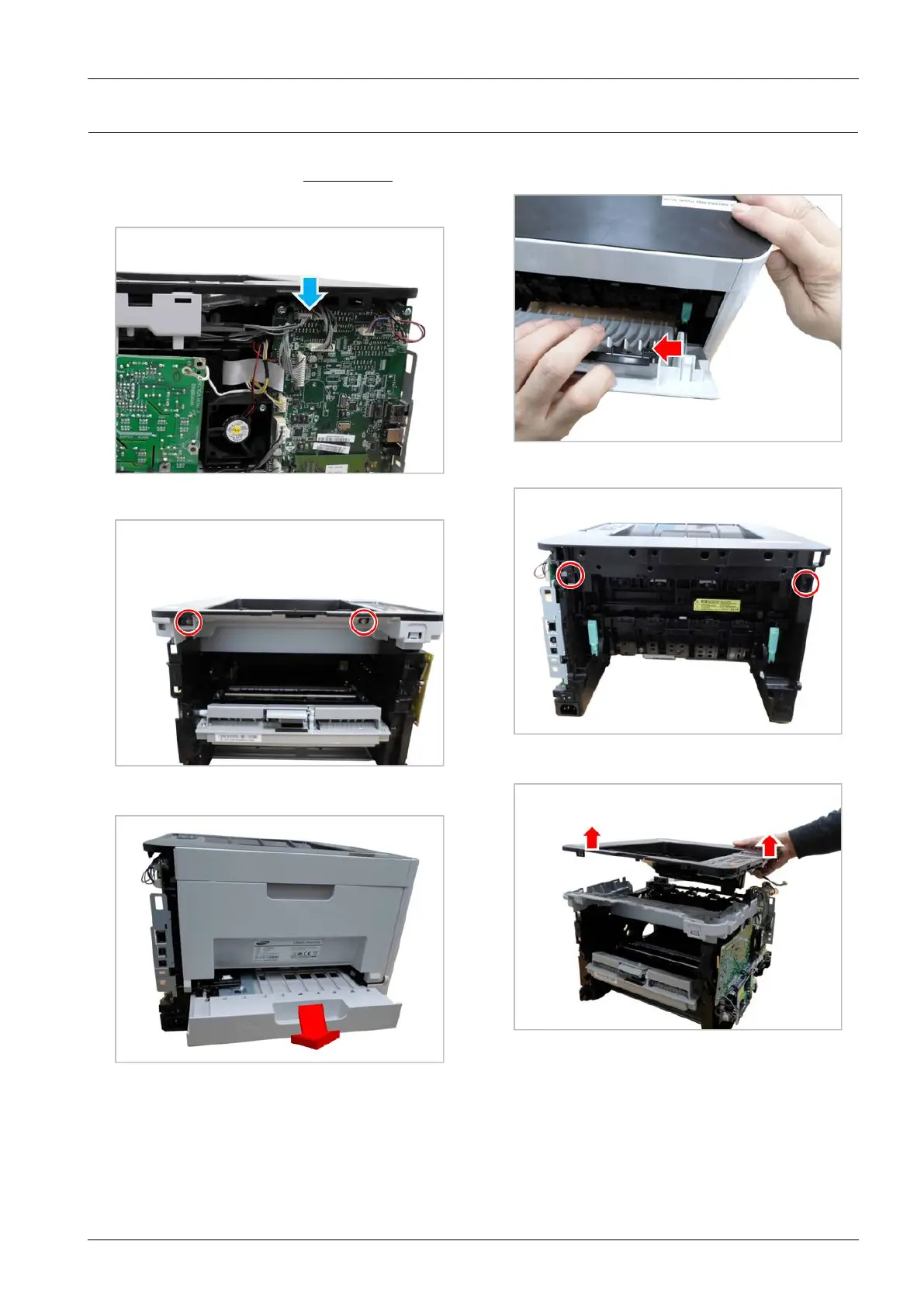

3.3.3.
Rear
and
T
op
Cover
1.
Remove
the
left
/right
cover
.
(
Refer
to
3.3.1
)
2.
Unplug
the
OPE
connector
from
main
board.
3.
Remove
2
screws
from
the
front.
4.
Remove
the
duplex
unit.
5.
Remove
the
rear
cover
by
releasing
the
right
hook.
6.
Remove
2
screws.
7.
Lift
up
and
release
the
top
cover
.
Copyright©
1995-2016
SAMSUNG.
All
rights
reserved.
3-6
