3.
Disassembly
and
Reassembly

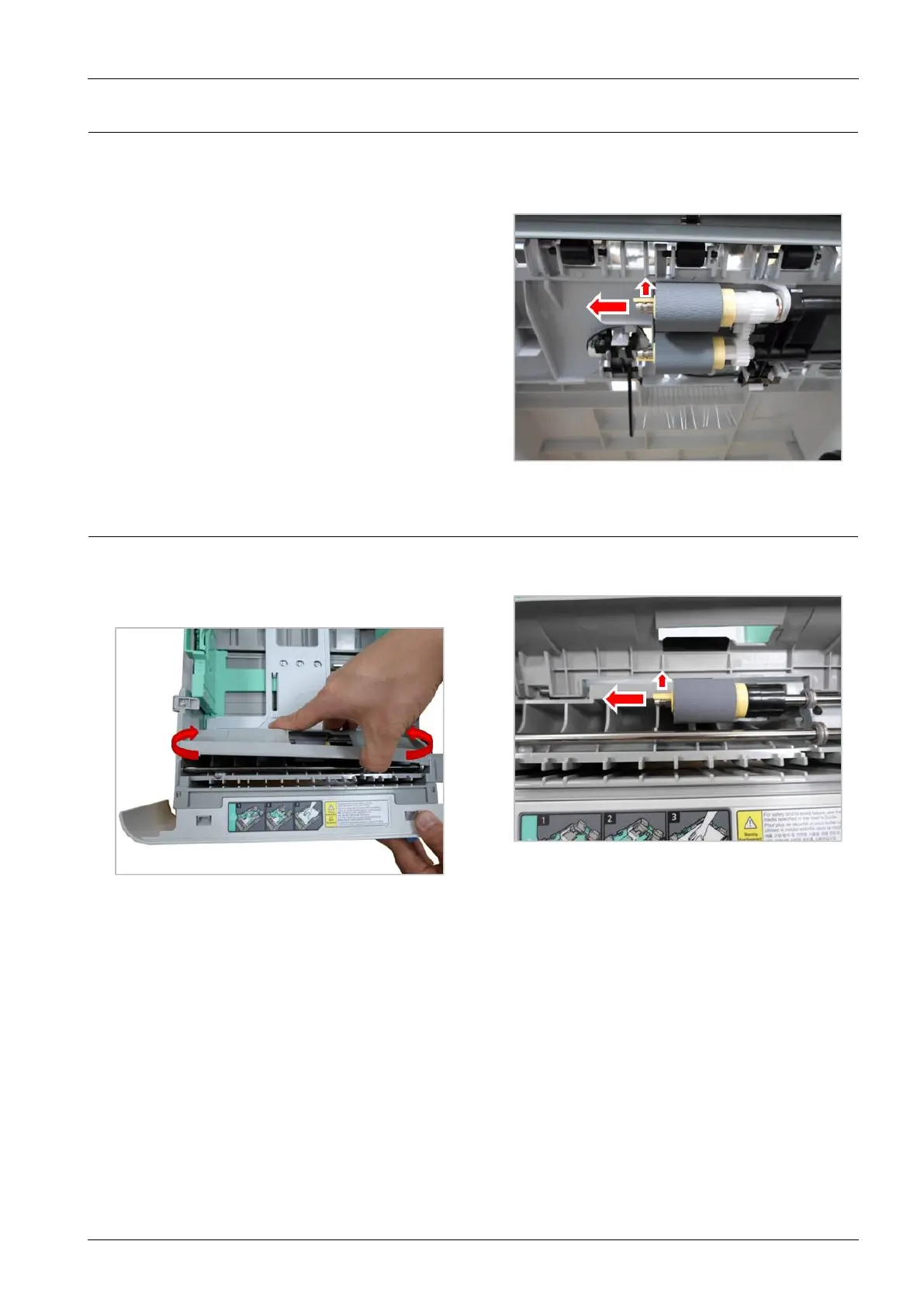

3.3.19.5.
SCF
pick
up_forward
roller
1.
Remove
the
SCF
cassette.
2.
See
the
bottom
of
the
SCF
Unit.
3.
Release
the
pick
up
/
forward
roller
while
pulling
the
small
tap.
3.3.19.6.
SCF
Reverse
Roller
1.
Remove
the
SCF
cassette.
2.
Open
the
cassette
cover
.
3.
Release
the
reverse
roller
while
pulling
the
small
tap.
Copyright©
1995-2016
SAMSUNG.
All
rights
reserved.
3-22
