S&C IntelliRupter PulseCloser User Manual

IntelliRupter fault interrupters using the Loop Restoration mode have specific
indications and controls on the Operation screen. At the right side of the IntelliRupter
fault interrupter graphic are three Loop Restoration status indicators that show Ready,
Timing, or Reconfigured status. The Loop Restoration Enable/Disable button is
below the General Profile selector. See Figure 64.

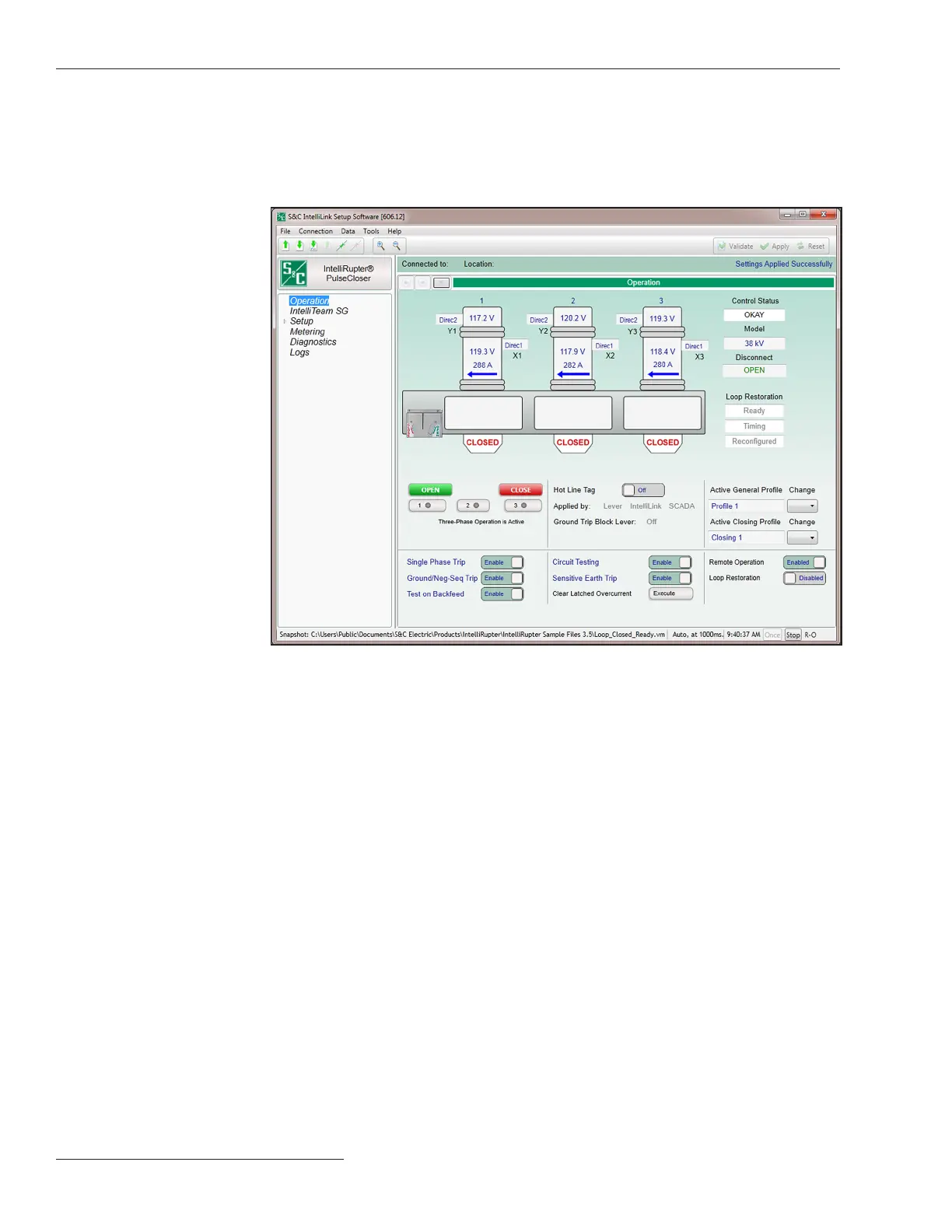

Figure 64. The Loop Restoration Operation screen.
120 S&C Instruction Sheet 766-530
Loop Restoration
