S&C IntelliRupter PulseCloser User Manual

The sections and setting fields found in Setup>Protection>General
Prole 1>Direction 2 screen are identical in layout and the options and ranges for each
of the setting elds are the same as described for Direction 1 on pages 39 through 71.
See Figure 45.
Direction 2
Configuration

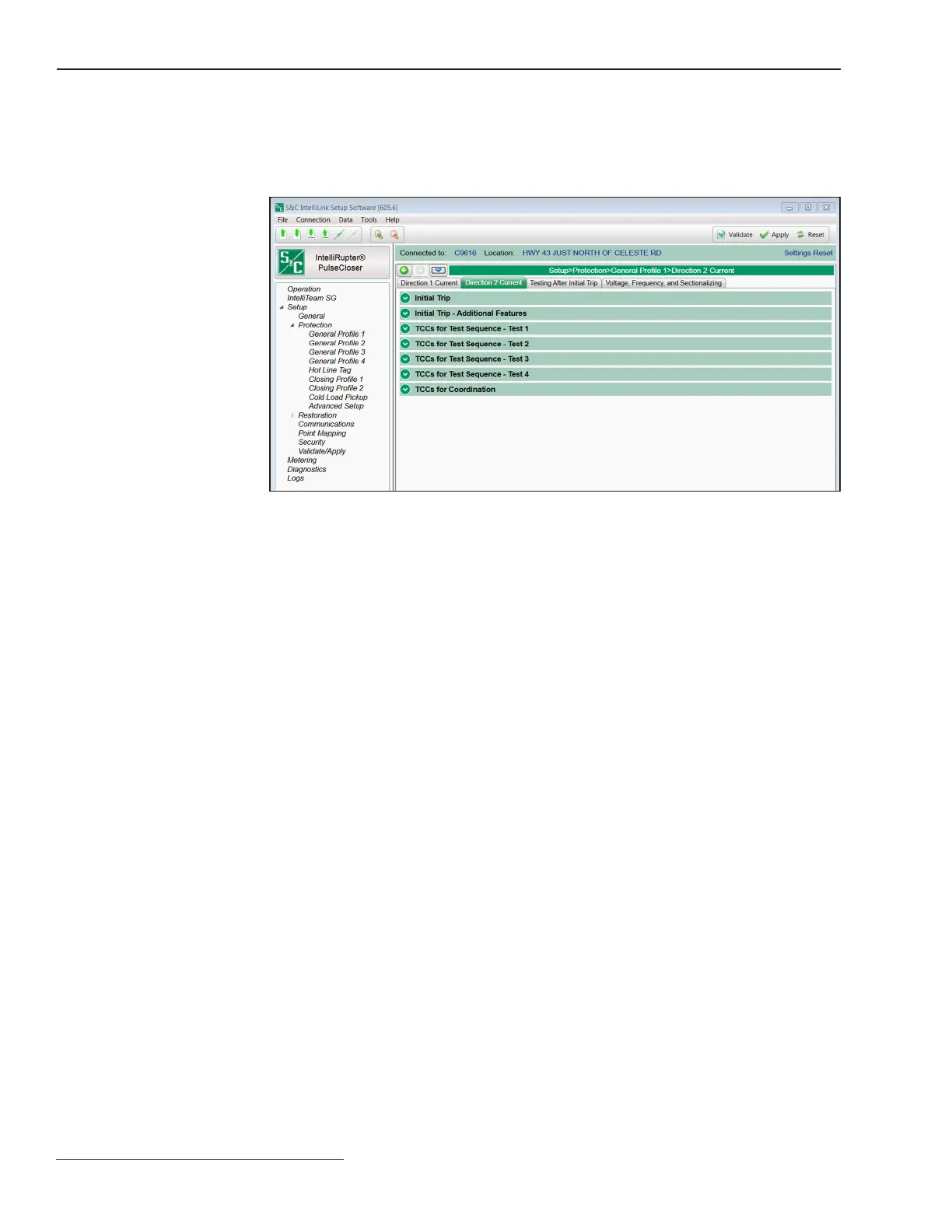

Figure 45. The Setup>Protection>General Profile 1>Direction 2 Current>Initial Trip Screen.
72 S&C Instruction Sheet 766-530
Protection Setup
