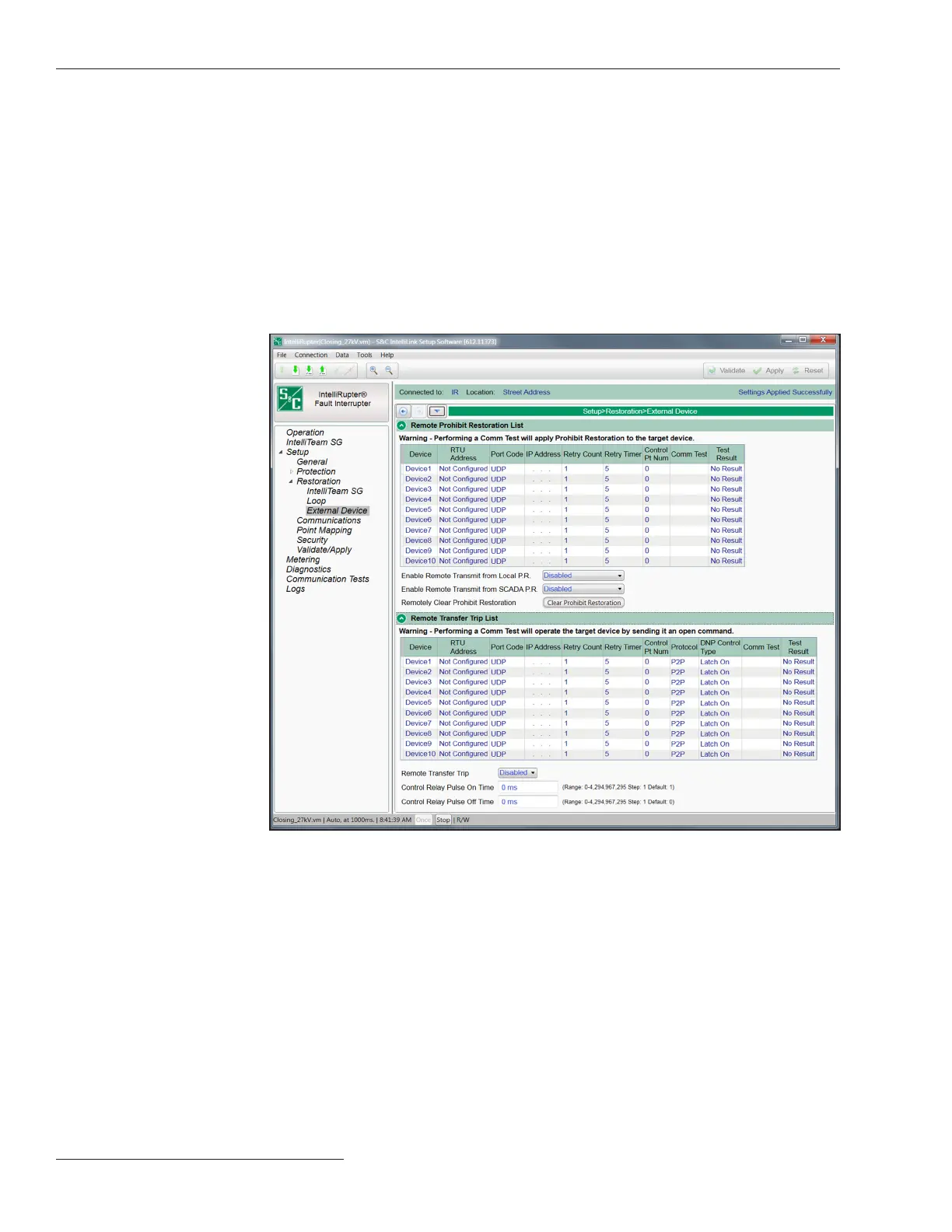

Figure 87. The Setup>Restoration>External Device screen.
Device
This is the Device ID for the remote device.
RTU Address
Enter the address of the remote device. (Range: 1-65519; Step: 1; Default: 0
(Not Congured))
Remote Prohibit Restoration List Section
The External Device screen contains setpoints specically related to sending the Prohibit
Restoration SCADA command to remote devices. The non-zero RTU address in this list
must be congured to receive a Latch On, Direct Operate SCADA control point when
any of the following events are active in the control: Hot Line Tag mode is active, the
Low Frequency Indication setting is enabled and active, the IntelliTeam SG system
determines a Manual Operation event has occurred, or a SCADA Prohibit Restoration
command was received from a congured master address and the Enable Remote
Transmit from SCADA P. R. setpoint is enabled. A Prohibit Restoration command
is also sent when Prohibit Restoration mode is active in the local control, set from the
front panel or with an IntelliLink software screen command and the Enable Remote
Transmit from Local P. R. setpoint is enabled. See Figure 87.
140 S&C Instruction Sheet 766-530
Restoration—External Device
