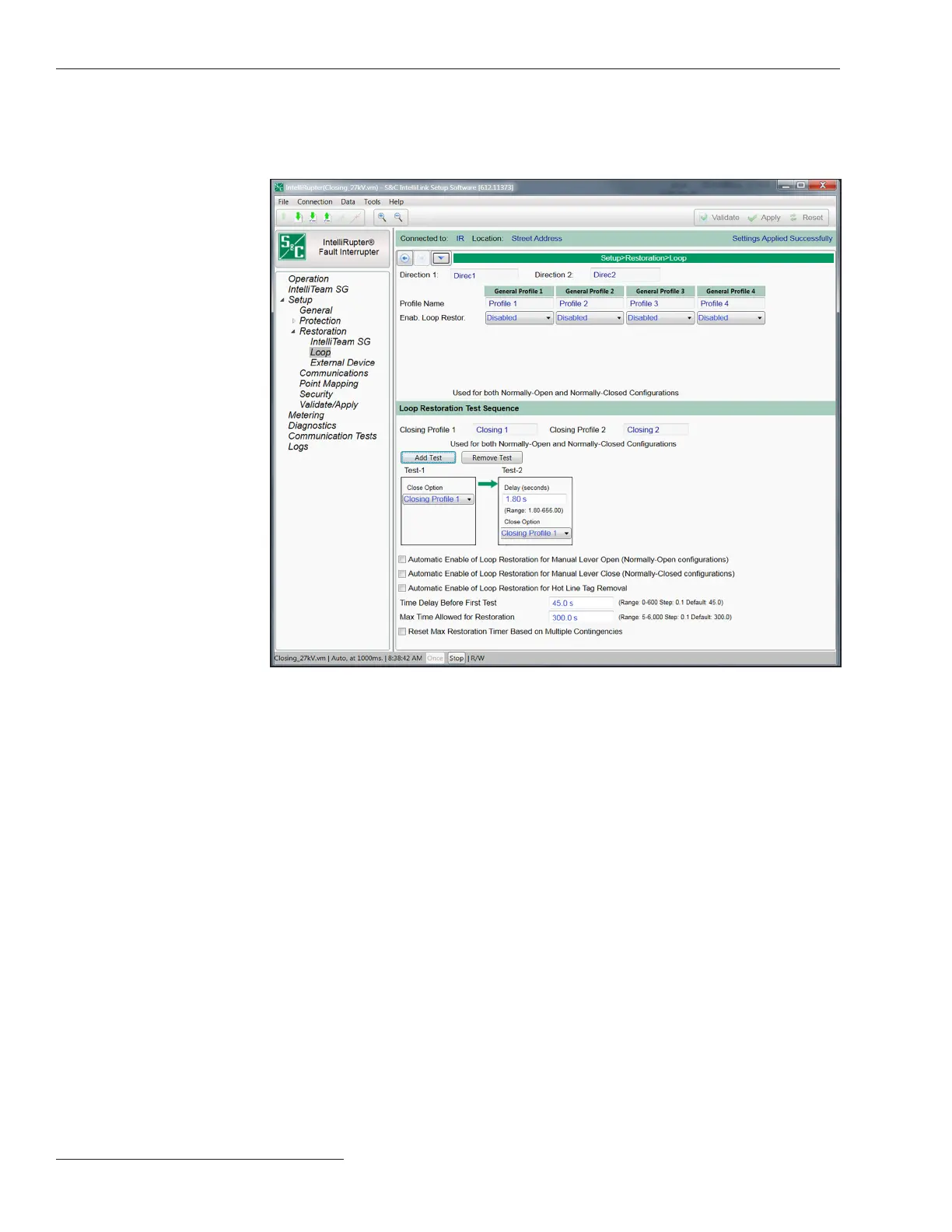

Figure 63. The Setup>Restoration>Loop screen.
Profile Name
The prole names were congured on the Setup>Protection>General Prole x>Direction
1 Current>Initial Trip screen (on the Initial Trip screen for each of the four proles).
They are shown on the Setup>Restoration>Loop screen for reference.
Enable Loop Restoration
This setting enables or disables the Loop Restoration mode for each general prole.
Direction
For each general prole, select the direction or directions for which the Loop Restoration
mode is allowed to pick up load. This parameter is not available if the Loop Restoration
mode is disabled. For example, if Direction 1 is specied, the Loop Restoration mode
will only attempt to pick up loads served in Direction 1. Select the Direction 1 or
Direction 2 option to congure a one-way tie. Select the Both Directions option to
allow the Loop Restoration mode to pick up load on either side. This setting applies to
both the Normally Closed and Normally Open states.
Direction 1 and Direction 2
The direction names were congured on the Setup>General>Site Related>System screen
and are shown here for reference. See Figure 63.
Profile Configuration
Options
116 S&C Instruction Sheet 766-530
Loop Restoration
