The IntelliLink User Interface includes many standard features found in Windows-based
products as well as some custom features designed to make navigating through the
IntelliRupter fault interrupter settings easier. See Figure 2.
IntelliLink Software
Workspace

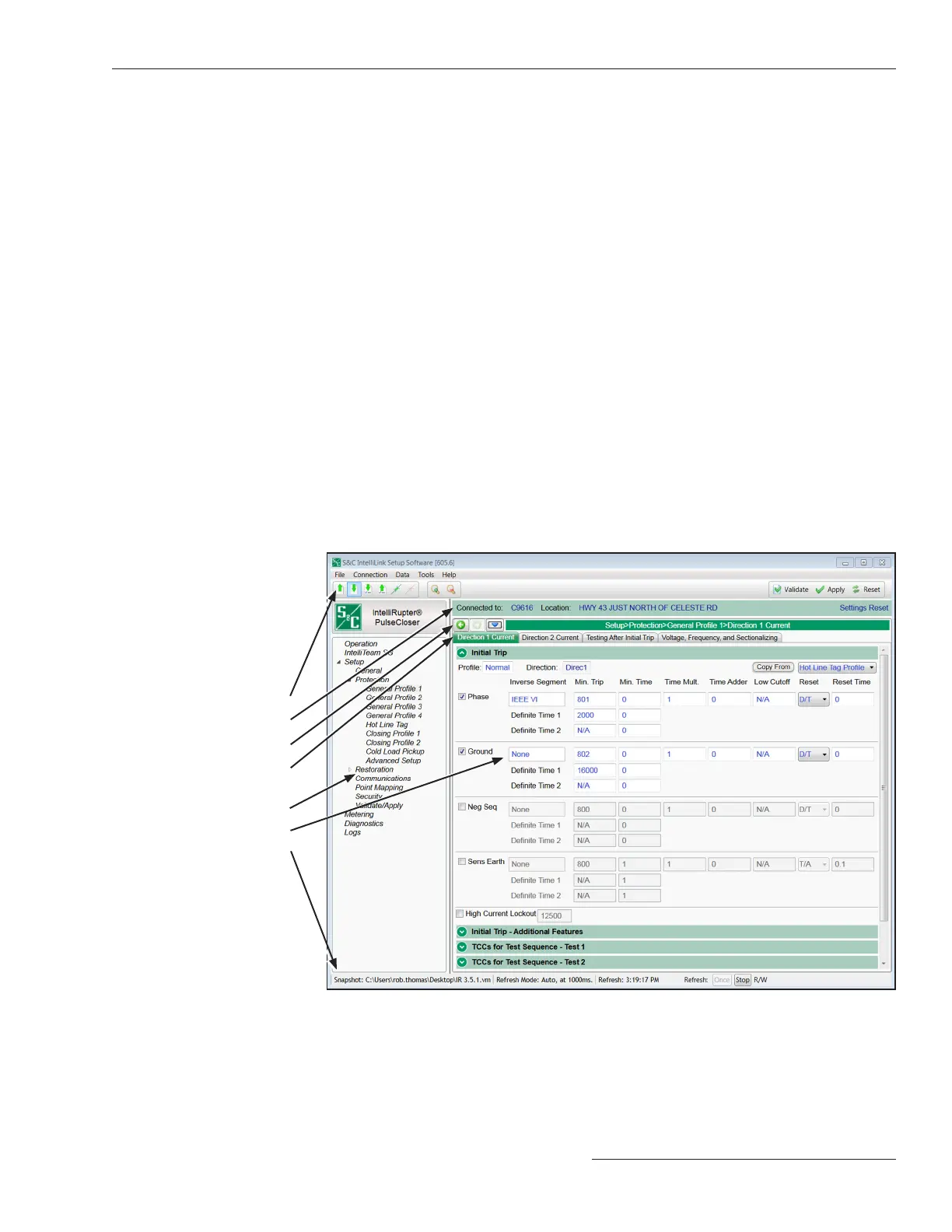

Figure 2. IntelliLink software features.
Tool bar
Status bar
Navigation tools
Sub-screen selection tabs
Navigation tree
Screen area
Communication status
Return to the Operation screen from other IntelliLink software screens by clicking
on the Operation menu item on the navigation tree at the left of the screen.
The Operation screen contains three message indicators. See Figure 1 on page 10.
The list of possible messages in the order of precedence is:
Settings Mismatch LOCKOUT-OC
LOCKED OPEN LOCKOUT-SEF
Close Blkd No Energy PICKUP-FREQ
Fault-Pulseclosing PICKUP-SECT
Lockout-Pulseclosing PICKUP-VOLTS
Close Blkd-Sync Check PICKUP-OC
Close Blkd Pulse Inop PICKUP-SEF
LOCKOUT-FREQ TESTING
LOCKOUT-SECT TESTING-SEF
Note: Blkd = Blocked; Inop = Inoperable; FREQ = Frequency; SECT = Sectionalizing;
OC = Overcurrent; SEF = Sensitive Earth Fault.
S&C Instruction Sheet 766-530 11
