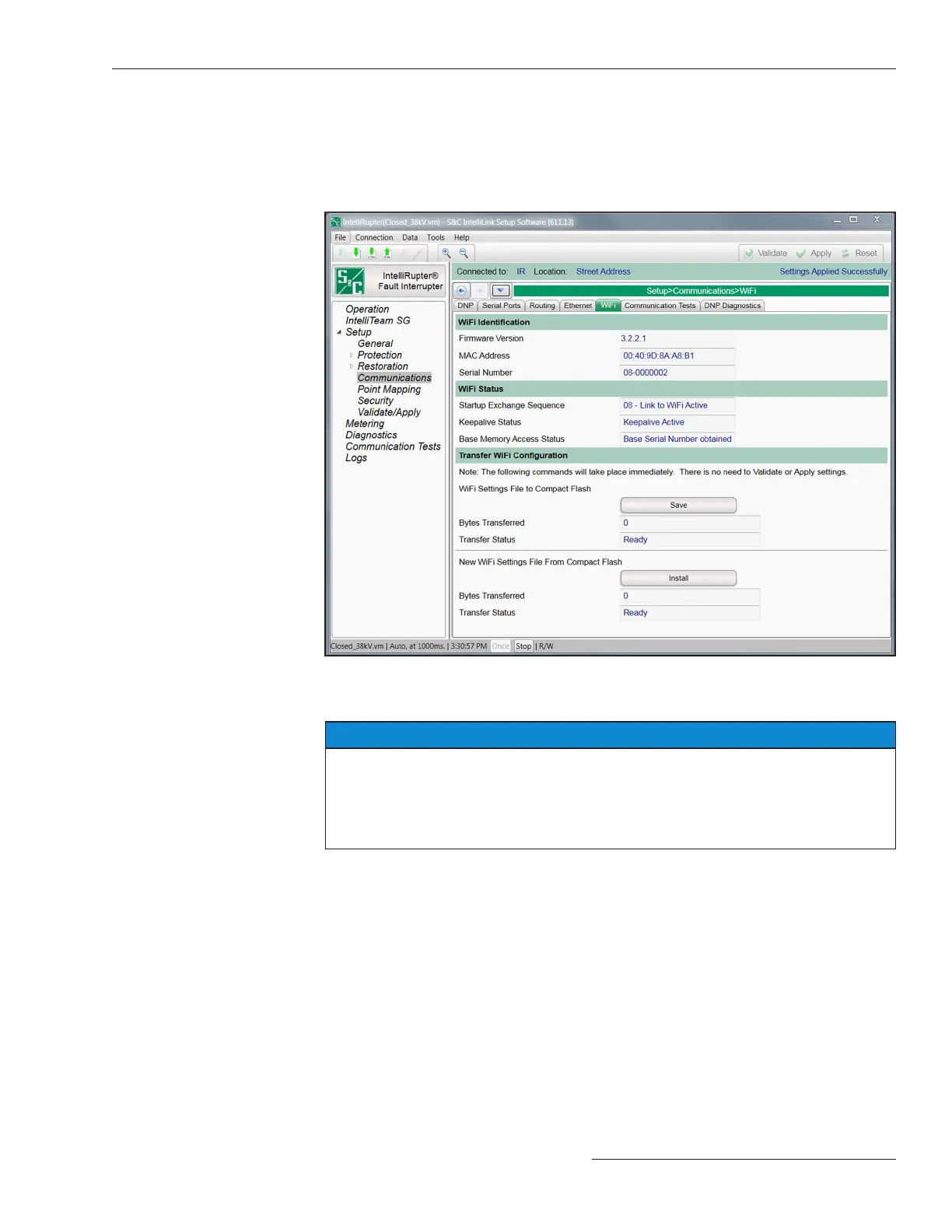

Figure 92. The Setup>Communications>Wi-Fi screen.
Wi-Fi Identification Section
NOTICE
The Setup>Communications>Wi-Fi screen is only applicable to Wi-Fi modules
manufactured on or before December 2019. Boards manufactured after that date do
not connect to this screen. To identify IntelliRupter fault interrupter communication
modules manufactured after December 2019, look for the R3 label on the faceplate
of the module.
Firmware Version
This is the rmware revision assigned by the manufacturer for the Wi-Fi transceiver.
MAC Address
This is the MAC address of the control.
The Wi-Fi module is a separate computer to send Wi-Fi communication information to the
MCU computer in the control over a serial port. The Wi-Fi module must have the control
serial number registered to initiate Wi-Fi communication with a computer at the site.
When the Wi-Fi module cannot obtain a serial number from the control, it uses the
universal serial number: 00-0000000. See Figure 92.
Wi-Fi Settings
S&C Instruction Sheet 766-530 155
Communication Setup
