MULTI-PORT OPTICAL POWER METER MPM-210H
13 / 59
3.3. MPM-212 (Power meter module and analog output 2 ports)

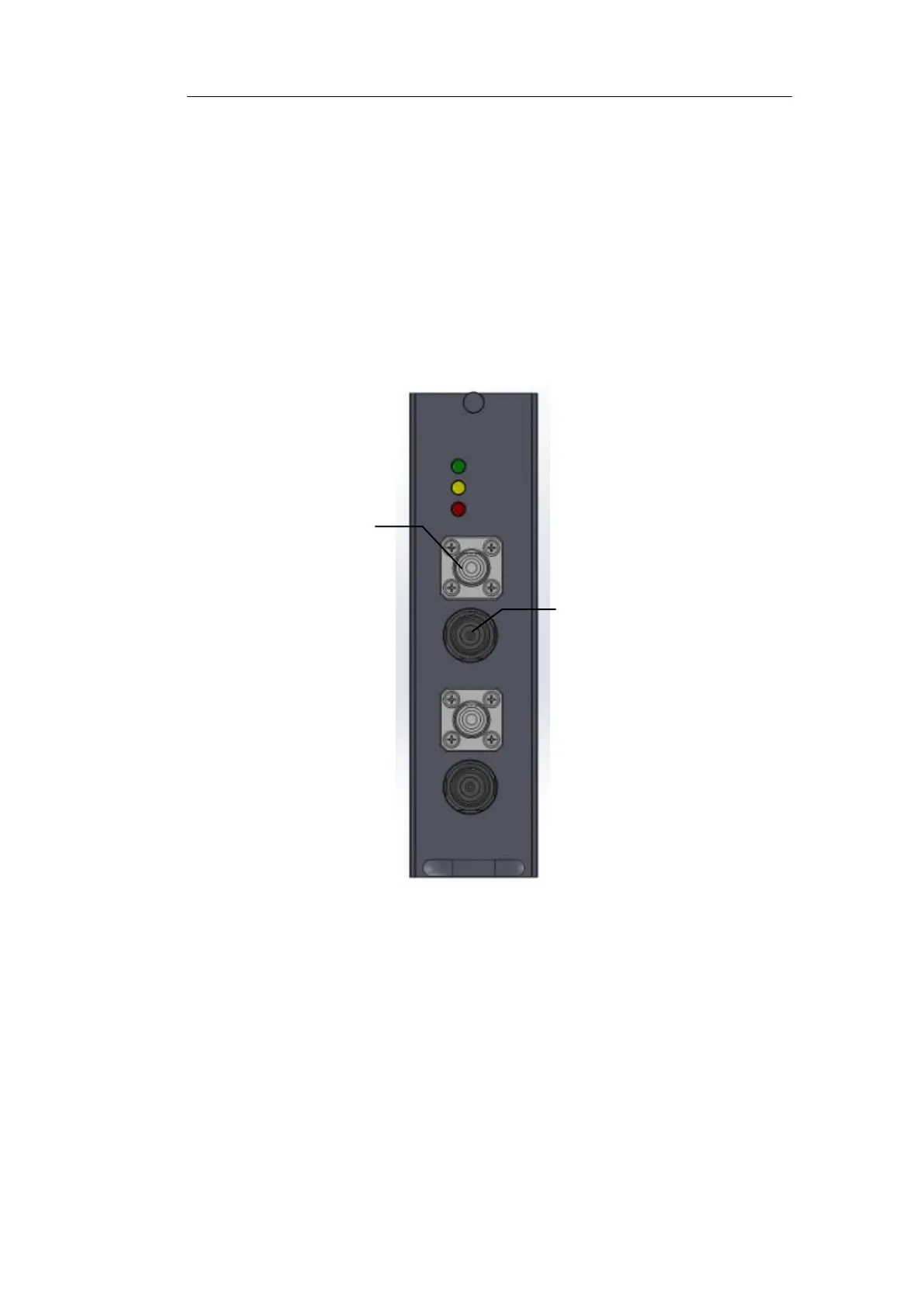

The MPM-212 has 2 optical power measuring ports and 2 analog output ports
and outputs analog voltage signal proportional the optical power per each port.
The connector of the optical input port is a FC connector receptacle and the
analog output port is a BNC male connector. Optical input port 1, analog output
port 1, optical input port 2 and analog output port 2 is arranged from top to
bottom.
Analog voltage output port
