MPM-210H OPERATION MANUAL
52 / 59
6. Trigger Input/Output
6.1. Trigger Input

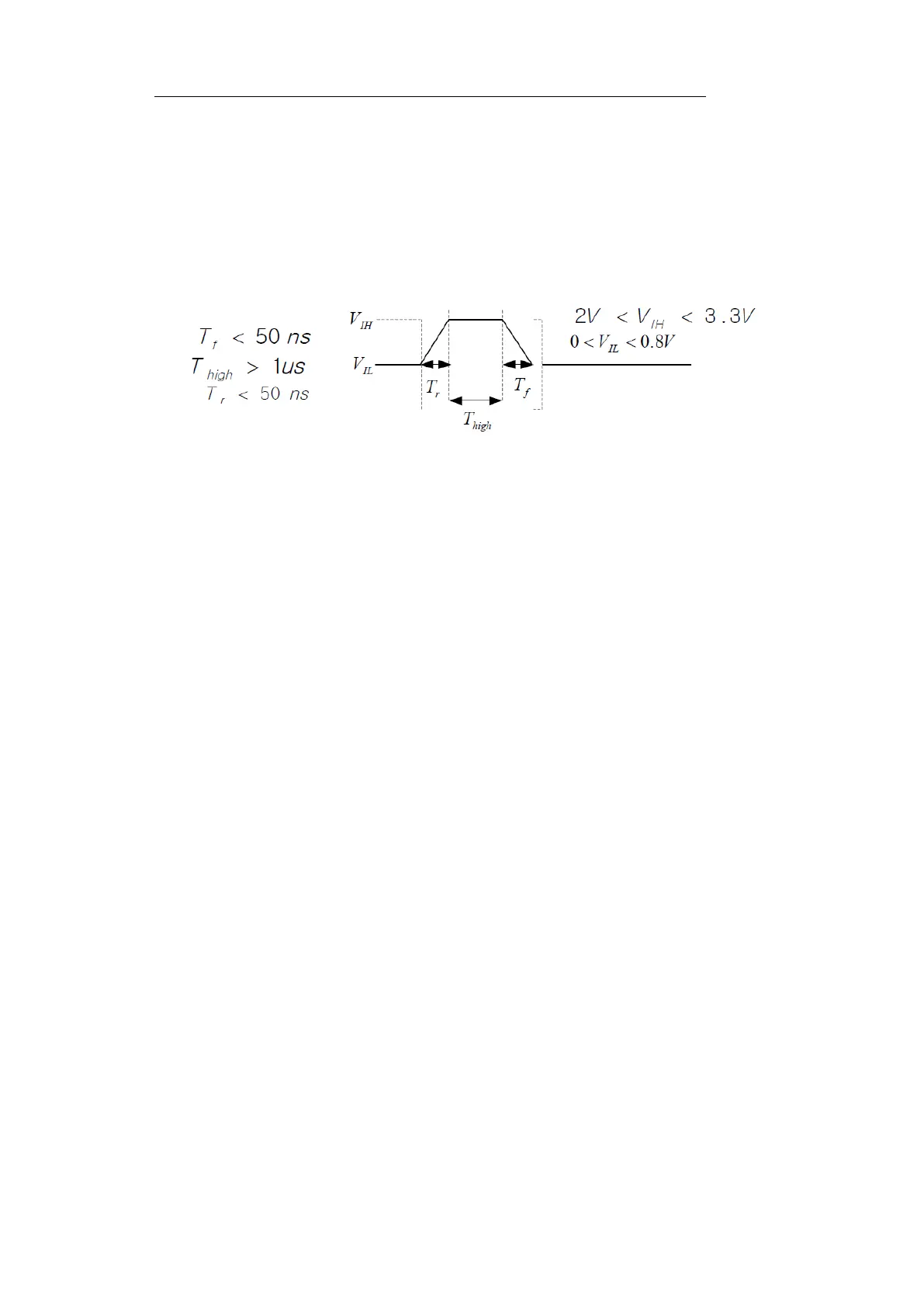

Next picture explains about electrical characteristic of External Trigger
Signal that enters into Trigger Input Port.
Measurement External Trigger Timing
6.2. Trigger Output
Trigger Output Port outputs each trigger after about 22nsec since External
Trigger Signal inputs. Output signal will have electrical characteristic as 3.3v
for High and 0v for Low.
