3.6. Rear Panel

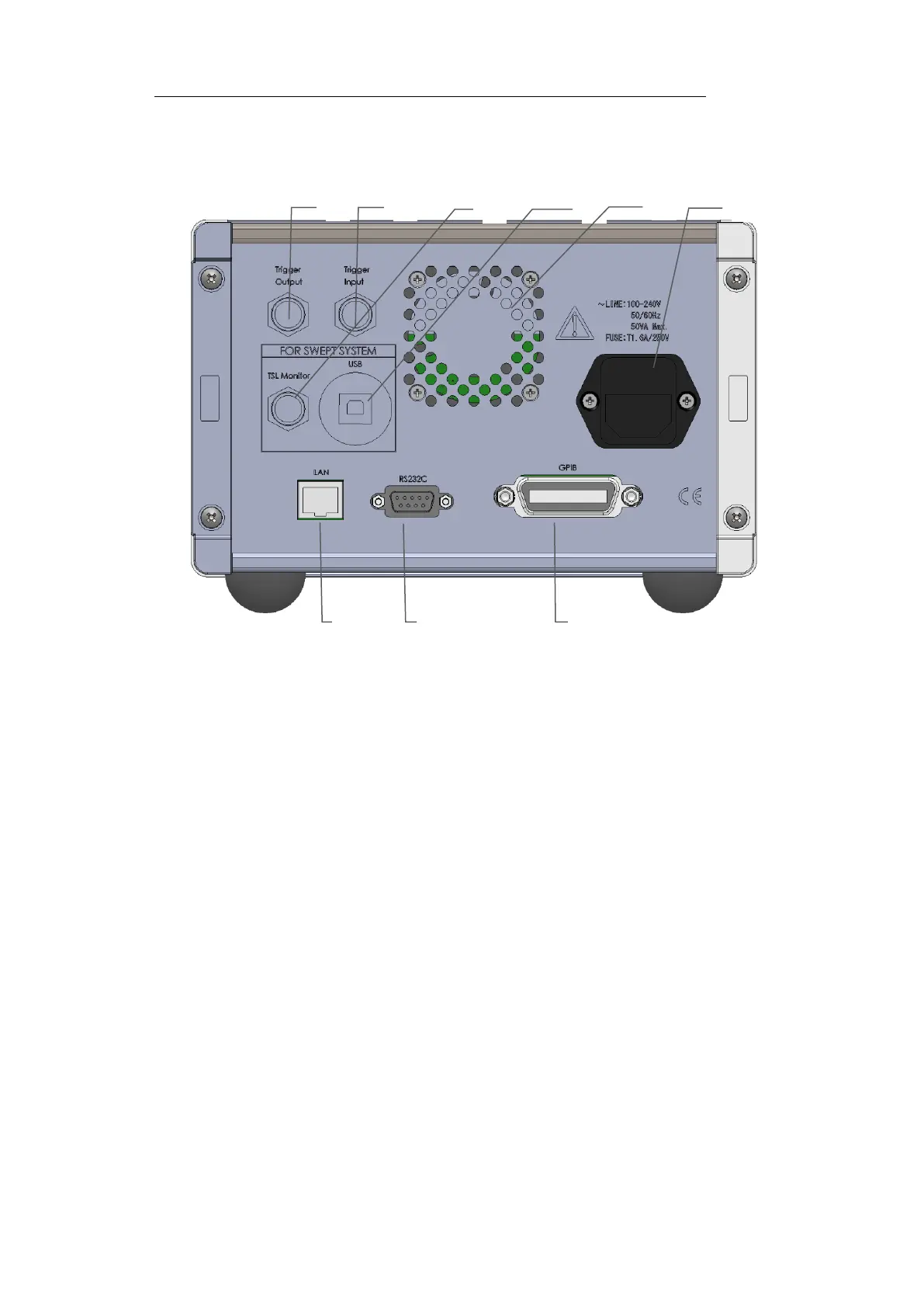

Figure 3-2. Rear Panel
(1) Trigger Output
(2) Trigger Input
(3) TSL Monitor Input (For Swept Test System)
(4) USB port (For Swept Test System)
(5) Power Connector Socket and fuse box
(6) GPIB Port
(7) RS-232 Port
(8) LAN Port
(9) Exhaust fan
