The INT-SCR-BL multifunctional keypad with
proximity card reader can work as:
• partition keypad (see section: P
ARTITION KEYPADS
);
• partition keypad with proximity card reader –
having the functionality of partition keypad,
enhanced by an option to identify users, based
on the proximity card;
• entry keypad – entering the access code
(password) or reading in the card will unlock the
time delay for interior delayed zones.
The keypad design enables it to be installed
outdoors. Additionally, the device is fitted with a bell
button.
The keypad has two LEDs which are intended for
signaling:
-
ALARM
(red color).
-
ARMED
(green color).
-
TROUBLE
(yellow color).
Information conveyed with the LEDs depends on the
keypad operating mode. Blinking of all the LEDs in
turn (from left to right) indicates that there is no
communication with the control panel. Such
a situation may take place when the STARTER
program is running in the control panel, or the
connecting cable between keypad and control panel
is defective.
6.5.1 Operation in partition keypad mode
(INT-S/SK)
The proximity card reader is not supported in
this mode. Information conveyed by means of
the LEDs, audible signaling and functionality
have been described in section P
ARTITION
KEYPADS
.
6.5.2 Operation in partition keypad mode with proximity card reader (INT-SCR)
The device executes functions of the partition keypad, however it allows the users not only to
use the access code, but the proximity card as well. Presenting the card is read out by the
expander in much the same way as entering the access code and confirming it by the
key. Holding the card (for approx. 3s) is recognized as entering the access code and
confirming it by the key.
Note: Entering an invalid access code (i.e. unknown to the control panel) or placing an
unknown card in proximity may:
− trigger the alarm PROG;
− block the keypad for 90 seconds. After the blocking time has expired, entering
another invalid access code / reading in an unknown card will each time block the
keypad PROG.

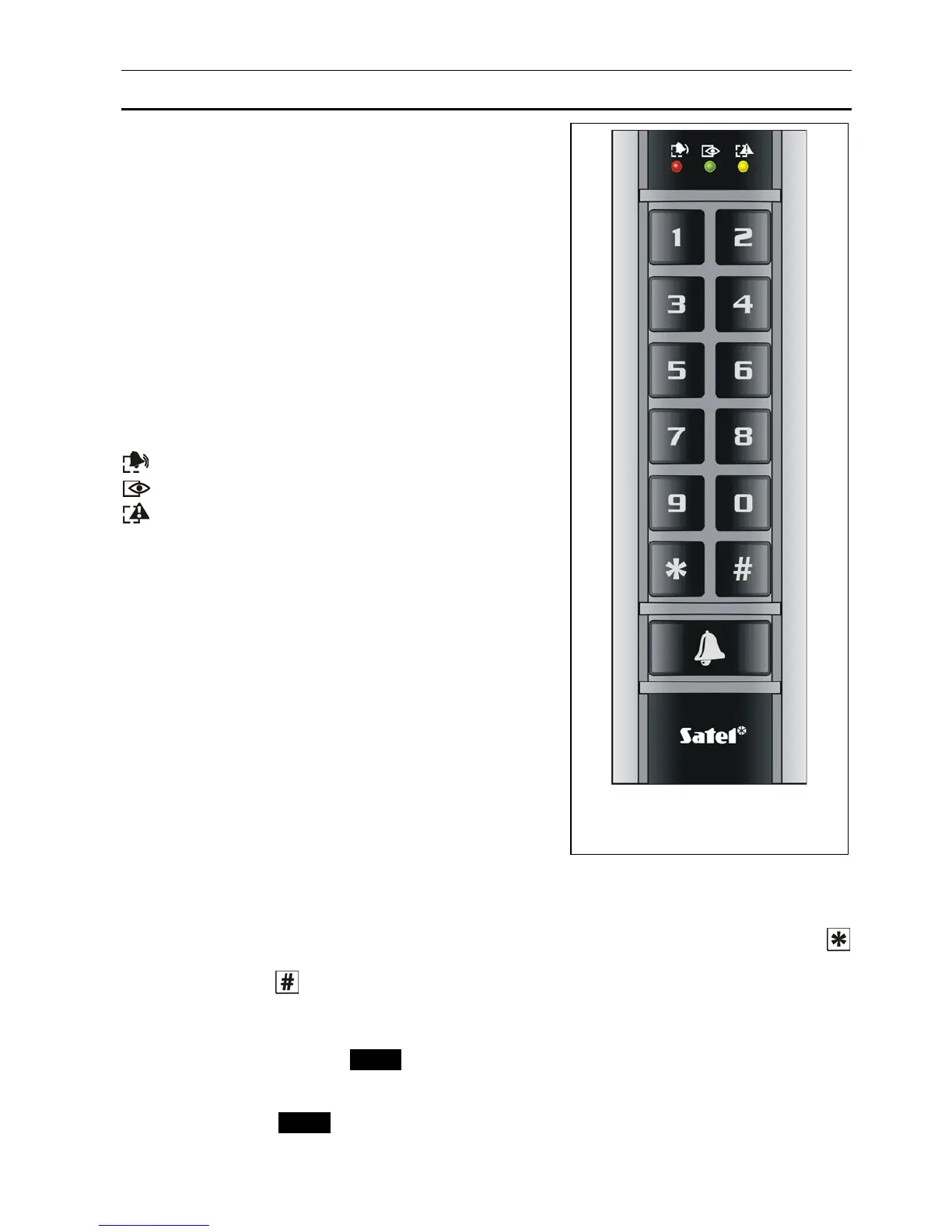

Fig. 6. Multifunctional keypad
INT-SCR-BL.
