Hardware manual PCD7.LRxx-PG5 room controller │ Document 27-653; version ENG07 │ 2019-03-21
Saia-Burgess Controls AG

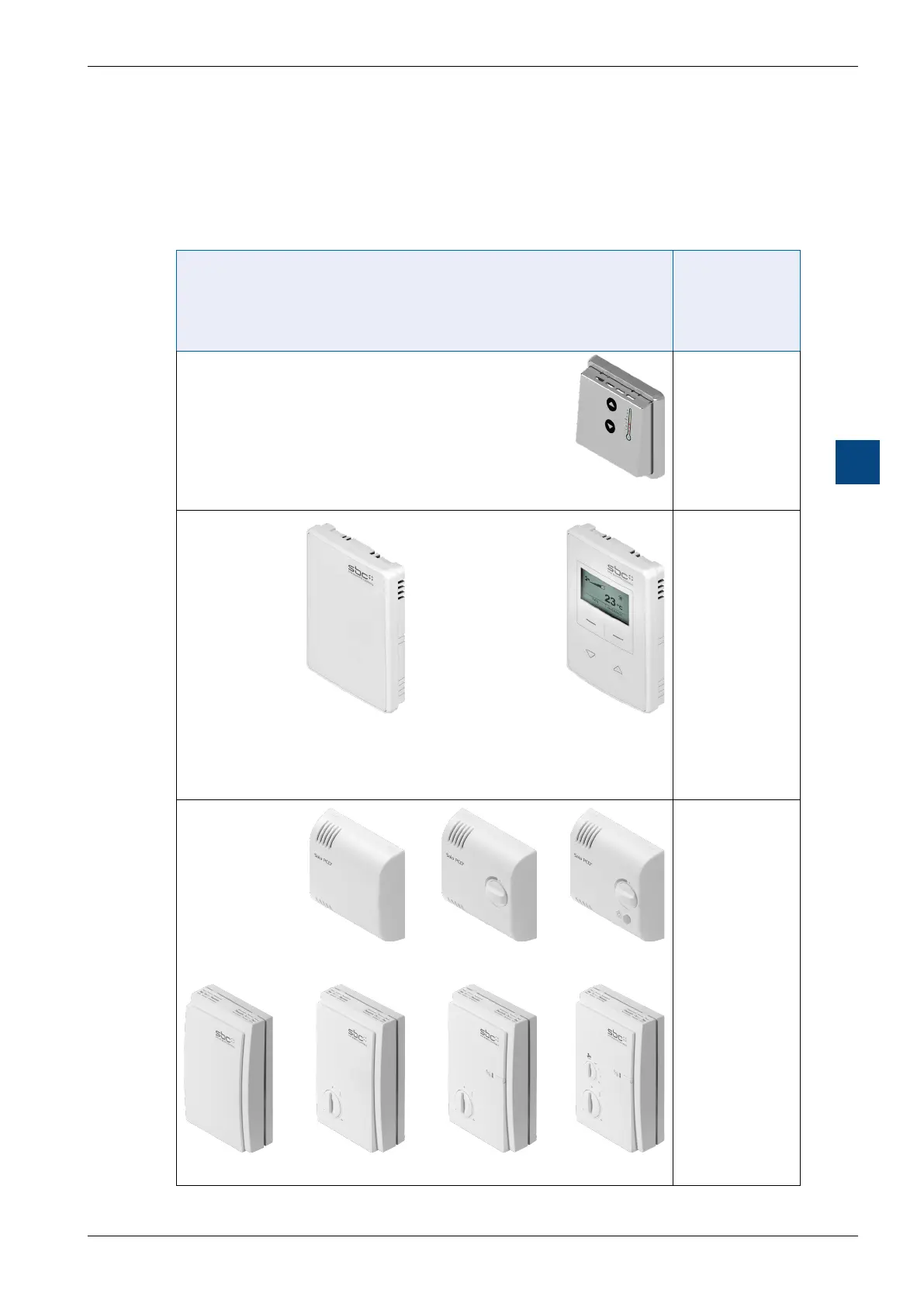

Overview of room operating devices
Room operating devices
7-2
7
7.1 Overview of room operating devices
The following room operating devices can be used together with the controller to
adjust the fan speed.
Operating devices
Communi-
cation type /
Terminal on
PCD7.LRLx
*
PCD7.LRSx
*
S-Bus Slave,
Modbus /
Port 0, Port 1
PCD7.D1000
Sylk Bus /
WM1, WM2
PCD7.LR-TR40
PCD7.LR-TR40-H
PCD7.LR-TR40-CO2
PCD7.LR-TR40-H-CO2
PCD7.LR-TR42
PCD7.LR-TR42-H
PCD7.LR-TR42-CO2
PCD7.LR-TR42-H-CO2
Input /
UI0 … UI2,
GND, LED
PCD7.L630 PCD7.L631 PCD7.L632
Q.RCU-A-T Q.RCU-A-TS Q.RCU-A-TSO Q.RCU-A-TSOF
