Dimensions/device installation
Room controller/CPU
3-3
3

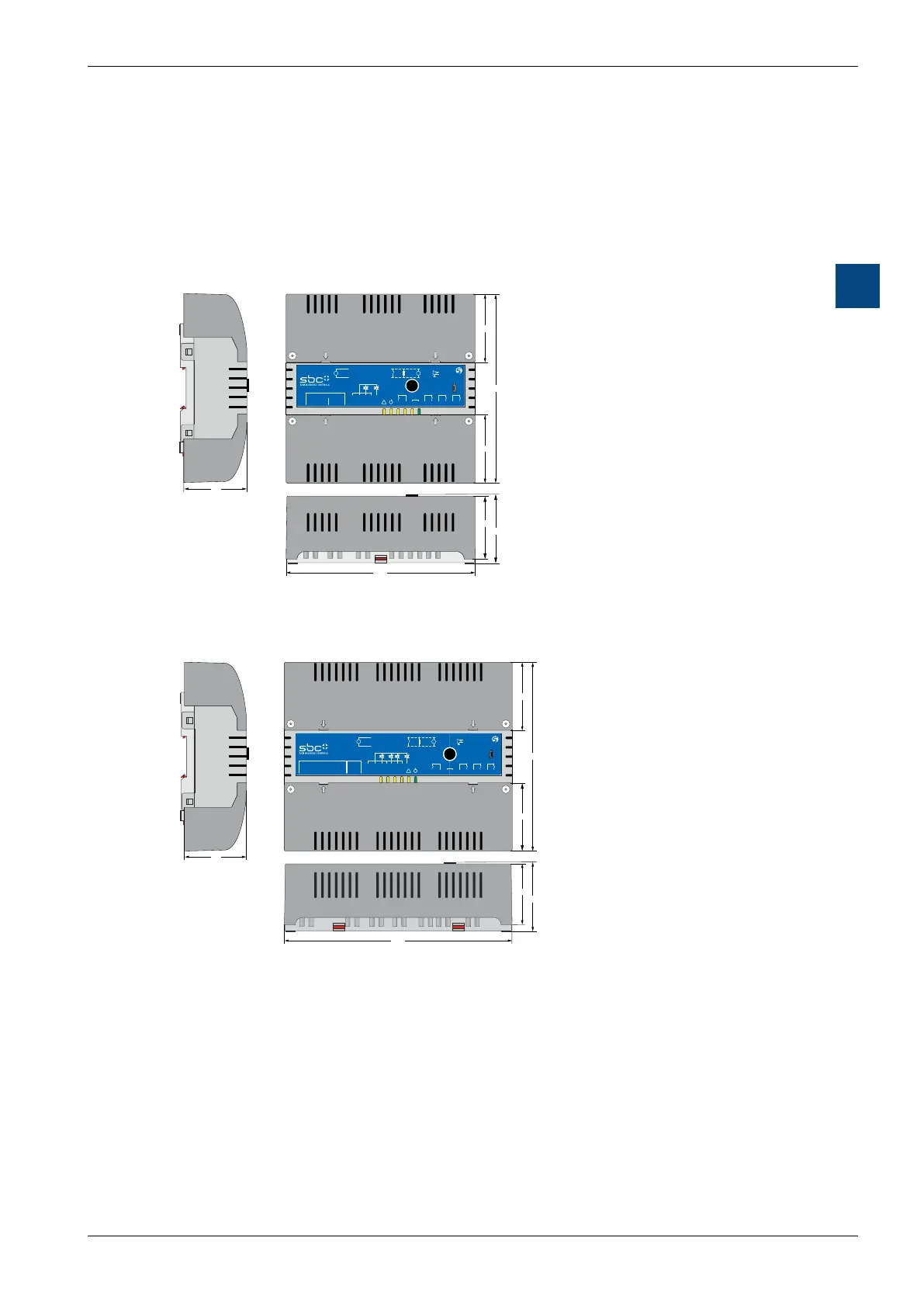

3.1.2 Dimensions with protective terminal covers
IP30-compliant protective terminal covers in large package, set of 10 individual
protective covers. Two covers are required for each device:
for
PCD7.LRSx-P5 (small housing)
Item number:
IRM-RSC
AO0…
GND
0-10V
V
UI0…
0-10 V
GND
Dig. NTC
V
RS485 / Port 0
/D A +
D B -
RO3 IN3 RN RN IN0 RO0 IN1 RO1 IN2 RO2
TN T~ TO0 TN TO1
RUN/HALT
Power Supply
---
230 V In
24 VAC In
24 VAC Out
Sylk Bus
RS485 / Port 1
USB
T1 R1 T0 R0
!
PCD7.LRSx
54
162
54
59
58.4
58.4
162
Total external dimensions
W × L × H = 162 × 162 × 59 mm
for
PCD7.LRLx-P5 (small housing)
Item number:
IRM-RLC
RO3 IN3 RN RN IN0 RO0 IN1 RO1 IN2 RO2
RUN/HALT
Sylk Bus
RS485 / Port 1
UI0…
0
-
10 V
GND
Dig. NTC
V
TN T~ TO0 TNTO1 TO2 TN TO3
RS485 / Port 0
C1+/D A +
D B -
GND
C1-
AO0…
GND
0
-
10V
V
Power Supply
24 VAC
Out
---
230 V
24 VAC
---
USB
T2 R2 T1 R1
!
PCD7.LRLx
54
59
58.4
58.4
162
198
54
Total external dimensions
W × L × H = 162 × 198 × 59 mm
