Hardware manual PCD7.LRxx-PG5 room controller │ Document 27-653; version ENG07 │ 2019-03-21
Saia-Burgess Controls AG Communication
5
5-13
RS-485 interfaces (ports 0 + 1) in general

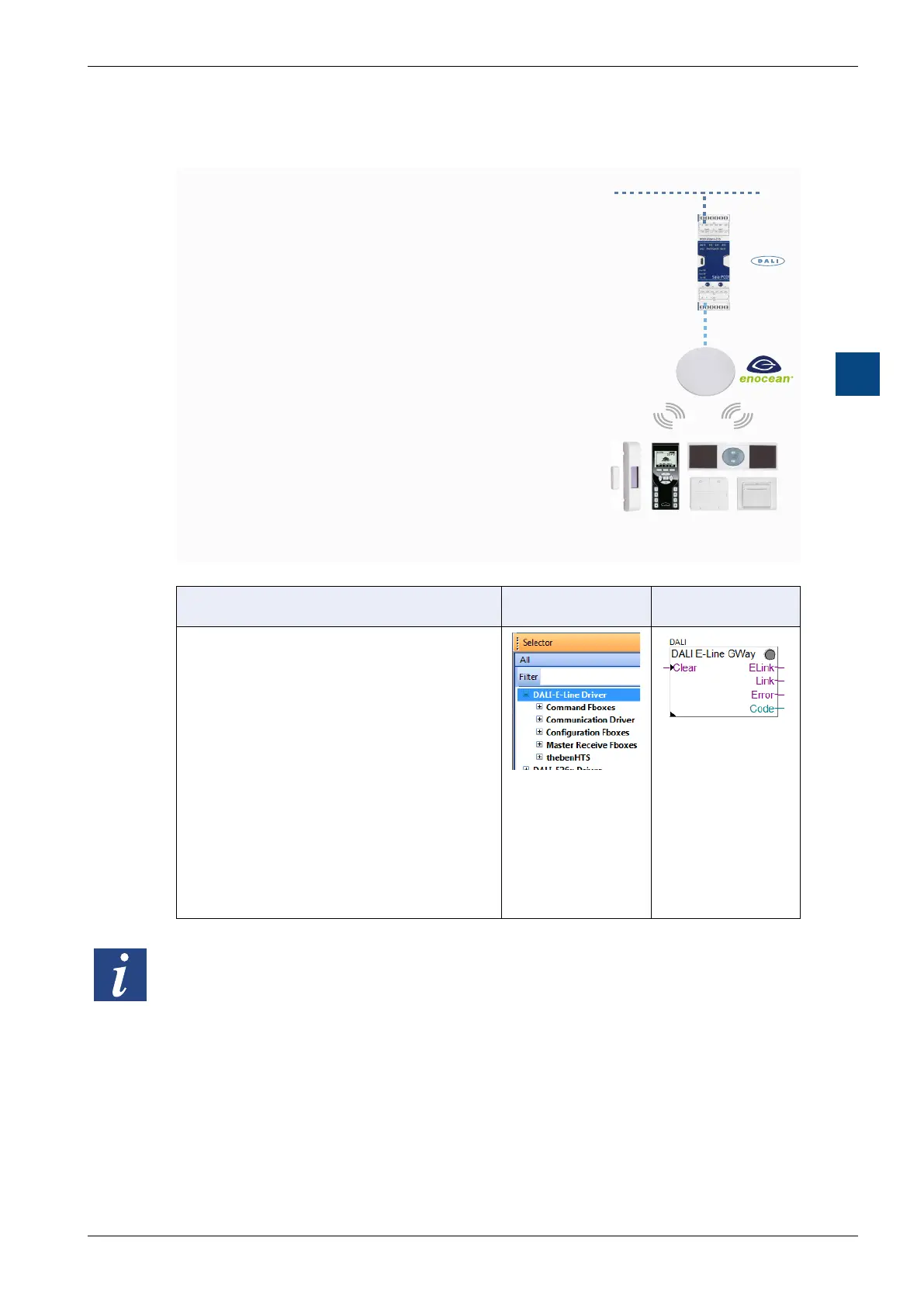

5.3.5.4 DALI with E-Line (PCD1.F2611-C15 module)
The freely programmable module with a housing width
of 35 mm (2 HP) can be controlled via RS-485 and en-
ables the direct control of 64 DALI subscribers. It has
the DALI line as well as four digital inputs. The user
can implement the digital inputs to connect electrical
sensors.
LRxx-P5 room controller.
module requires more memory than the PCD7.
LRxx-P5 possesses.
PCD plant controller with the gateway FBox.
It is, however, possible to send DALI commands from
the PCD7.LRxx-P5 controller.
EasyClick
S-Bus/Modbus
DALI library
DALI E-Line
driver library
E-Line
gateway driver
The DALI master module supports up
to 64 DALI devices, including the bus
power supply.
The extensive PG5 Fbox library provides
function blocks for commissioning, oper-
ation and service for the PLC program.
-
Only smaller DALI controls can be im-
plemented with the PCD1.F2611-C15
E-Line DALI module.
can be found on our support page www.sbc-support.com.
