Hardware manual PCD7.LRxx-PG5 room controller │ Document 27-653; version ENG07 │ 2019-03-21
Saia-Burgess Controls AG
Universal inputs
Inputs/outputs (I/O)
4-15
4
4.2.2.7 Status registers
used.
When there are more than four analogue inputs per system, more
The registers are thus counted up from the address number 0 in the process.

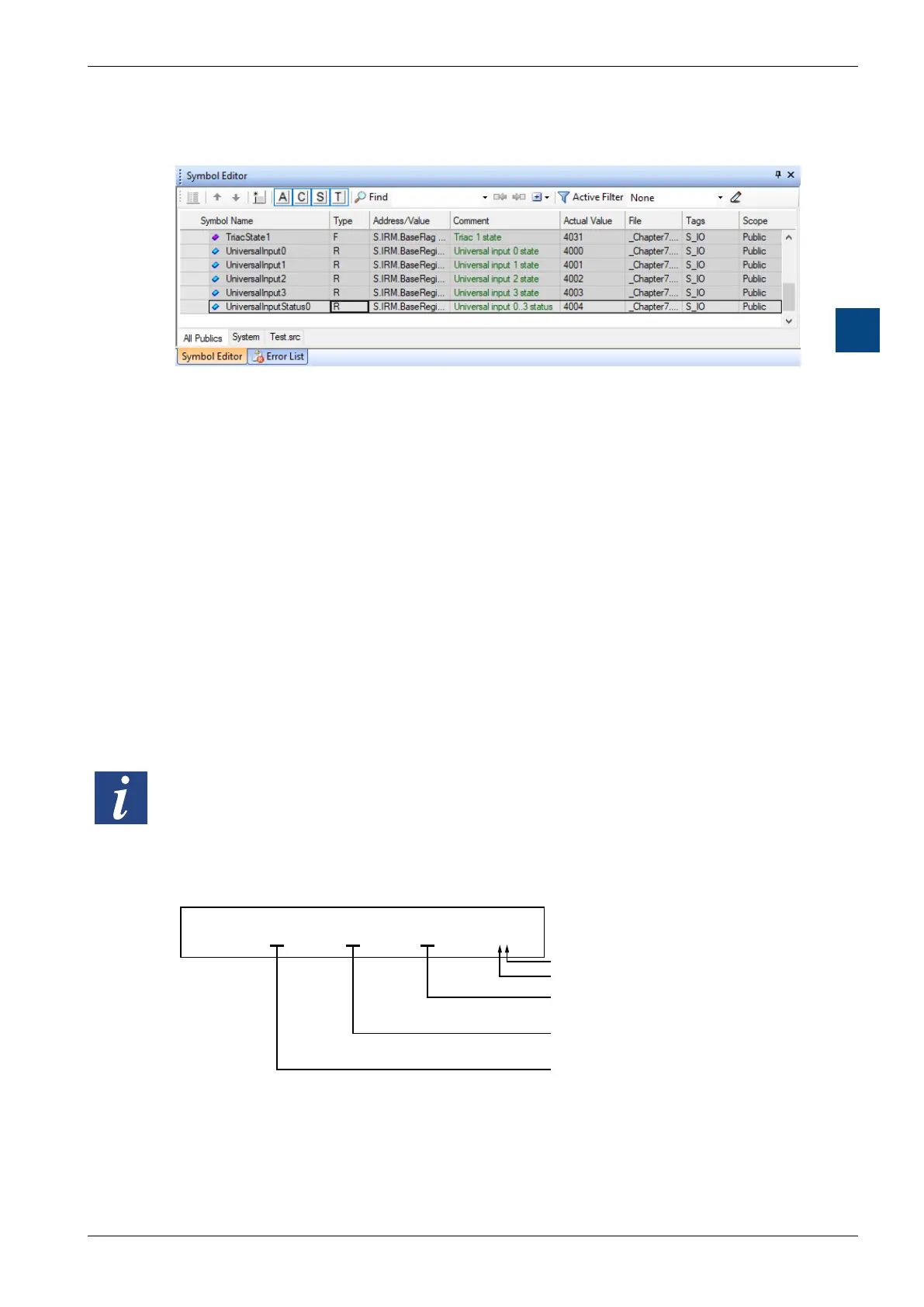

IO.UniversalInputStatus0 (R with 4 bytes = status of 4 analogue inputs)
IO.UniversalInputStatus1 (R with 4 bytes = status of 4 analogue inputs)
... etc.
-
ter indicates whether a value has exceeded the upper range, or with bit1, the lower
range.
The status registers are updated at the end of each COB.
IO.UniversalInputStatus0 (Register 64Bit)
Bit31 Bit0
0000-0000
Byte3
0000-0000
Byte2
0000-0000
Byte1
0000-0000
Byte0
Universal input 0..3 status
Universal input I0 above the range
Universal input I0 below the area
Universal input I1 item
Universal input I2 item
Universal input I3 item
The Bit for below the area works only by mode Pt1000, Ni1000 and Ni1000L&S.
