Cleaning
Daily cleaning coffee machine with fridg
BASO-2 - 01.05 - V07 Page 5-7

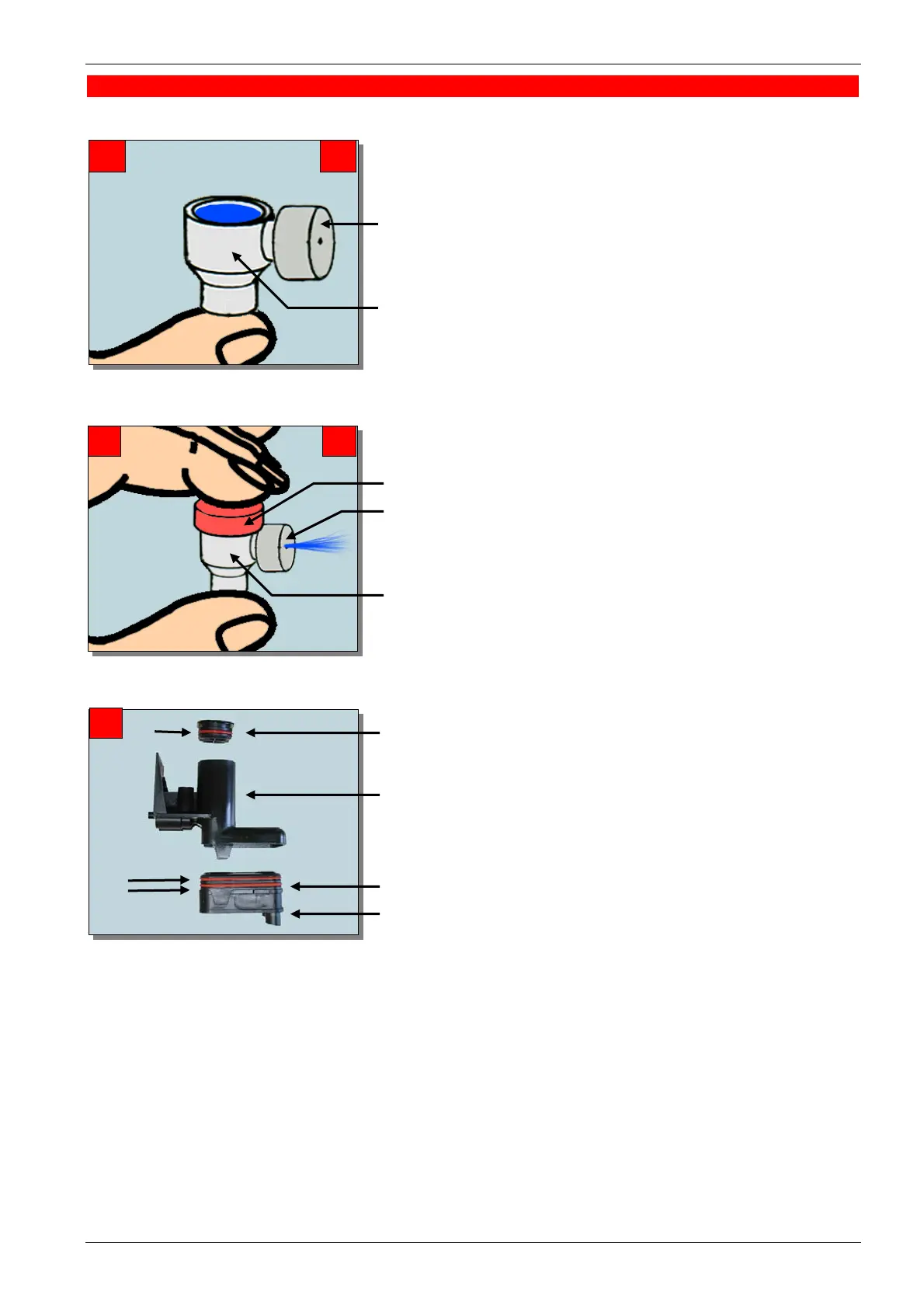

7.4 Place the baffle (b) on the expander (c).
7.5 Seal off the smaller opening on the ex-
pander (c) with your thumb.
7.6 Fill the expander with water.
7.7 Place the expander cover (a) on the ex-
pander (c).
7.7 Now press on the cover (a) with your finger:
A fine water jet will escape from the baffle’s
hole.
7.8 If this does not happen, clean the hole with
a fine solid object and repeat from step 7.4
to 7.7.
8.1 Dismantle the foamer head as shown in the
picture.
8.2 Clean the foamer head parts with a soft
brush under running water.
8.3 Check whether the packing rings (a and b)
are still intact.
8.4 Reassemble the foamer head.
8.5 Make sure you know where the outlet open-
ings are located on the foamer head’s lower
part!
Order number packing rings:
a: 063'499
b: 063'496
1 Foamer head cover
2 Foamer head’s middle part
3 Foamer head’s lower part
a Packing rings for foamer head’s cover
b Packing rings for foamer head’s lower part
c Outlet openings
7 .7
a
b
c
.4 7
c
b
8
a
b
1
2
3
c
ª
