Cleaning
Daily cleaning coffee machine with fridge
Page 5-8 BASO-2 - 01.05 - V07

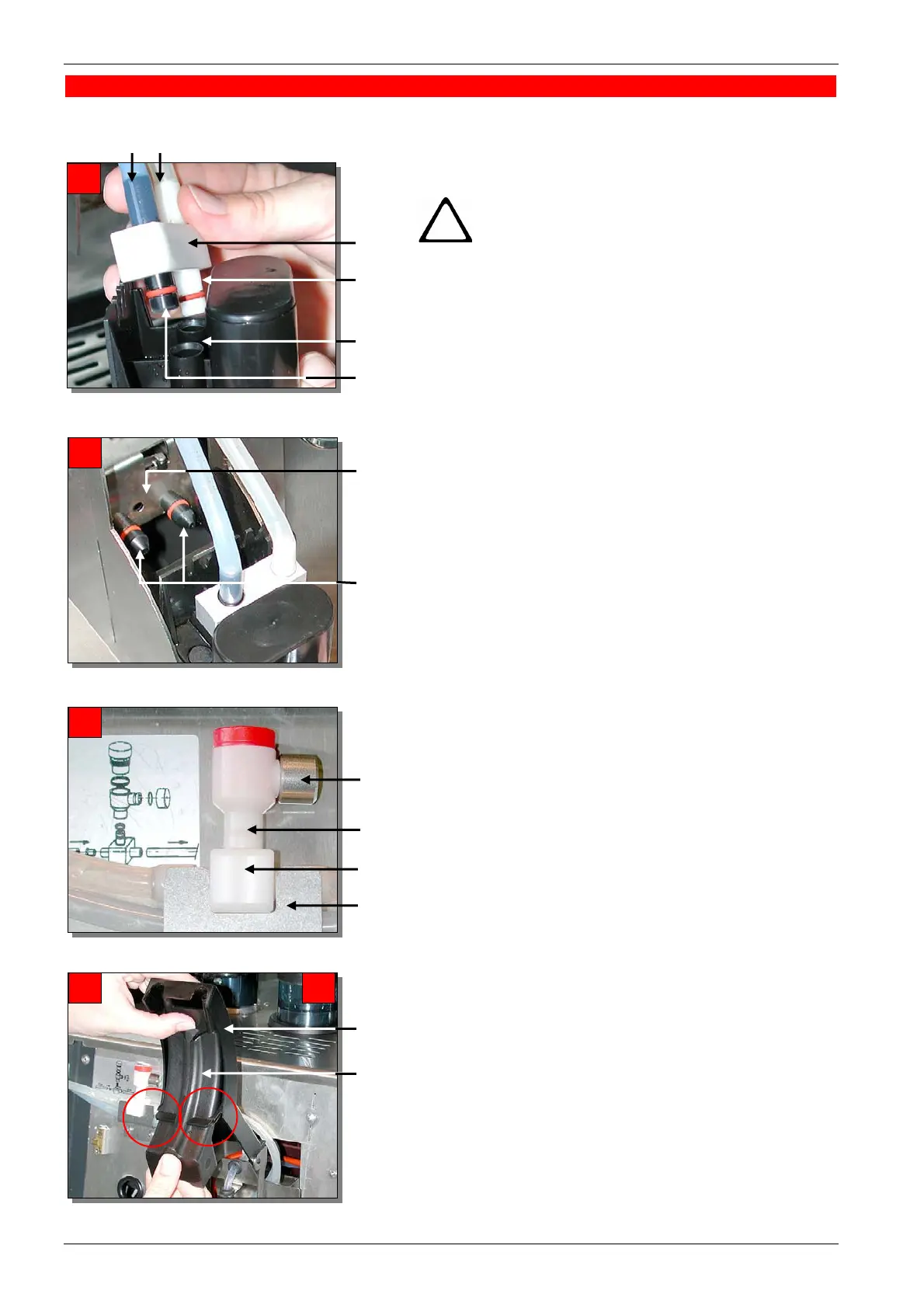

Attention!
Make sure that the tubes (a and b) and the tube
adapter’s plug-ins are connected according to
color as shown in the picture.
9. Put the tube adapter (c) back into the foamer
head (d).
10. Push the foamer head back on the two plug-
ins (a), until it reaches the stop plate (b).
11.1 Connect the expander (b) and the baffle (a)
with the T-piece (c).
11.2 Place the T-piece in the retainer (d).
12.1 Place the coffee outlet cup (b) in the outlet
cover (a). With one hand fix the coffee outlet
cup (b) to this position. Then move the cof-
fee outlet cup (b) with your other hand until
it …
12 .1
a
b
11
c
d
b
a
9
b (white) a (blue)
white
black
c
d
10
b
a
ª
