2 Introduction
2.3 External connections
AT-10 plus
Page 16
Art.-no.: 2.540043 Rev.: a

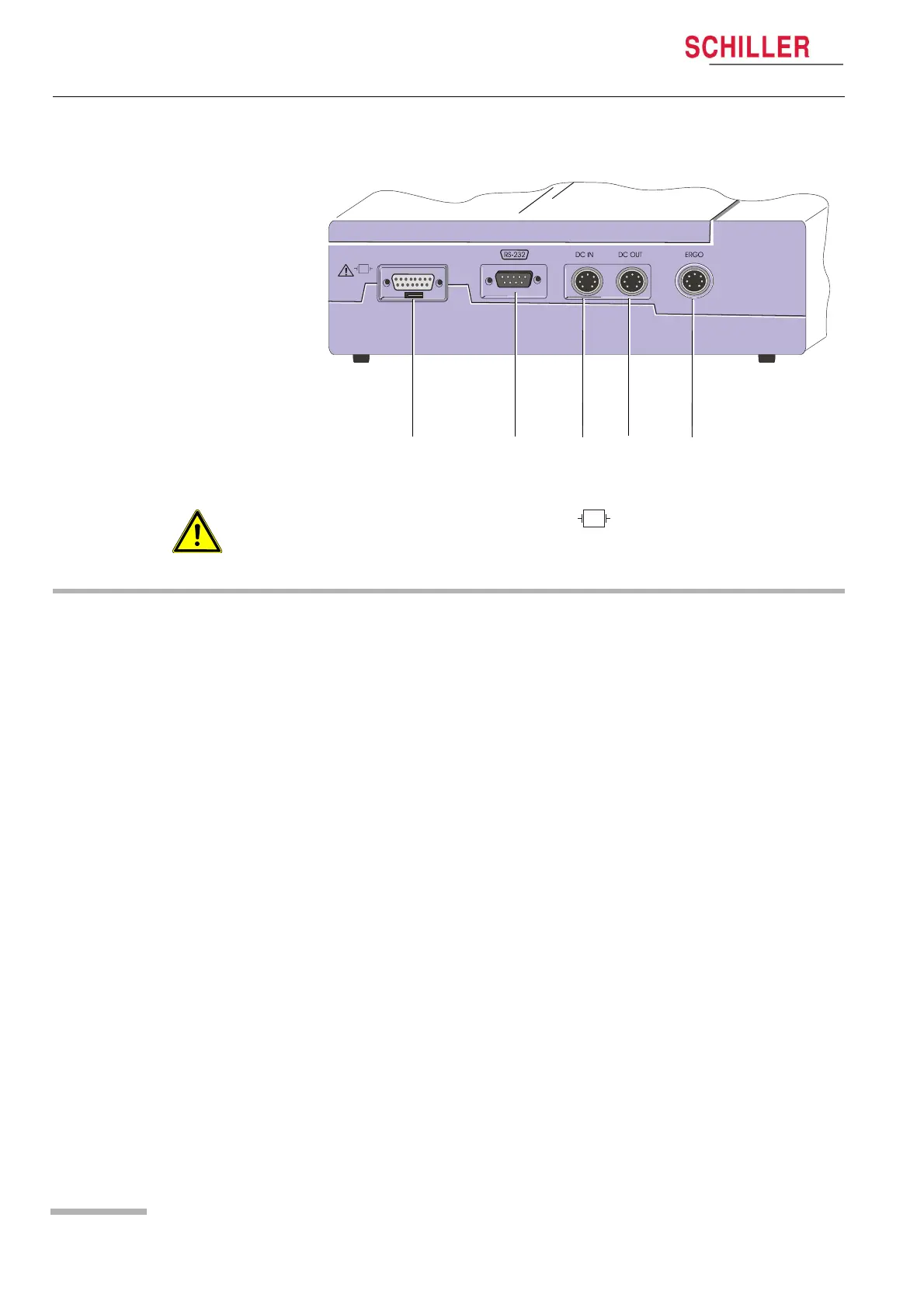

2.3.2 Side panel
(1) EKG/ECG patient cable input socket.
(2) RS-232 connector for pneumotach sensor (SP-250/SP-260) for pulmonary
function testing.
(3) DC input DCIN 1, 0.5 V/cm.
(4) DC output DCOUT, 0.5 V/cm.
(5) ERGO connector for connection of analogue ergometers.
1 2 354
• The patient cable and connector is CF rated, that is fully floating and isolated,
defibrillation protected, suitable for intra-cardiac application.
• The unit is only CF rated and defibrillation protected if used with the original
SCHILER patient cable.
©
