Construction Drawings 10
AT-10 plus Service Handbook Exploded views 10.1
Art.-no.: 2.540043 Rev.: a
10 Construction Drawings
10.1 Exploded views

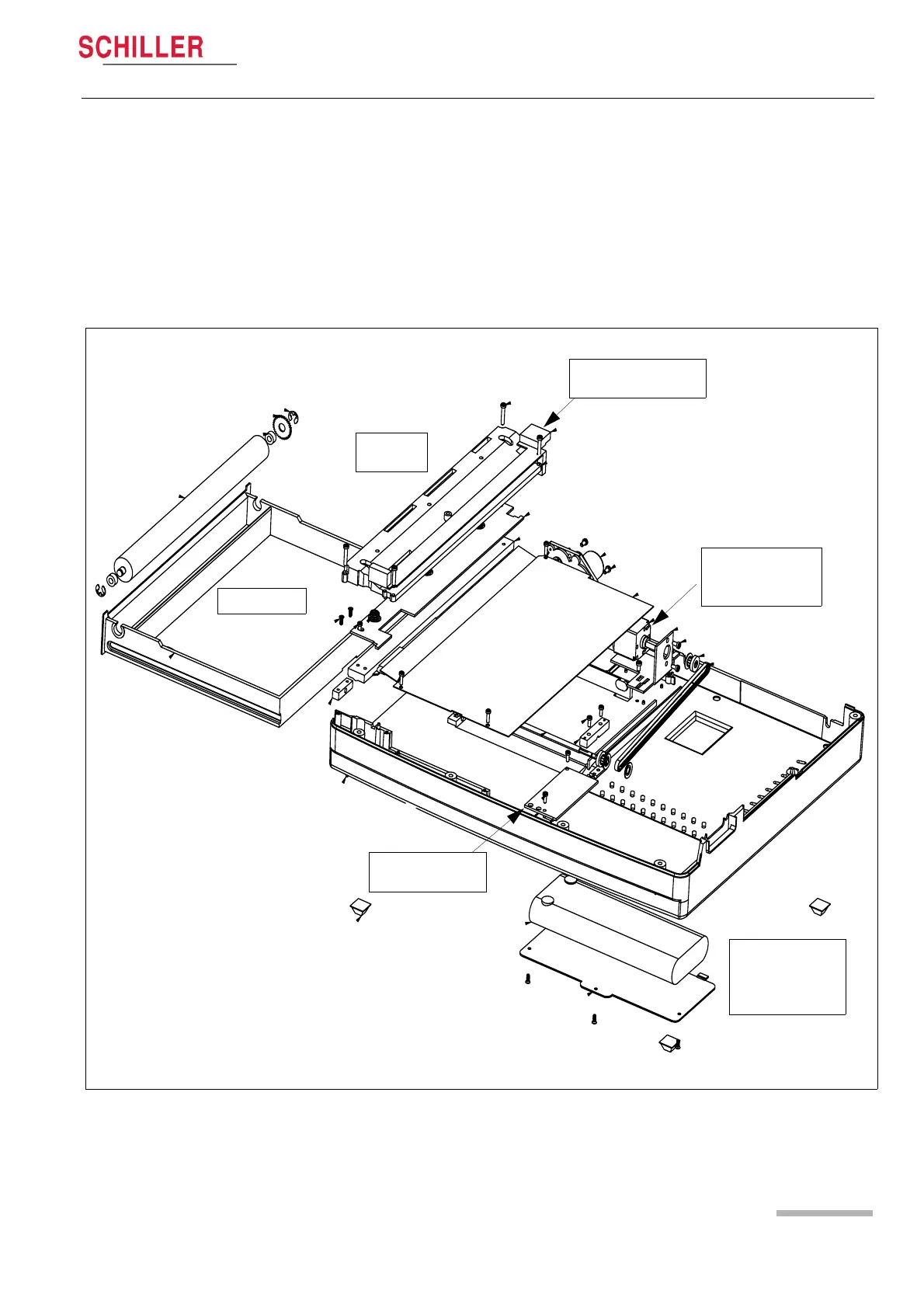

10.1.1 Base casing
Thermal
Printer
Battery Pack
Part No.
4.350027(NiMh)
4.350035 (Li)
Paper tray
DC motor Part No
4.330036
Battery Charge
Print MK 22-5
Paper Tray
Paper mark detector
MK 17-4
