10 Construction Drawings

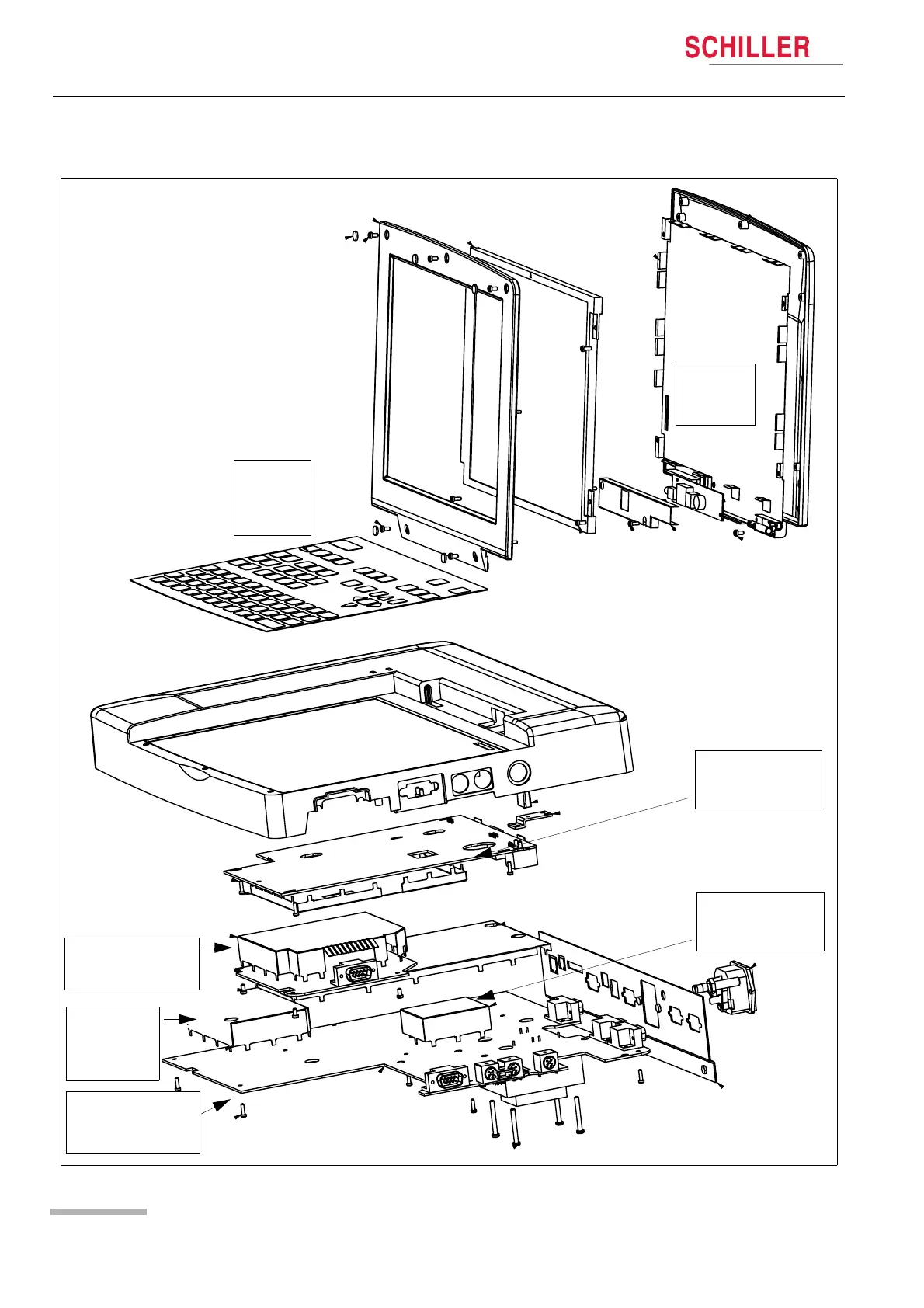

10.1 Exploded views
AT-10 plus
Page 64
Art.-no.: 2.540043 Rev.: a
10.1.2 Top and LCD casing
Keyboard
Foil
Part No.
4.450331
LCD
Part No
4.416126
ECG Print MK 22-2
Shield Part No.
4.416118
Main Board
(MIcroprocessor)
MK 22-2
DC/DC
Converter
Shield Part No.
4.416117
AC/DC Converter
Shield Part no.
4.416115
Communication
Module
