Assembly
12.00 | SWS | Assembly and Operating Manual | en | 389456
39

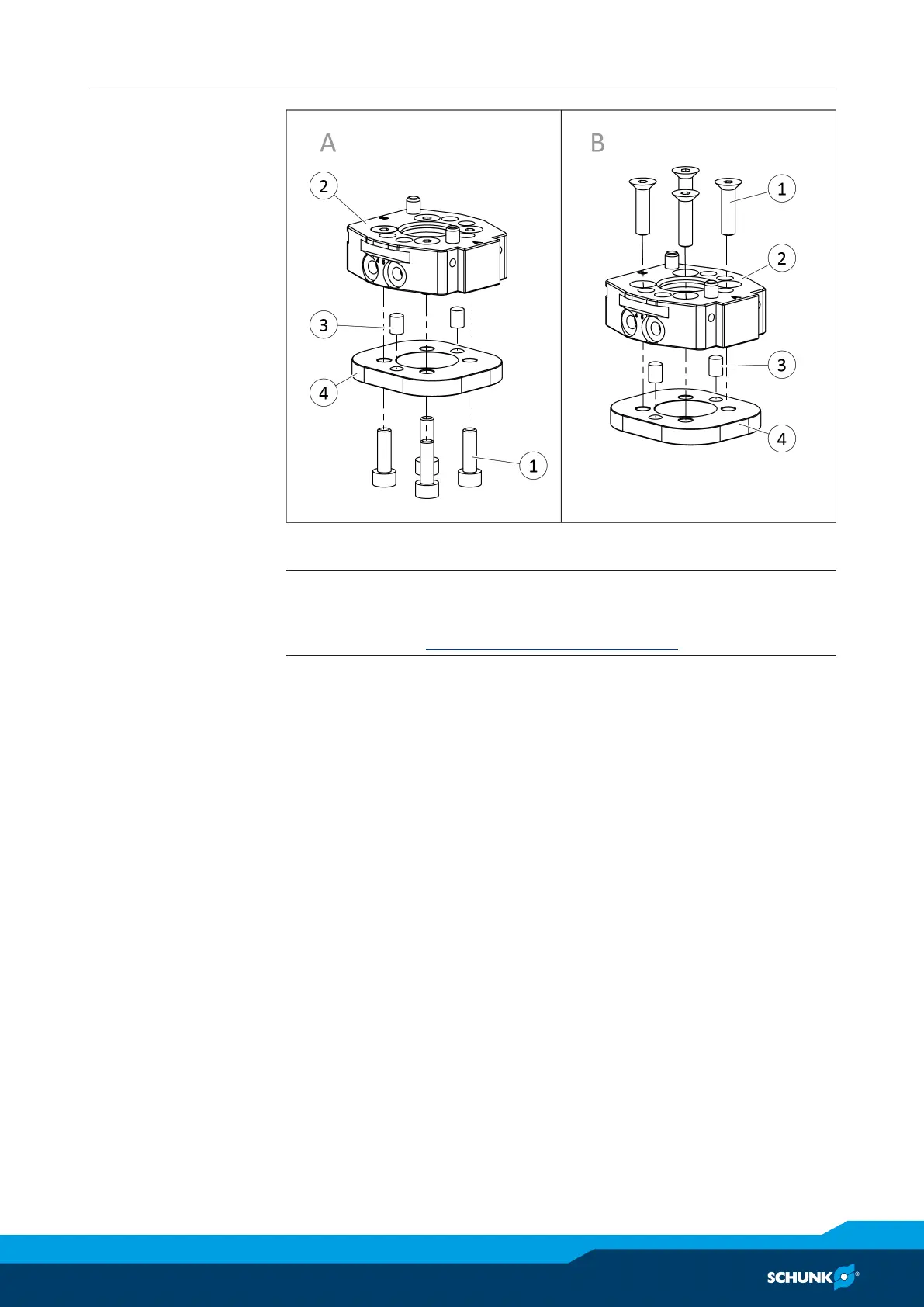

Mount adapter plate (shown as an example) to SWA 007 (A=mounting from below;
B=mounting from above)
NOTE
If the axial pneumatic feed-throughs are to be used on SWA007,
observe chapter Axial pneumatic feed-throughs [
}
62].
Ø Clean mounting patterns on SWA(2) and adapter plate(4).
Ø Insert the adapter plate(4) with two dowel pins(3) or one
dowel pin and a centering plate into the bores provided for this
purpose.
Ø Secure the adapter plate(4) to the SWA(2) from above or
below with screws(1).
Ø Mount the end effector.
