Assembly
12.00 | SWS | Assembly and Operating Manual | en | 389456
51

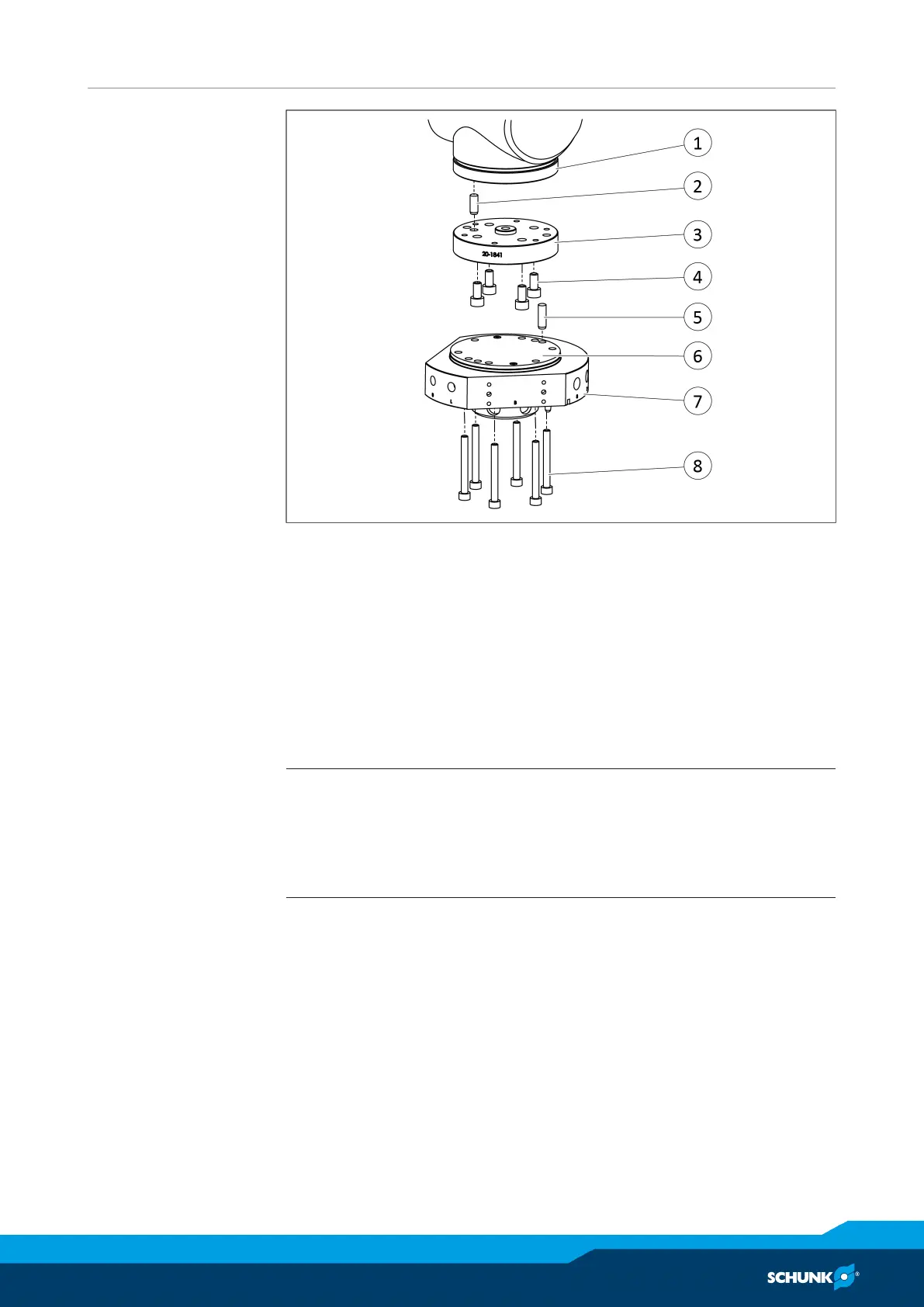

Mounting on robot for SWK071
Ø Clean the mounting patterns on the robot(1), adapter plate(3)
and SWK(7).
Ø Insert dowel pin(2) into adapter plate(3).
Ø Apply screw lock to screws(4).
Ø Insert the adapter plate(3) with dowel pin(2) into the bore on
the robot.
Ø Secure the adapter plate(3) to the robot(1) with screws(4).
✓ Observe the tightening torque for the mounting screws.
NOTE
Depending on the type of adapter plate(3), the SWK(7) is
mounted on the adapter plate with or without the cover plate(6).
If the adapter plate replaces the cover plate, the cover plate must
be removed.
Ø In the event that the cover plate(6) has to be removed: Loosen
screws(8) and remove cover plate(6) from the SWK(7).
IMPORTANT!Product may leak! When removing the cover
plate, ensure that the O-ring remains in the SWK
Ø Insert dowel pins(5) into SWK(6).
