Maintenance
12.00 | SWS | Assembly and Operating Manual | en | 389456
93
Clean SWS with a lint-free cloth

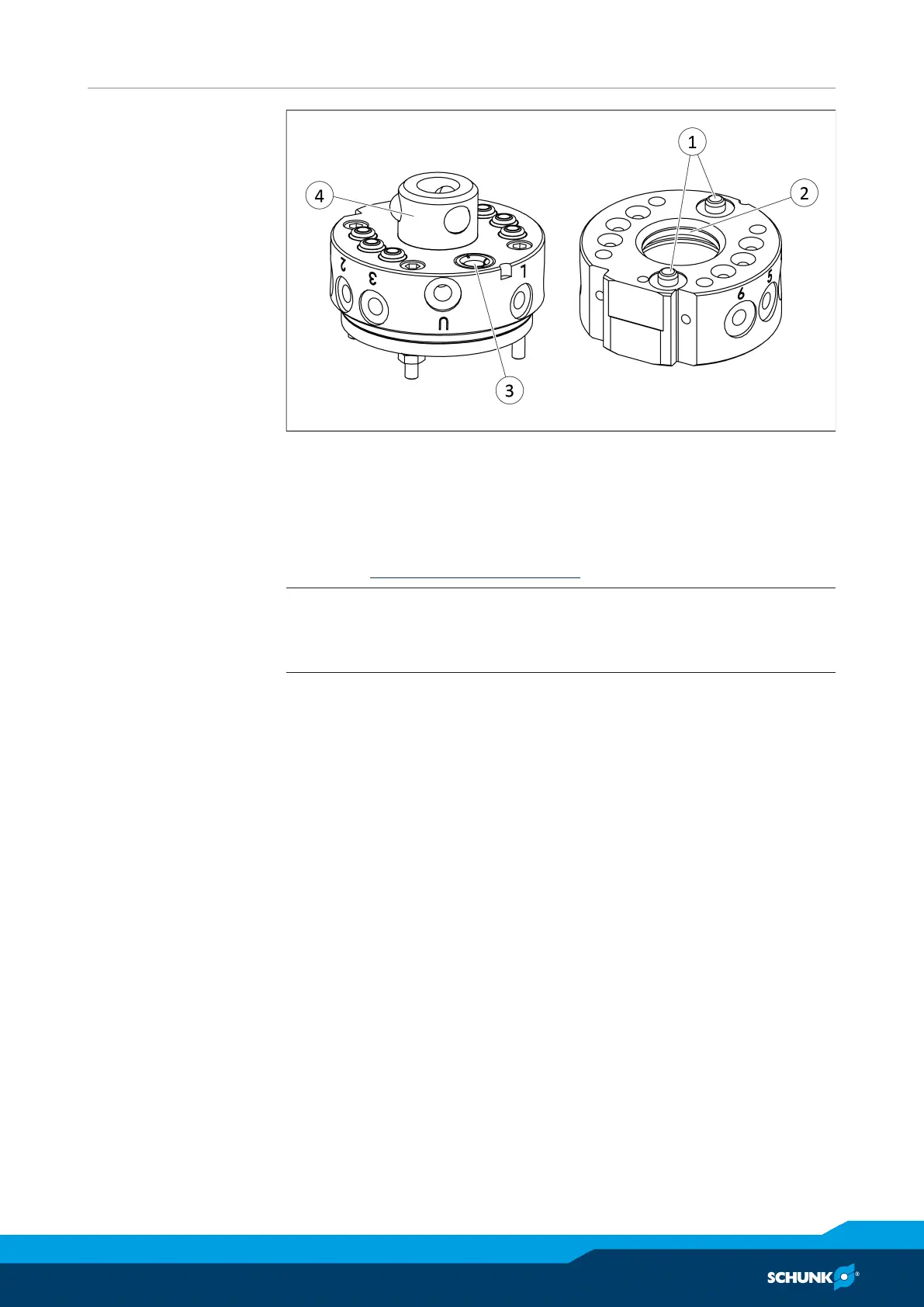

Ø Remove lubricant residues and dirt from the alignment pin(1),
bearing race(2), alignment pin bushings(3) and locking
mechanism(4).
Ø Generously lubricate the locking mechanism(4) and alignment
pin(1), Lubricants/greasing areas [
}
89].
NOTE
The alignment pin bushings and the bearing race are sufficiently
lubricated at the factory and do not need to be relubricated.
