92

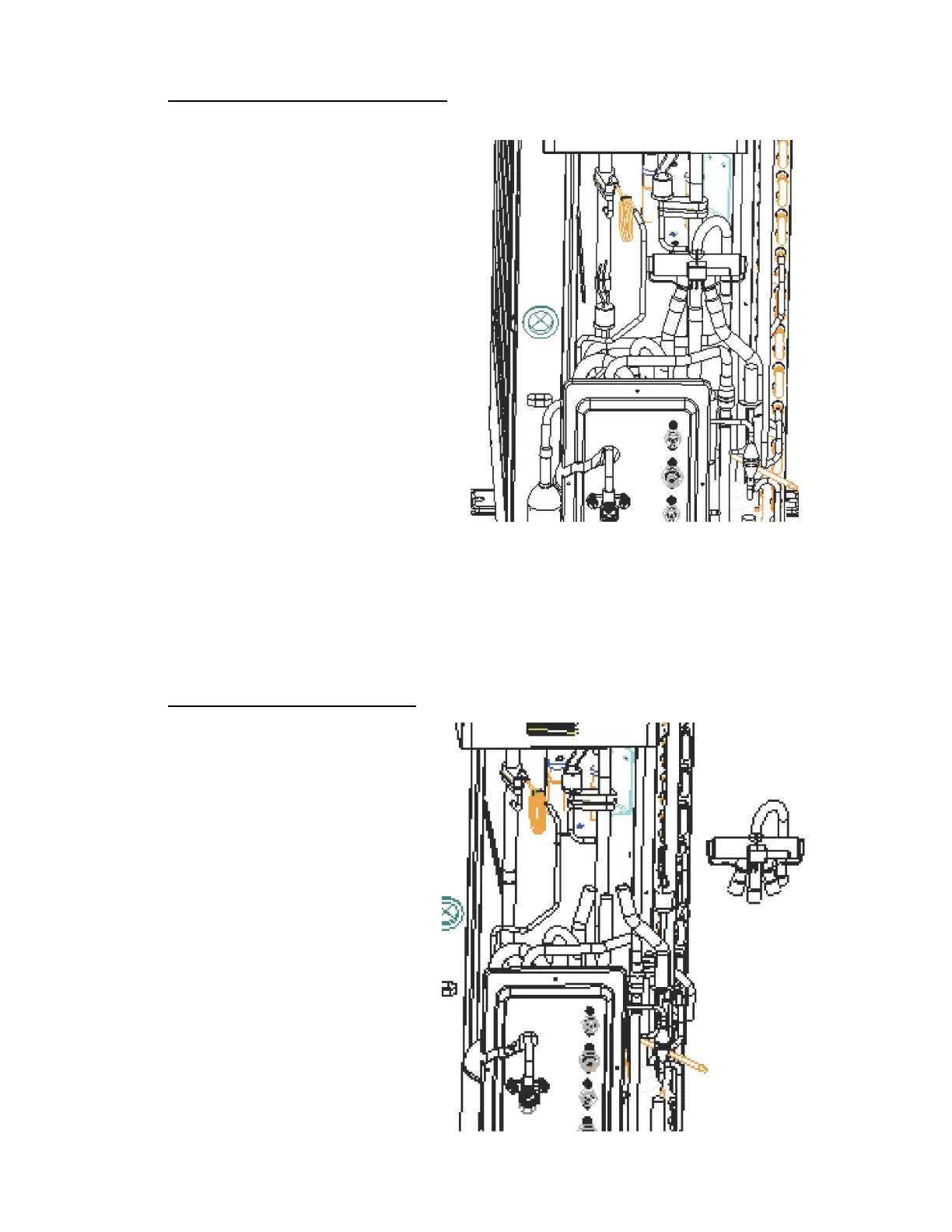

12.1.3.3 Disassembly and Reassembly of the 4-way Valve
Step 1: Remove the 4-way valve coil
Remove the screws on the 4-way valve
coil and then remove the 4-way valve
coil.
Step 2: Remove the 4-way valve
Unsolder the brazed joints connecting
the 4-way valve with the inlet and
outlet tubes. Then remove the 4-way
valve.
