12.1.2 Triple/Quad Port (SMZ24H46ZOGX/SMZ30H46ZOGX)

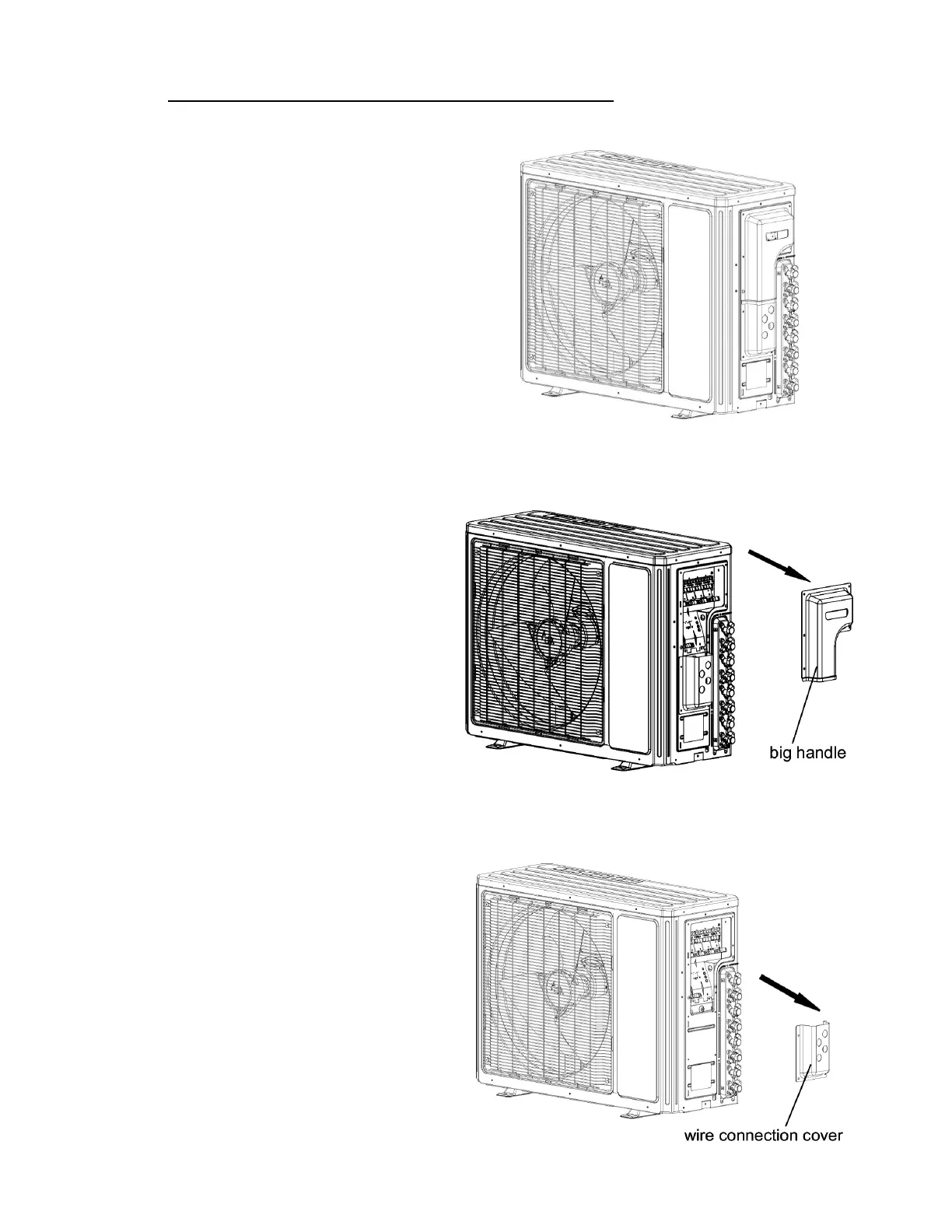

Step 1: Remove the big handle and wire connection cover
Before disassembly.
Remove the screws fixing the big handle and the
right side plate to remove the big handle.
Remove the screws fixing the wire connection
cover and right side plate to remove the wire
connection cover.
