8.6 Electrical Connection
GENERAL WARNINGS!
Electrical wiring and connections should be made by a qualified electrician in accordance with the
National and Local electrical codes and regulations.
The system must be properly grounded.
Voltage should not vary beyond ±10% of the rated voltage.
See the specifications page for proper wire sizes and circuit breaker sizes.
See diagrams on pages 18-20 for further wiring information.
8.6.1 Dual/Triple/Quad Port
Connecting the Cable to the Outdoor Unit
1. Remove cable knock-outs (a water tight cable strain relief or conduit is recommended
here).
2. Remove screws to take off side panel.
3. Feed cable wire through knock-out holes.
4. Connect the wires to the terminals.
5. Replace side panel with the screws.
6. Secure wire cables.

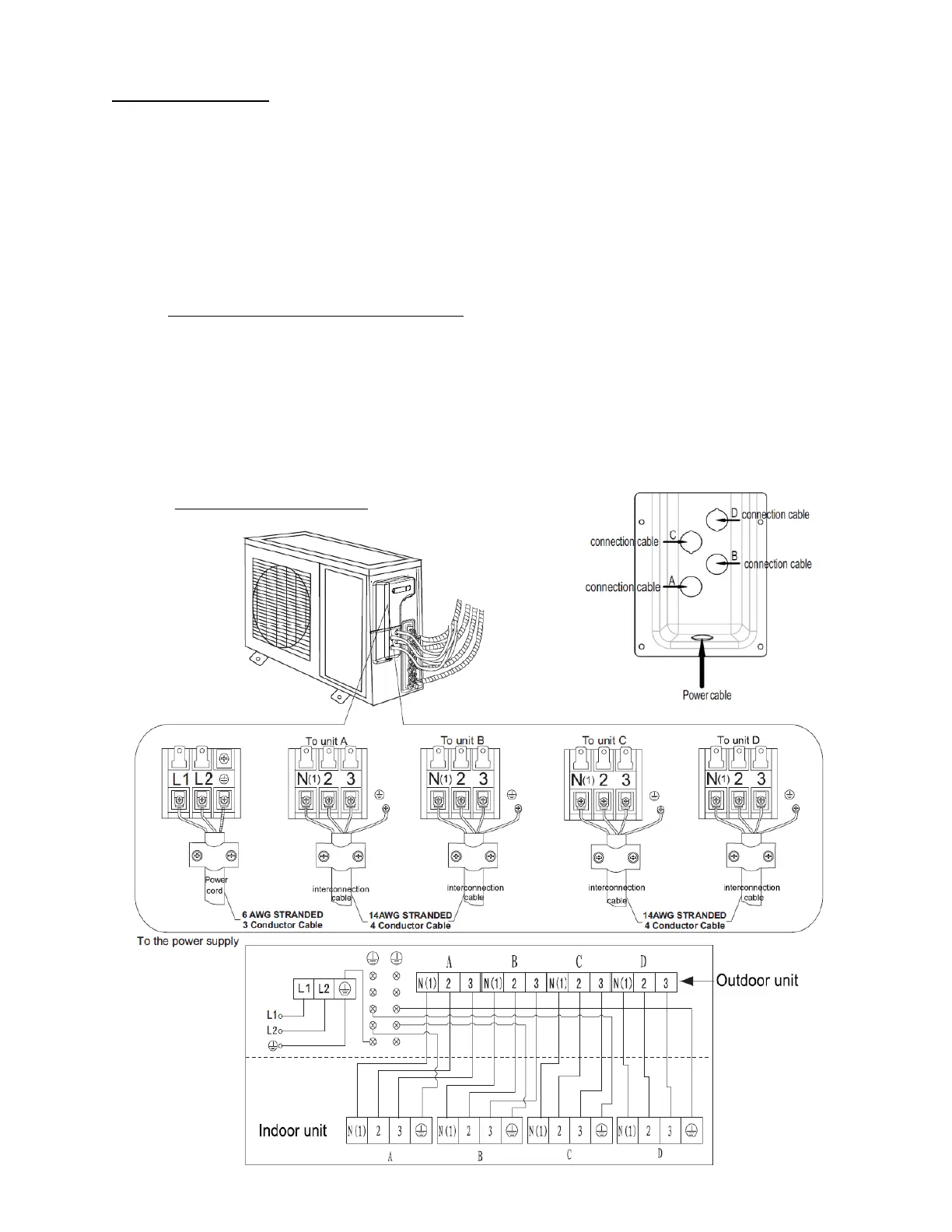

Typical Wiring Connections
