8.2 Placing the Outdoor Unit
GENERAL WARNINGS!
 Ensure the proper clearance and mounting requirements are met as shown.
 Ensure airflow from the inlet and outlet area of the outdoor unit is not obstructed.
 Make sure that there is enough space for care and maintenance.
 Ensure the installation area is level.
 Ensure unit is installed away from heat sources, leakages of inflammable, explosive substances, or
smog.

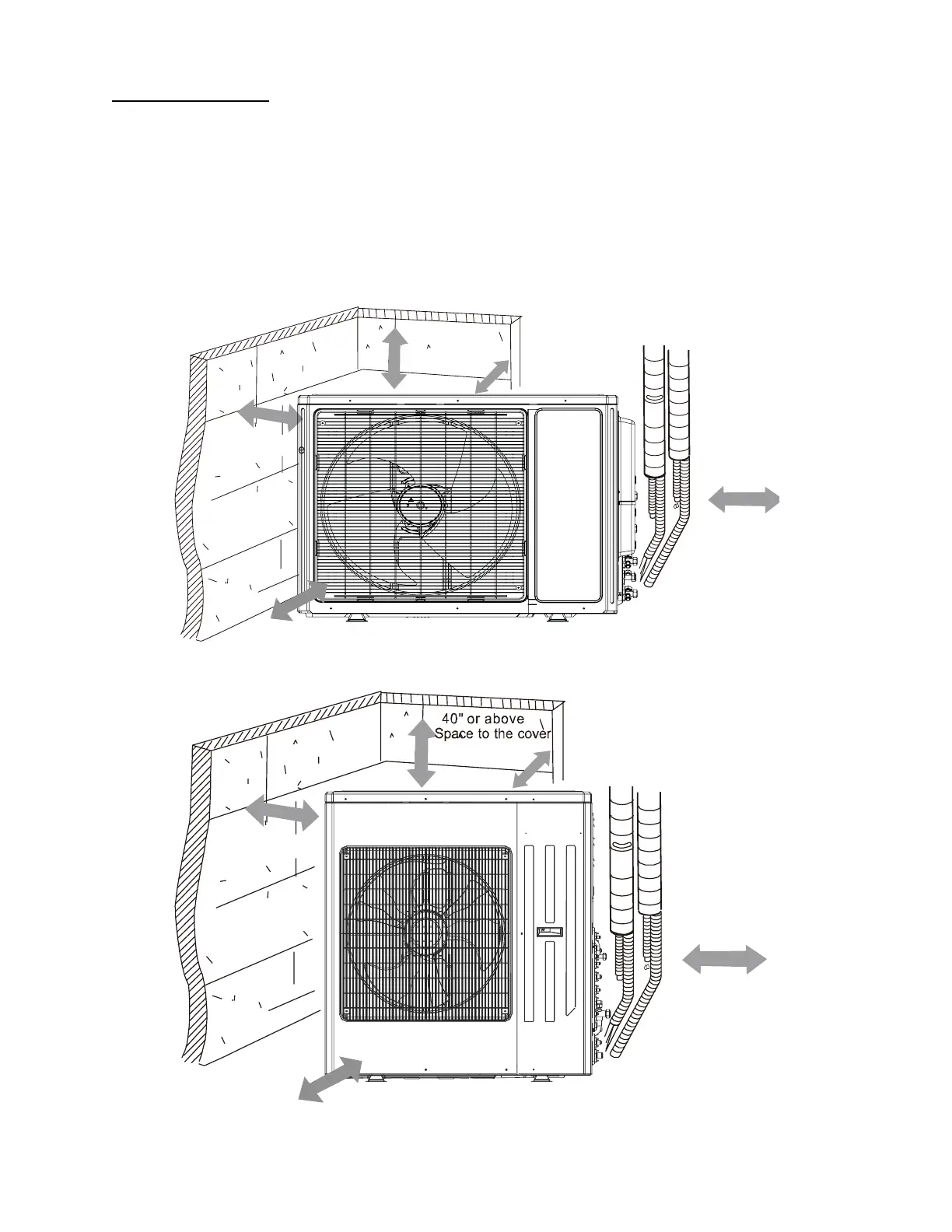

8.2.1 Dual/Triple/Quad Port
12" or above
Space to the cover
12" or above
20" or above
79" or above
(Air inlet side)
(Air outlet side)
20" or above
Space to the cover
8.2.2 Five Port
20" or above
Space to the cover
20" or above
20" or above
79" or above
(Air inlet side)
(Air outlet side)
