12.2.2 Console

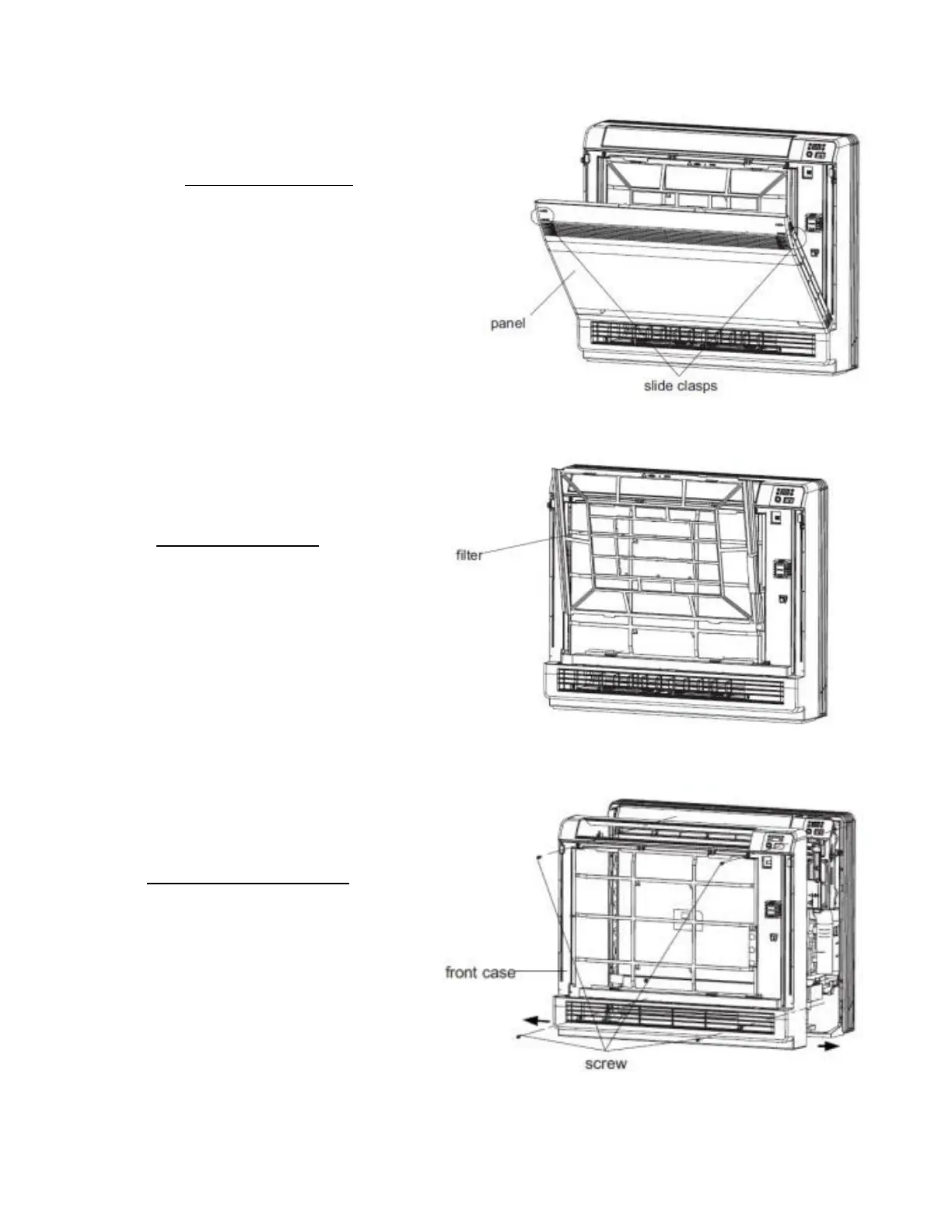

Step 1: Remove panel
Pull the slide clasps at both sides of the panel. Pull
the panel outwards, then lift up to remove the
panel.
Step 2: Remove filter
Loosen the clasp on the upper side of the
filter, then pull panel outwards to remove
it.
Step 3: Remove front case
Remove the tapping screws fixing the isolation
sheet, loosen the wire binds, and then pull out
the terminal. Lift to remove the electric box
subassembly.
