Seabreeze SHE9H4ZIGX - Cassette

3
3.1.3 Cassette
Model
Width
Height
Depth
SMZCA12H4ZIGX
1
st
Outline
1
st
Outline
1
st
Outline
SMZCA18H4ZIGX
SMZCA24H4ZIGX
2
nd
Outline
2
nd
Outline
2
nd
Outline
SMZCA12H4ZIGX & SMZCA18H4ZIGX
25.6"
22.44"
15.75"
22.44"
23.8" 25.6"
SMZCA24H4ZIGX

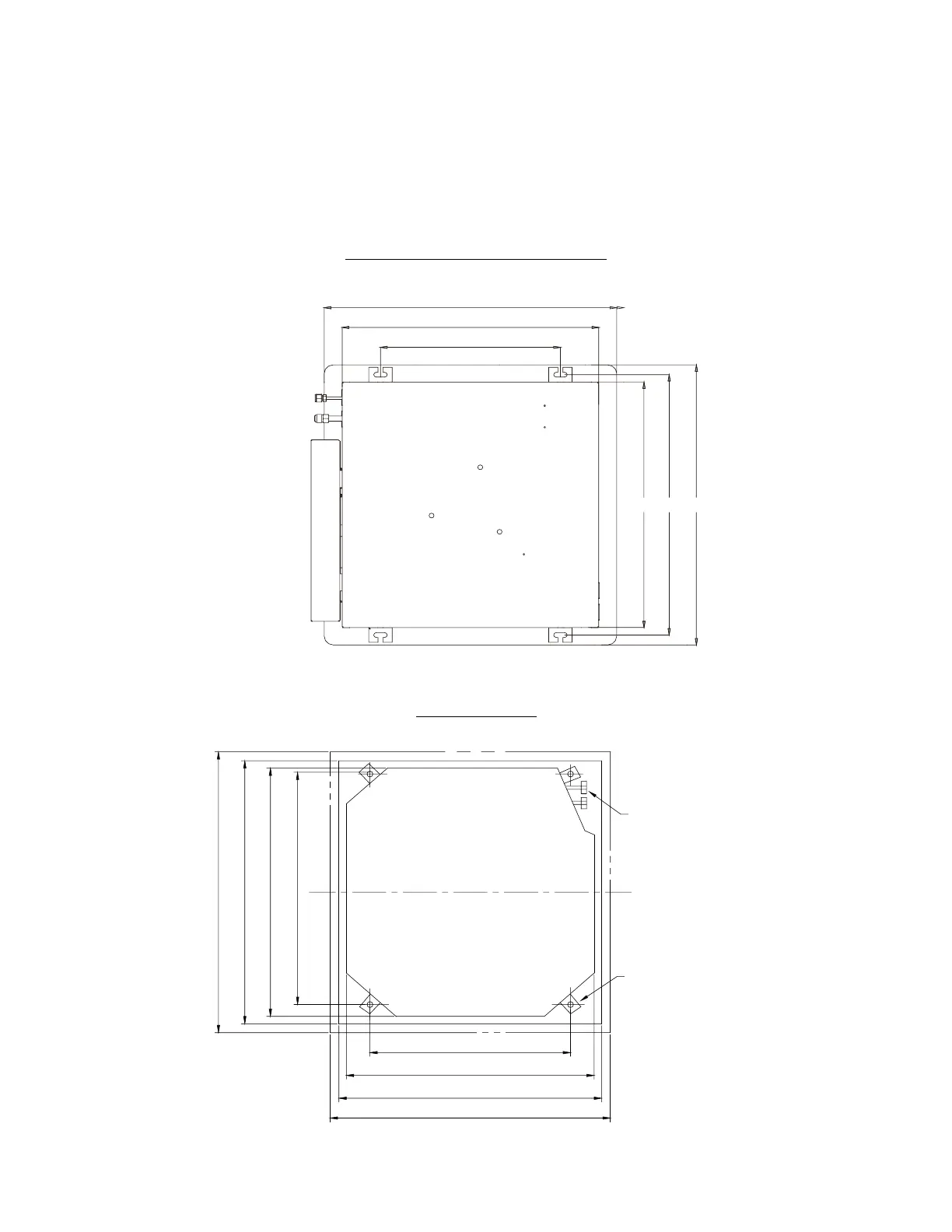

A
Refrigerant pipe
30.7" (Gaps between hoisting screw rods)
33.1" (Indoor unit)
35" * (Ceiling opening)
37.4" (Decorated surface boards)
Hoisting screws (4 pcs)
37.4" (Decorated surface boards)
35" * (Ceiling opening)
33.1" ( Indoor unit)
26.8" ( Gaps between hoisting screw rods)
