8.3 Maximum Line Length and Height
For best results, mount the outdoor unit as close as possible to the indoor units. Check the maximum
line length specifications before mounting. The maximum line length must not be exceeded!
Dual/Quad Port Outdoor Units (18K, 24K & 30K)
Description
Dual Port Outdoor Unit
Triple/Quad Port Outdoor Unit
Max length for any indoor unit
32.8’
65.6’
Max height for each indoor and outdoor unit
16.4’
32.8’
Max total length
65.6’
229.7’
Five Port Outdoor Units (42K)
Description
Connection Length
Quad Port Outdoor Unit
Max length for any indoor unit
LX
82’
Max height for each indoor and outdoor unit
H1
49’
Max height difference between indoor units
H2
24.6’
Max total length
L1 + L2 + L3 + L4 + L5
262.5’

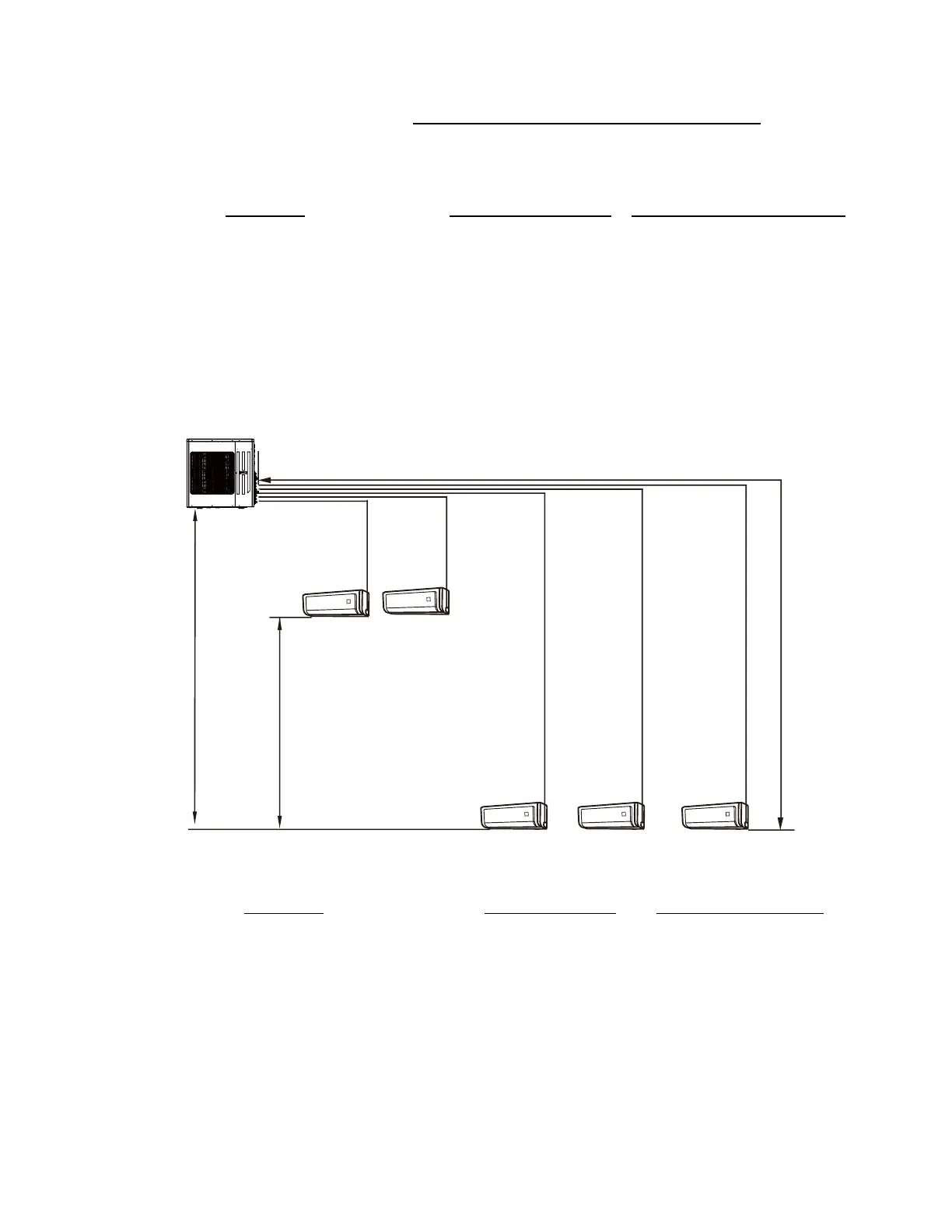

ba
e
d
c
L4L3L2 L5L1
Outdoorunit
Height difference between indoor unit and outdoor unit H1
Height difference between indoor units H2
Indoor unit
Indoor unit
Equivalent length of the farthest fitting pipe Lx
