6. Wiring Diagram
NOTE: The wiring diagrams shown are subject to change without notice. Please refer to the one
supplied with the unit for the most accurate information.
6.1 Indoor Units
6.1.1 Wall Mounted
Model
Capacity (BTU)
SHE9H4ZIGX
9,000
SHE12H4ZIGX
12,000
SHE18H4ZIGX
18,000
Model
Capacity (BTU)
SHE9H4ZIGB
9,000
SHE12H4ZIGB
12,000
13

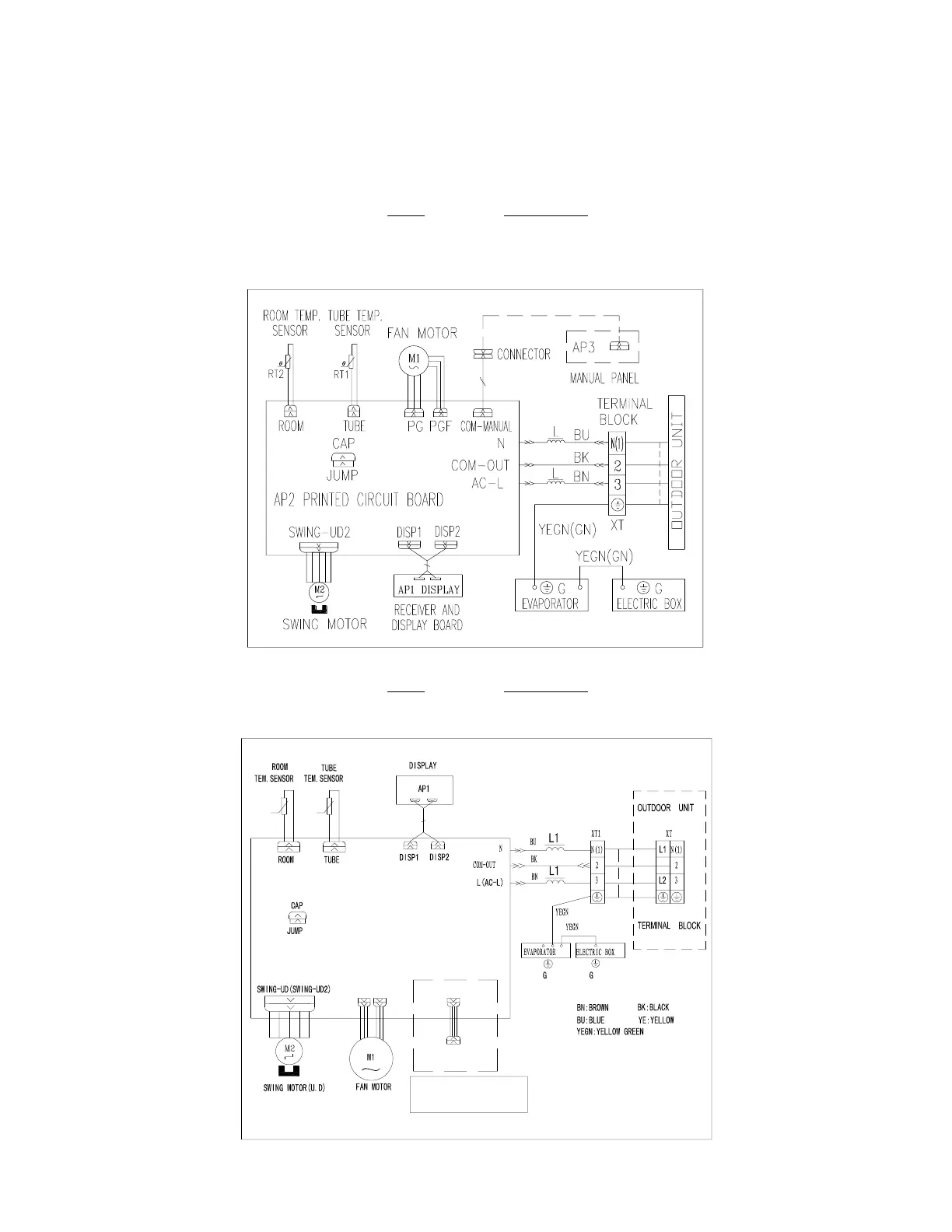

INDOOR UNIT
PGF
PG
AP2
RT2RT1
θθ
CON-MANUAL
WIRED
CONTROLLER
WIRED CONTROLLER
IS OPTIONAL.
