101

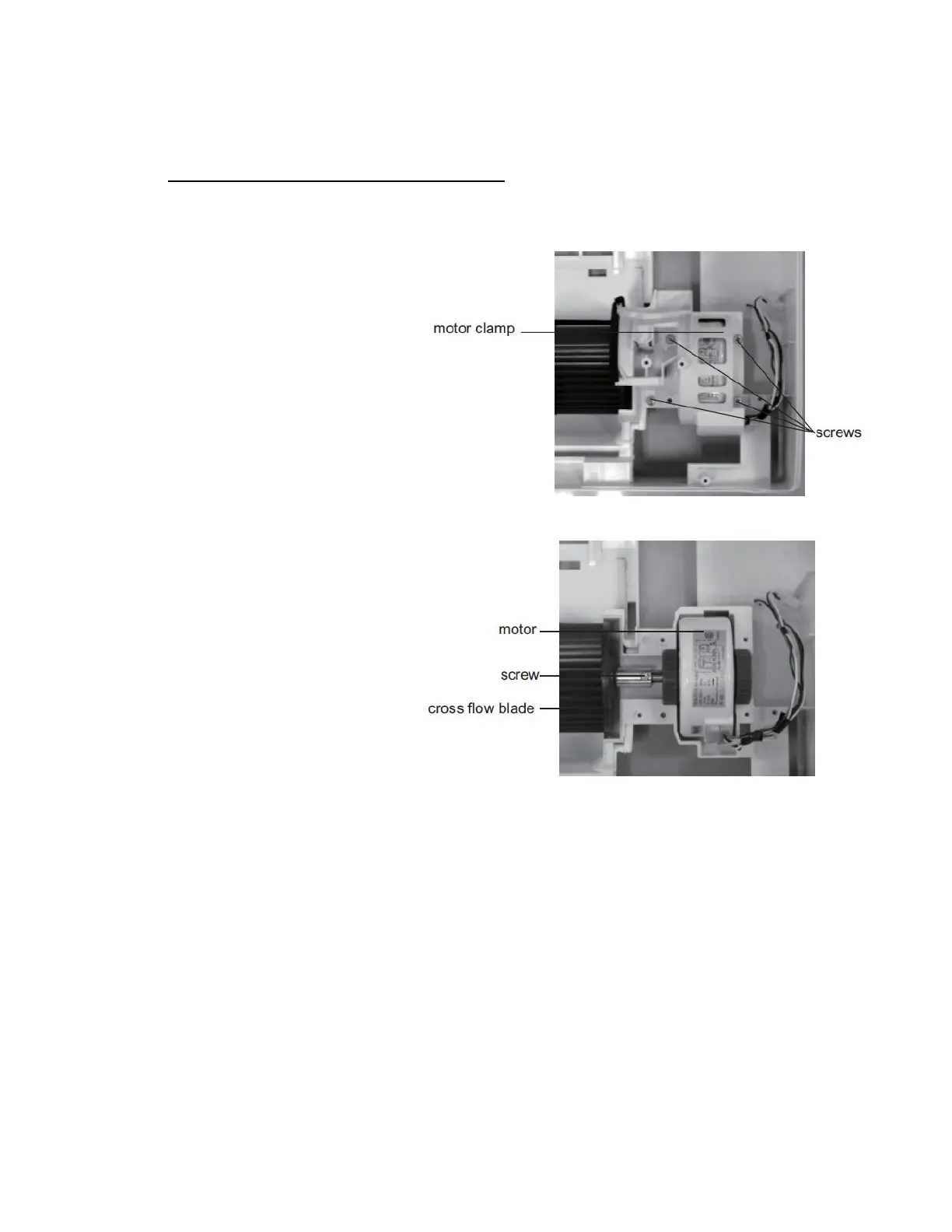

Step 8: Remove motor and cross flow blade

Remove the screws fixing the motor clamp

and then remove the clamp. Remove

connection screws between the motor and

cross flow blade to remove the components.
