75

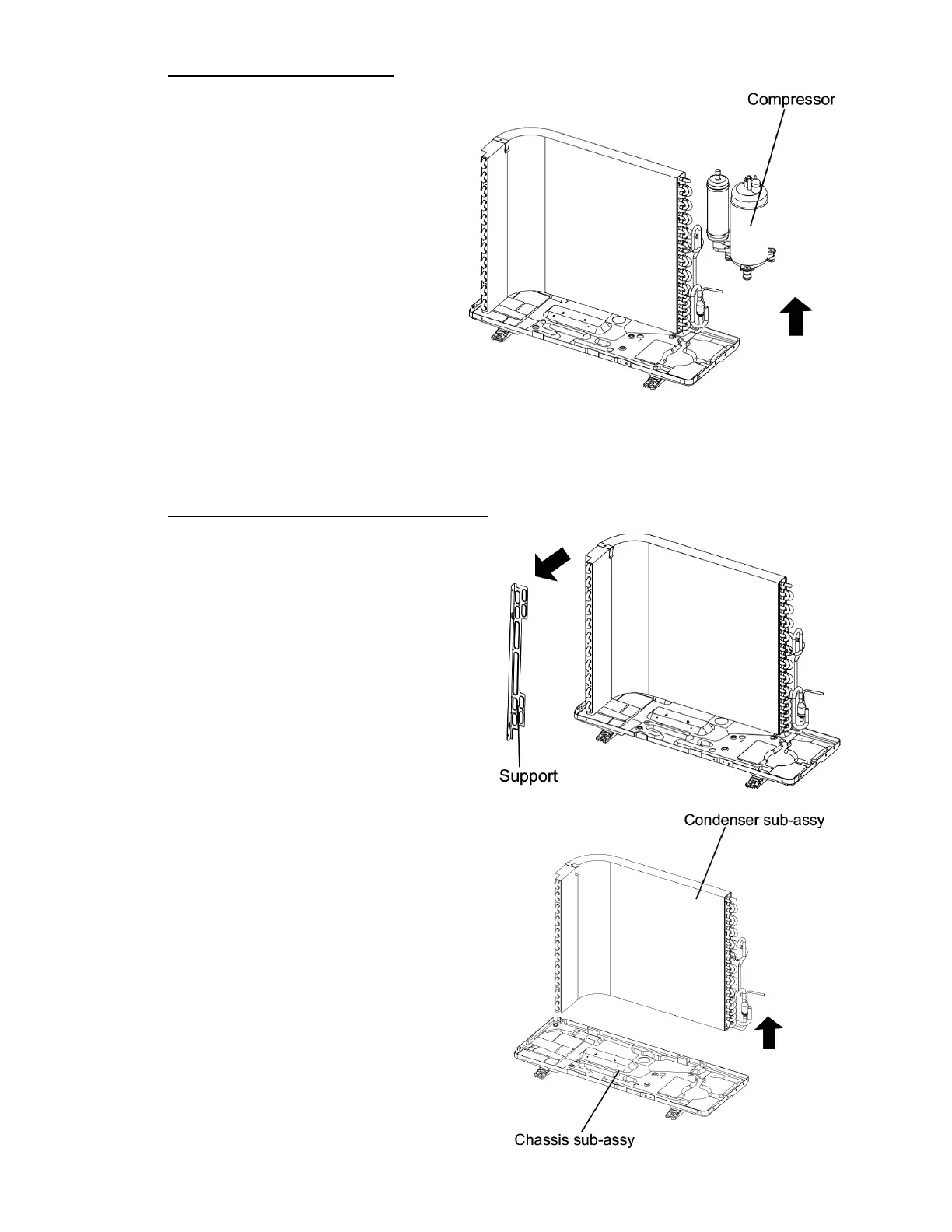

Step 12: Remove compressor
Twist off the three foot nuts on the
compressor and then remove the compressor.
Step 13: Remove condenser subassembly
Remove the nuts fixing the blade and then remove
the axial flow fan.
.
Remove the four (4) tapping screws fixing the
motor. Disconnect the leading wire insert of the
motor and then remove the motor. Remove the
two (2) tapping screws fixing the motor support
and then pull the motor support upwards to
remove it.
