Seabreeze SHE9H4ZIGX - Specifications; Indoor Units; Wall Mounted A

110
12.2.3.2 Disassembly and Reassembly of Drainage Pump

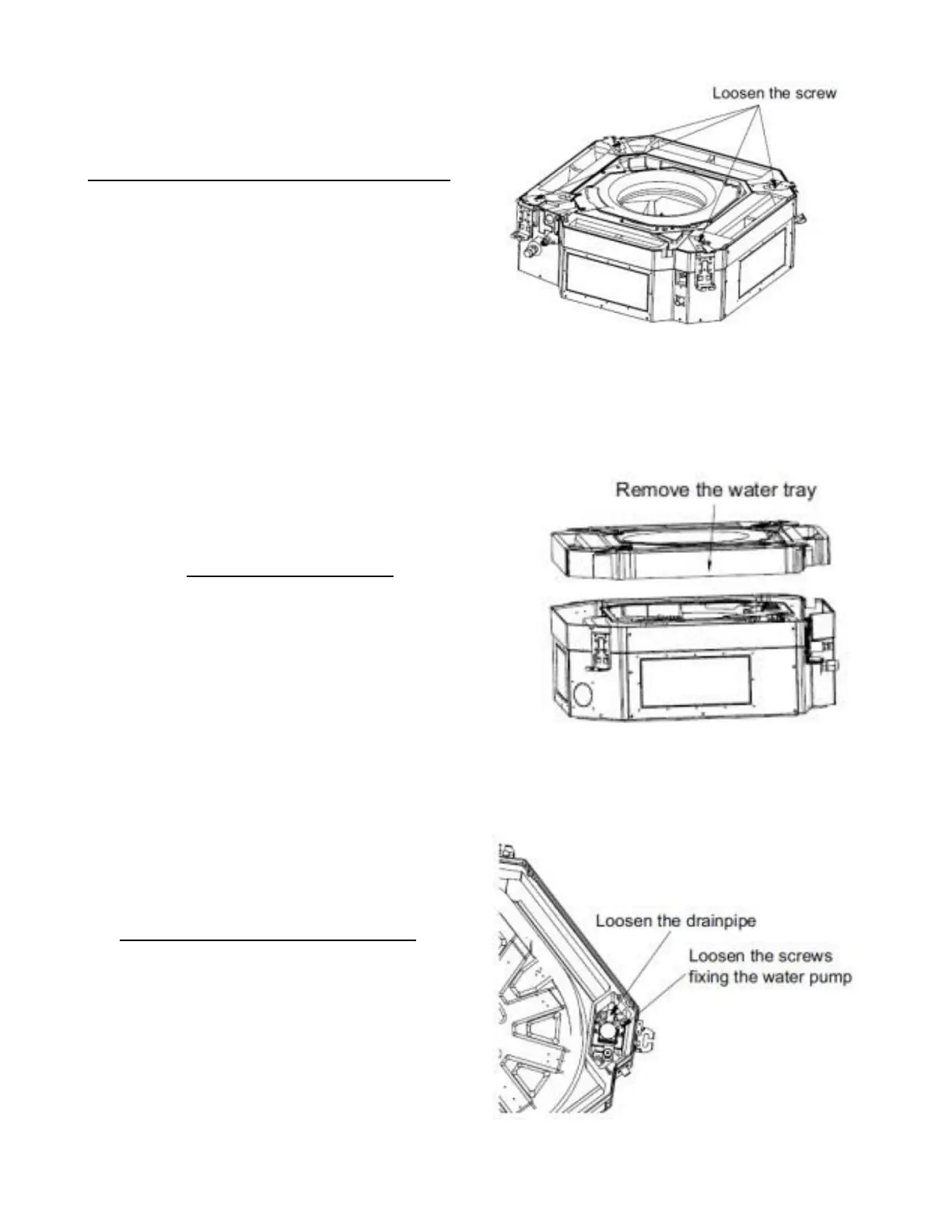

Step 1: Loosen the screws fixing the water tray
Use a screwdriver to loosen the screws that hold the
water tray in place.
Step 2: Remove water tray
Remove the water tray by lifting it off of the rest of the
unit.
Step 3: Loosen screws fixing the pump
Pull out the water outlet pipe and loosen the screws
fixing the water pump.
