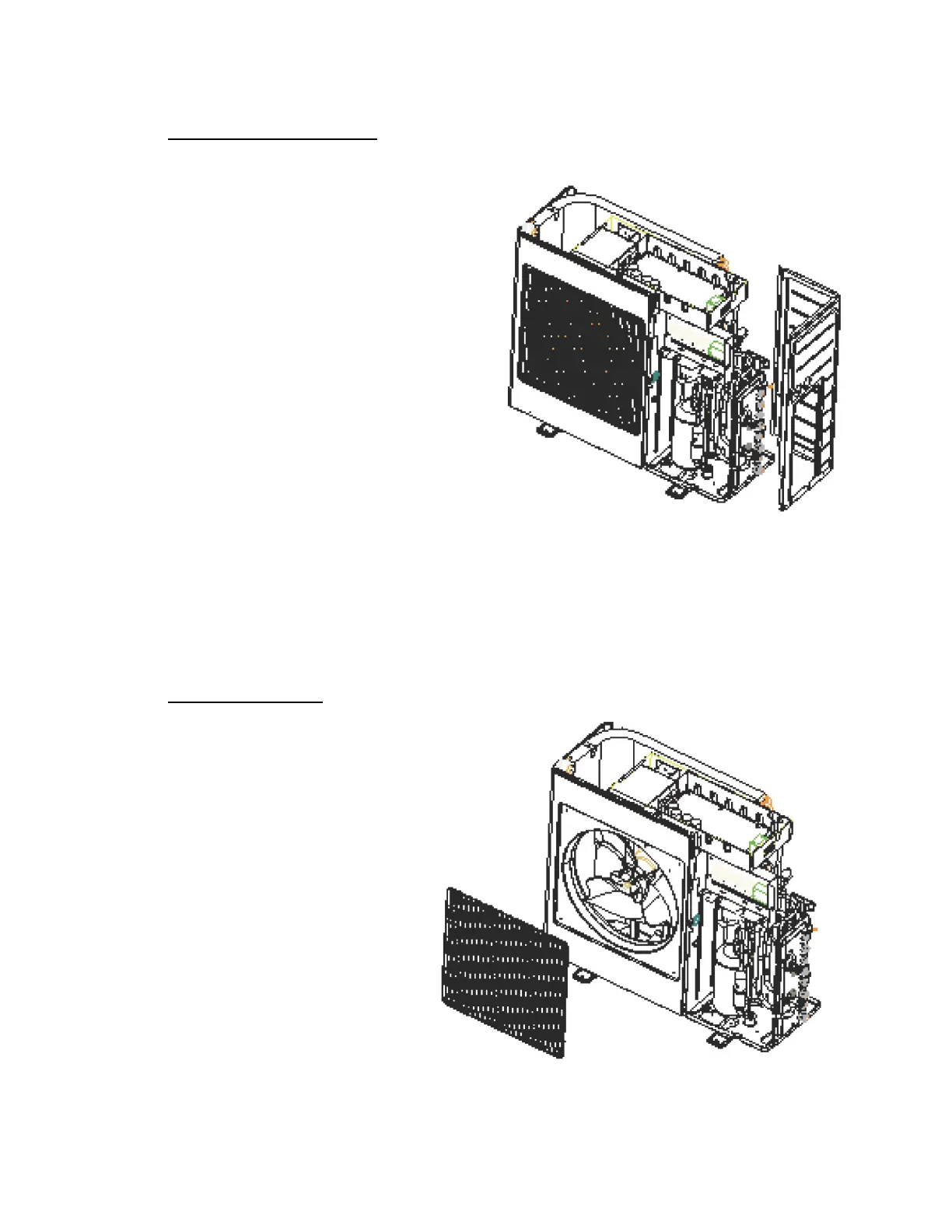

Step 3: Remove right panel

Remove the screws on the panel by using a

screwdriver. Then remove the panel on the right

side.

Step 4: Remove grill

Remove the screws on the grill by using

a screwdriver. Then remove the grill.
