12.1.3.2 Disassembly and Reassembly of the Compressor
NOTE: Make sure system is disconnected from power and all refrigerant is recovered from system.

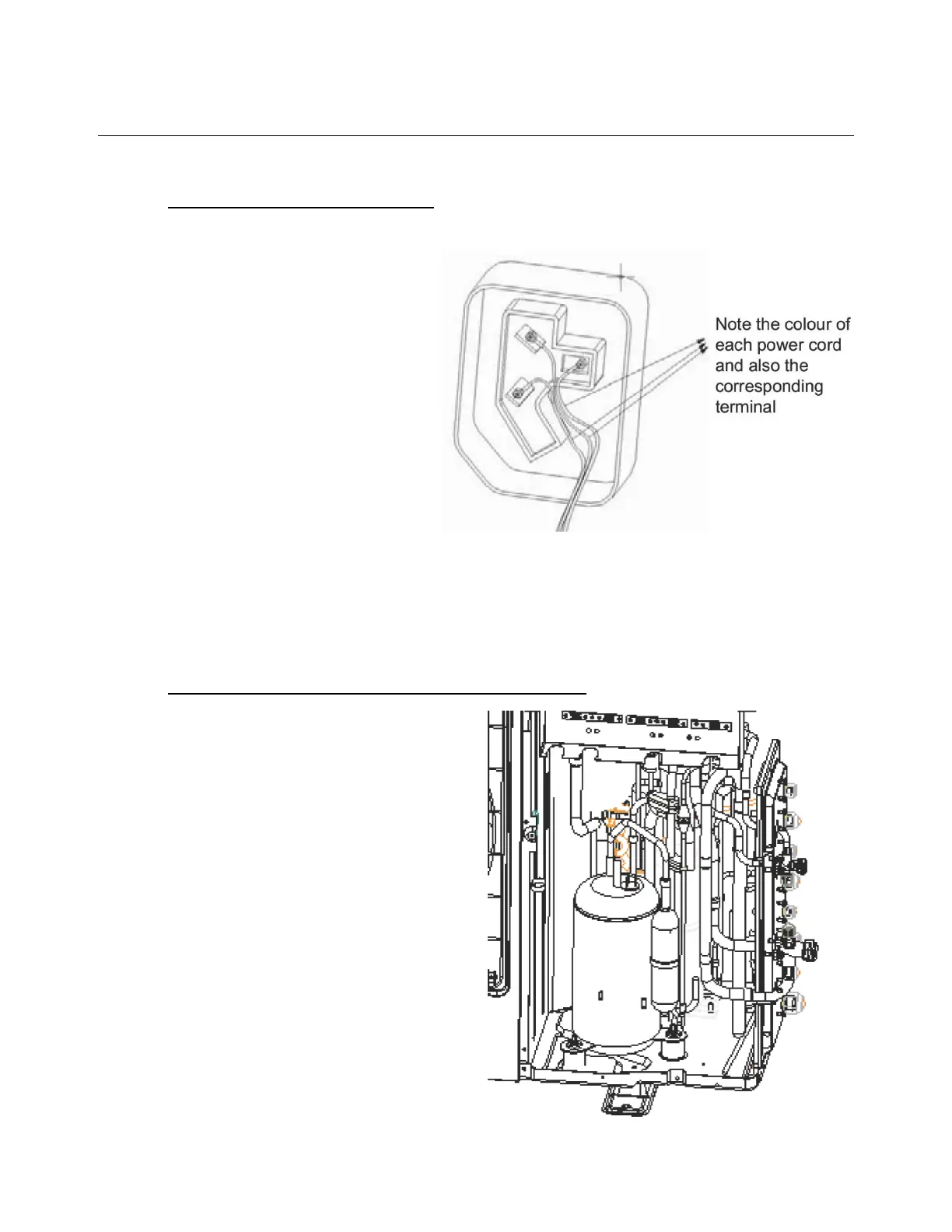

Step 1: Disconnect the power cord
Remove the fixed screws on the power cord
by using a screwdriver. Remove the power
cord.
NOTE: Please note the color of each power
cord and also the corresponding terminal
number when removing the power cord in
case of misconnection.
Step 2: Remove the pipeline connected to compressor
Unsolder the brazed joints connecting the
refrigerant tubing and the compressor (inlet
and outlet). Then remove the pipe
subassembly.
