3.8.1.4 Latching of a DiggiMEC-LED with an Assigned Trip Signal
Special case: Whenever a trip signal is assigned to a LEDx, the corresponding pickup
signal gets assigned as well, with the following behavior:
• When the corresponding pickup signal occurs, the LEDx starts blinking.•
With latching, this continues until a reset is done or until the assigned trip signal
occurs. (Reset: See ╚═▷ “2.11 Reset”.)
•
When the assigned trip signal occurs, the LEDx is lit.
•
With latching, this continues until a reset is done. (Reset: See ╚═▷ “2.11 Reset”.)
• Moreover, there is the following additional behavior with latching:•
When a pickup – without a trip – occurs and drops o󰊞 again, the LEDx starts 󰊠ashing
(with 󰊠ashing pattern OFF : ON ≈ 10 : 1).

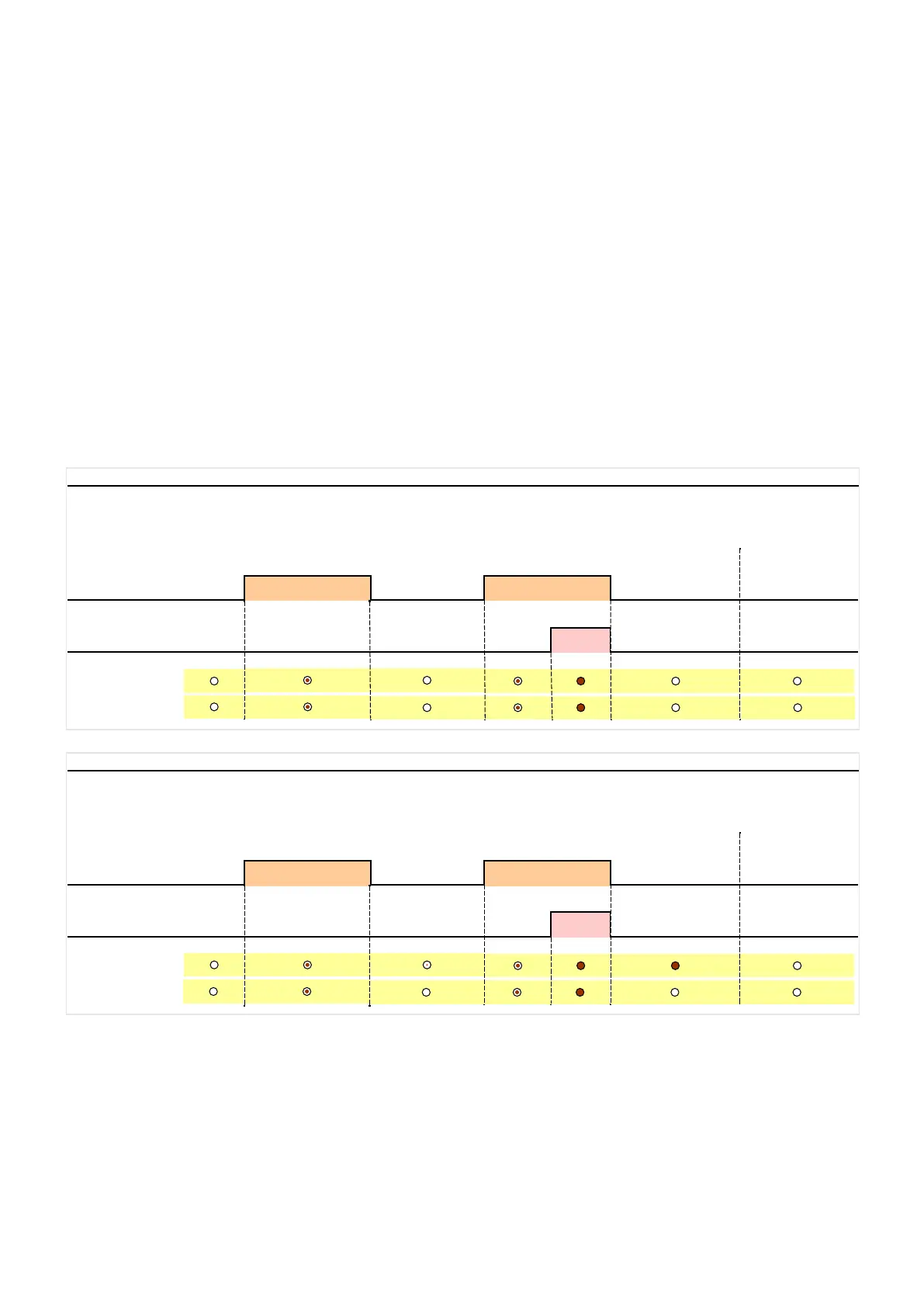

LEDs
wiLED_Y01
✳
✳
Settings:
DiggiMEC . LED2 assign. = I> . Trip
DiggiMEC . LED2 latching = No latching
I> . Trip
I> . Pickup
Reset
✳
DiggiMEC-LED 2:
WIC1-Trip-LED:
✳
✳
✳
DiggiMEC-LEDs
wiLED_Y02
✴✳
✳
Settings:
DiggiMEC . LED2 assign. = I> . Trip
DiggiMEC . LED2 latching = With latching
I> . Trip
I> . Pickup
Reset
✳
✳
WIC1-Trip-LED:
✳
✳
✳
DiggiMEC-LED 2:
98 WIC1 WIC1-1.0-EN-MAN
3 Hardware
3.8.1.4 Latching of a DiggiMEC-LED with an Assigned Trip Signal
